Product model:TP2143

Product category:Two expansion wall-mounted chassis

Product Introduction:

TP2143 wall-mounted industrial control chassis is made of 1.0mm SGCC high-quality board. The chassis size is 235mm(L)*220mm(W)*140mm(H). It supports 6.7"*6.7" (Mini-ITX) motherboard and supp

Application field:

Overview
Technical Parameter
Dimension
Data download

Overview

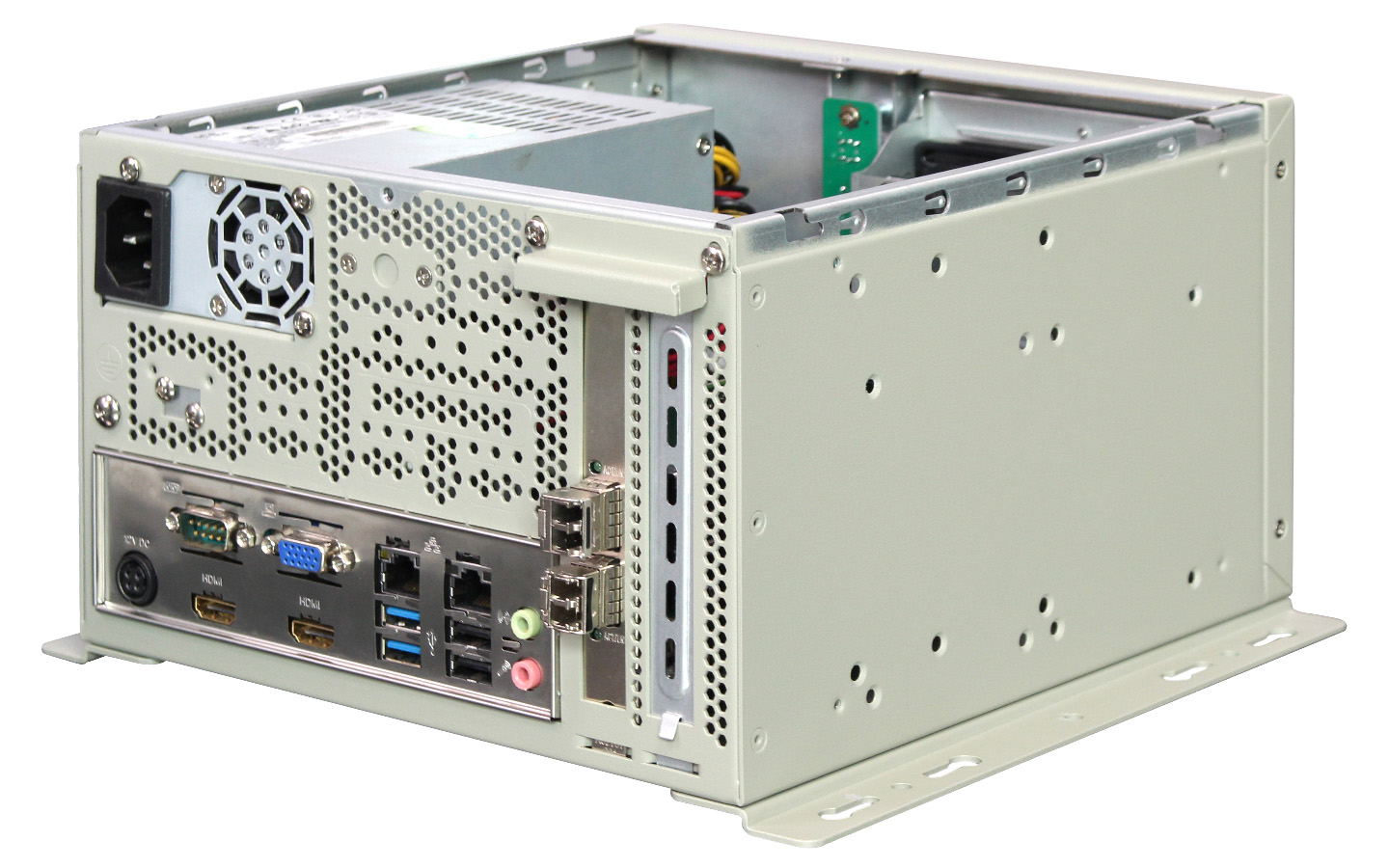

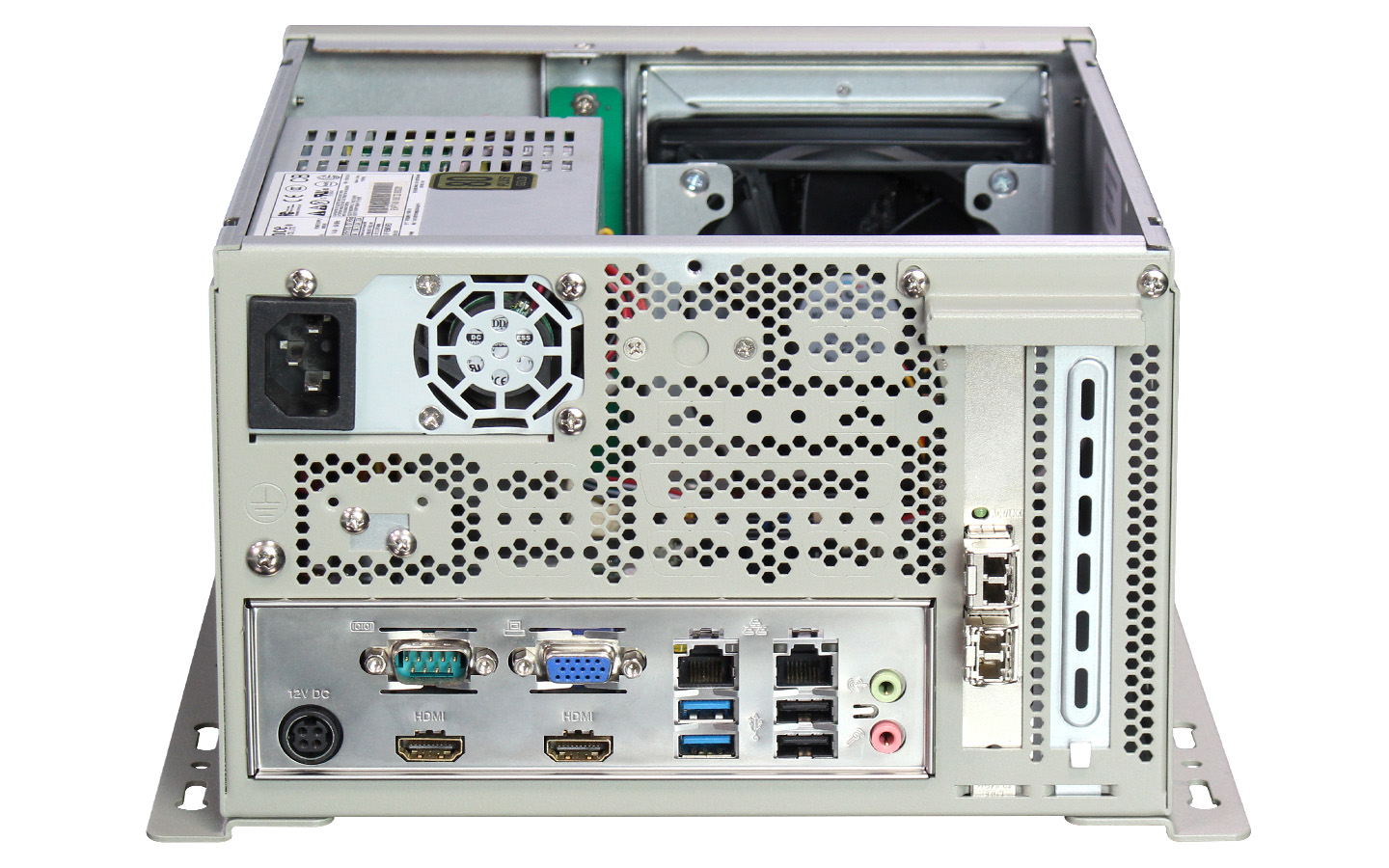

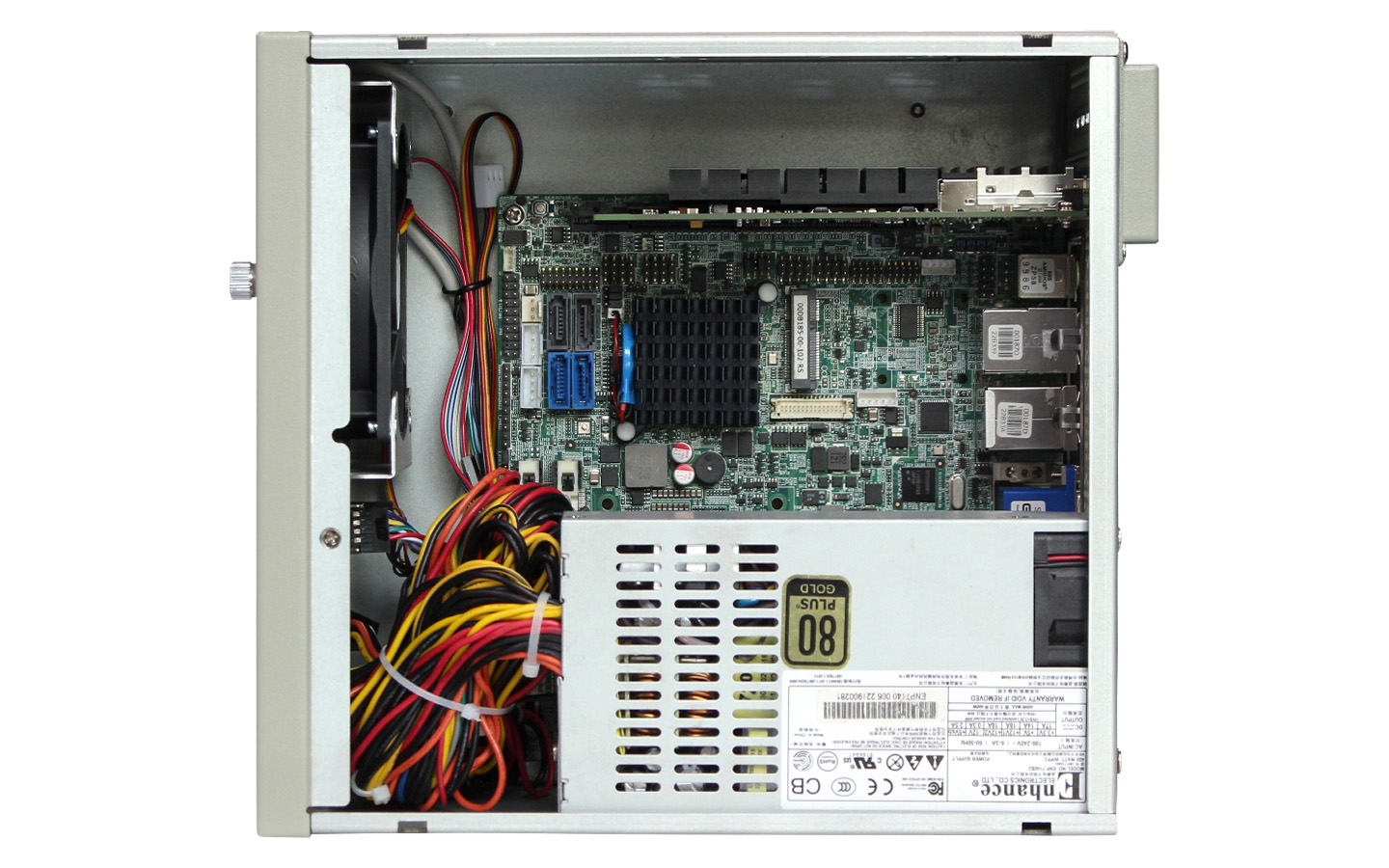

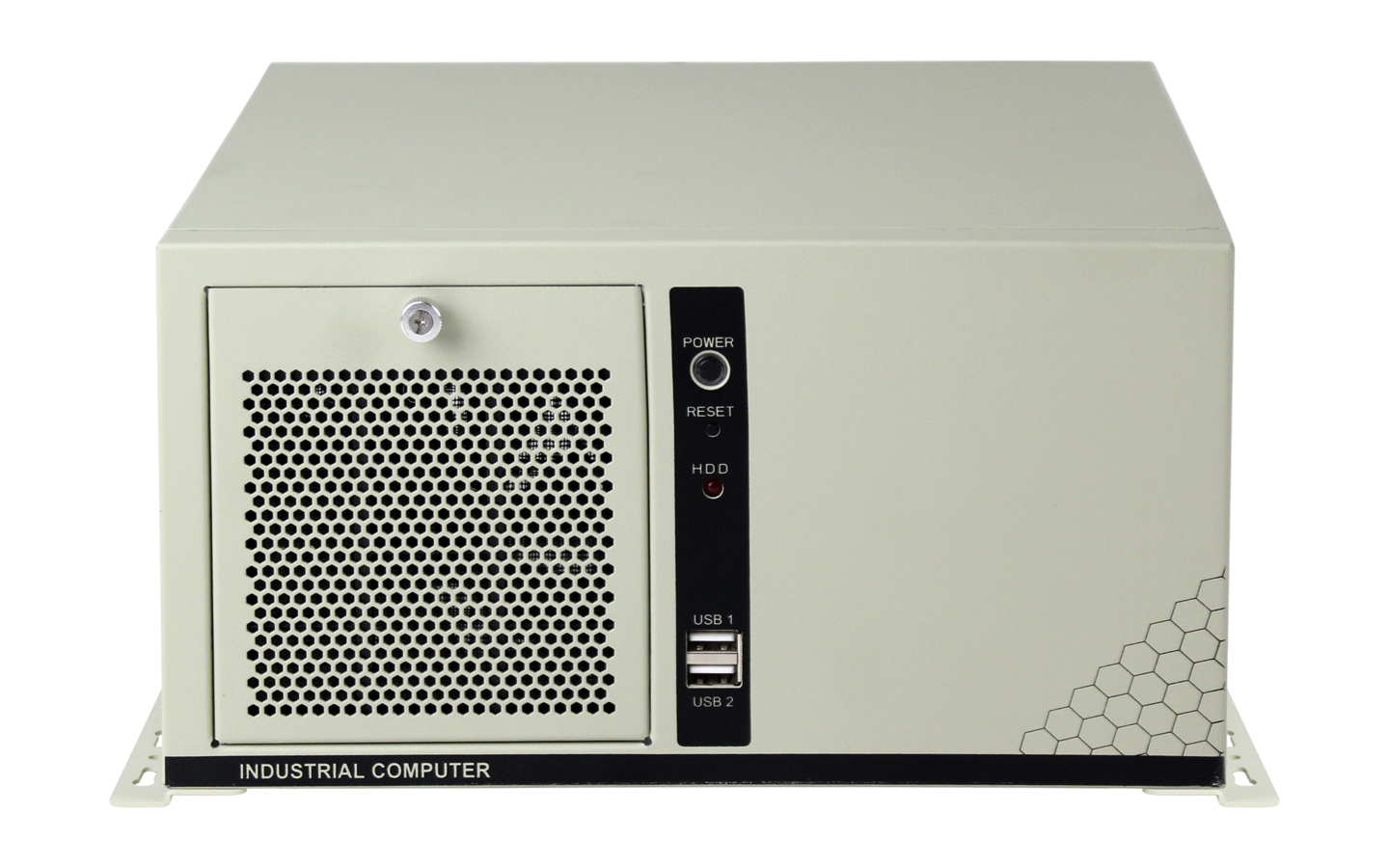

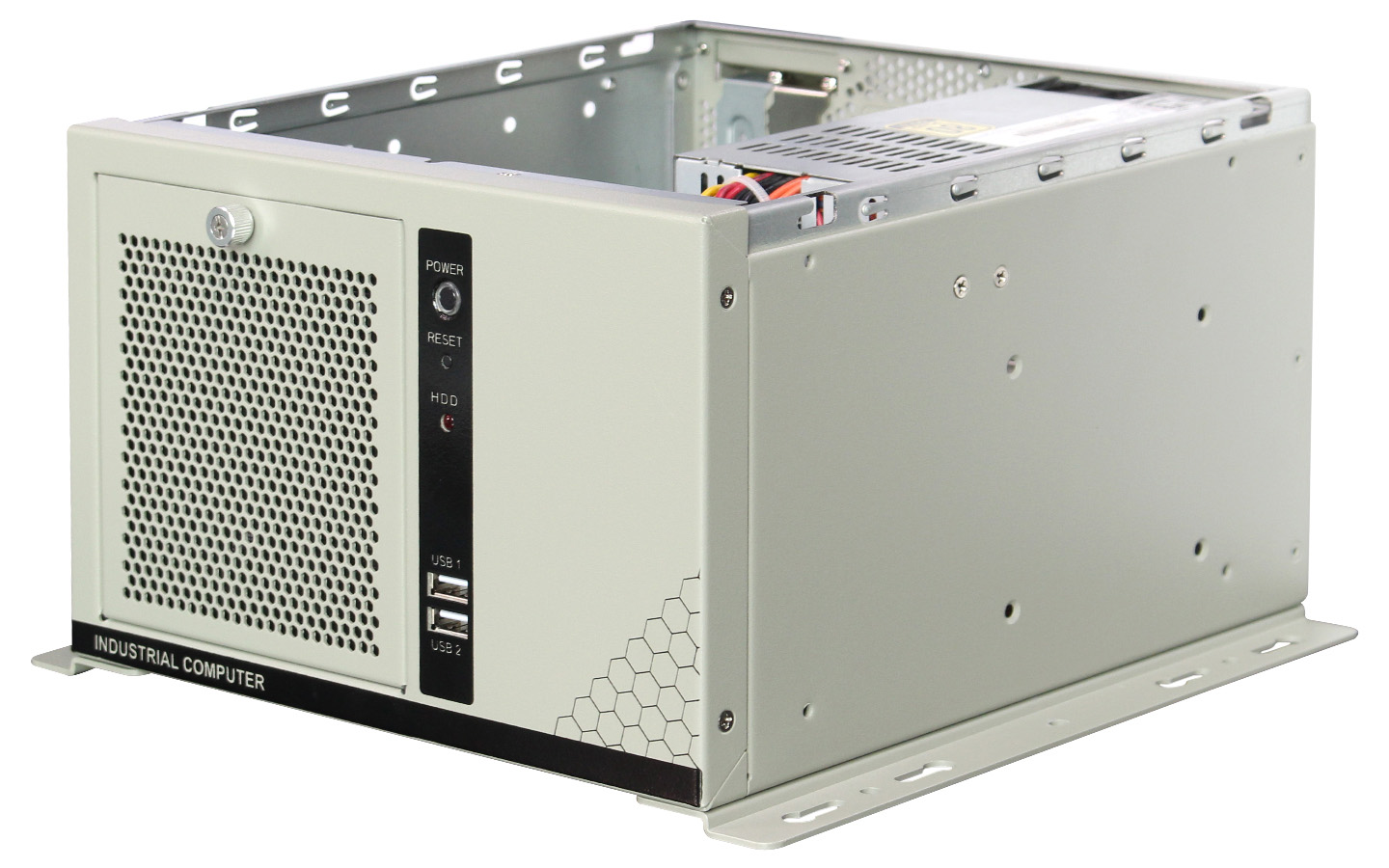

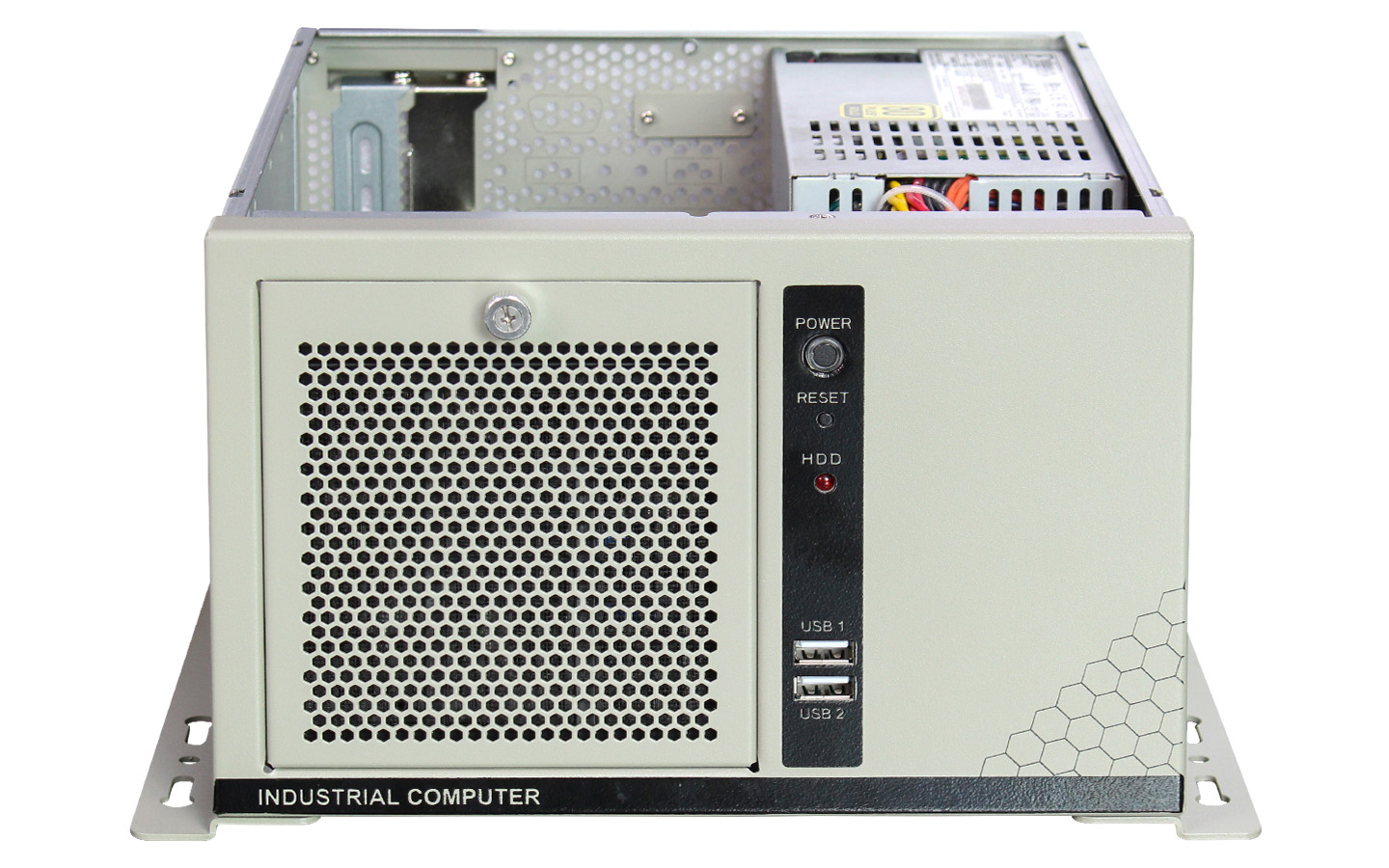

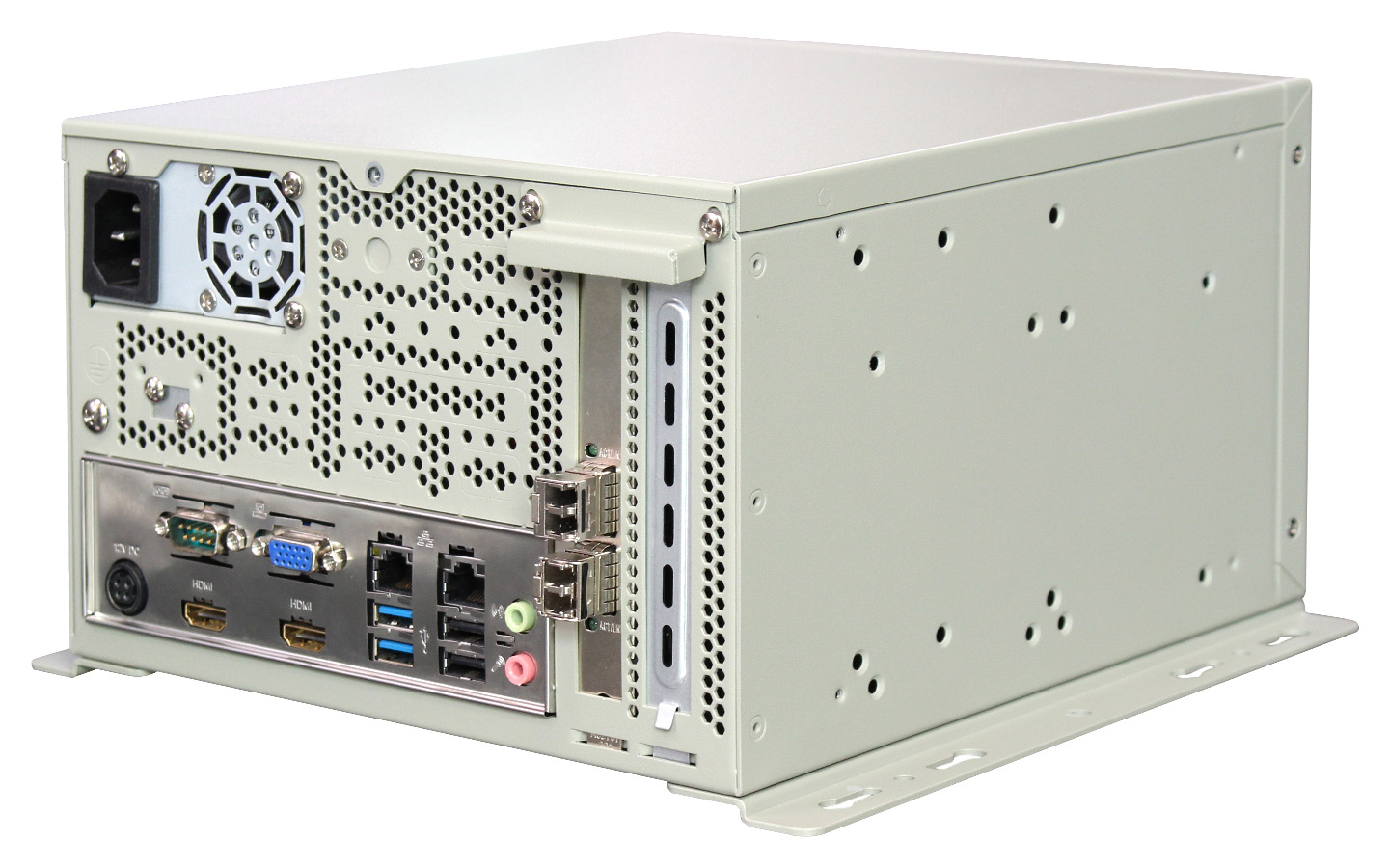

TP2143 wall-mounted industrial control chassis is made of 1.0mm SGCC high-quality board. The chassis size is 235mm(L)*220mm(W)*140mm(H). It supports 6.7"*6.7" (Mini-ITX) motherboard and supports 1 One 3.5" hard drive bay (compatible with two 2.5" hard drives) + one 2.5" hard drive bay. It comes standard with one 9025 fan. The back panel and both sides are designed with high-density heat dissipation holes for excellent heat dissipation. The chassis supports Flex 1U The power supply supports 2 full-height PCI/PCIE expansion slots. The rear panel is designed with 4 knock-down COM ports, 2 knock-out USB interfaces, 1 knock-out DB37 interface, and 1 knock-out Phoenix terminal installation interface. , 1 knock-down metal switch installation interface, very scalable, widely used in industrial control, intelligent transportation, mechanical automation, Internet of Things and other fields.

Product Features:

1.Conformed with EMC design standard to prevent from electromagnetic interference.
2.Support motherboard size up to ITX(170mm*170mm) , and 1*3.5" HDD drive bay compatible 2*2.5" SSD drive bays and 1*2.5" SSD drive bay, Standard 1U Flex power supply.
3.The chassis has good ventilation system 1*90mm fan to make sure the system work steadily.

Technical Parameter

Component	Specifications

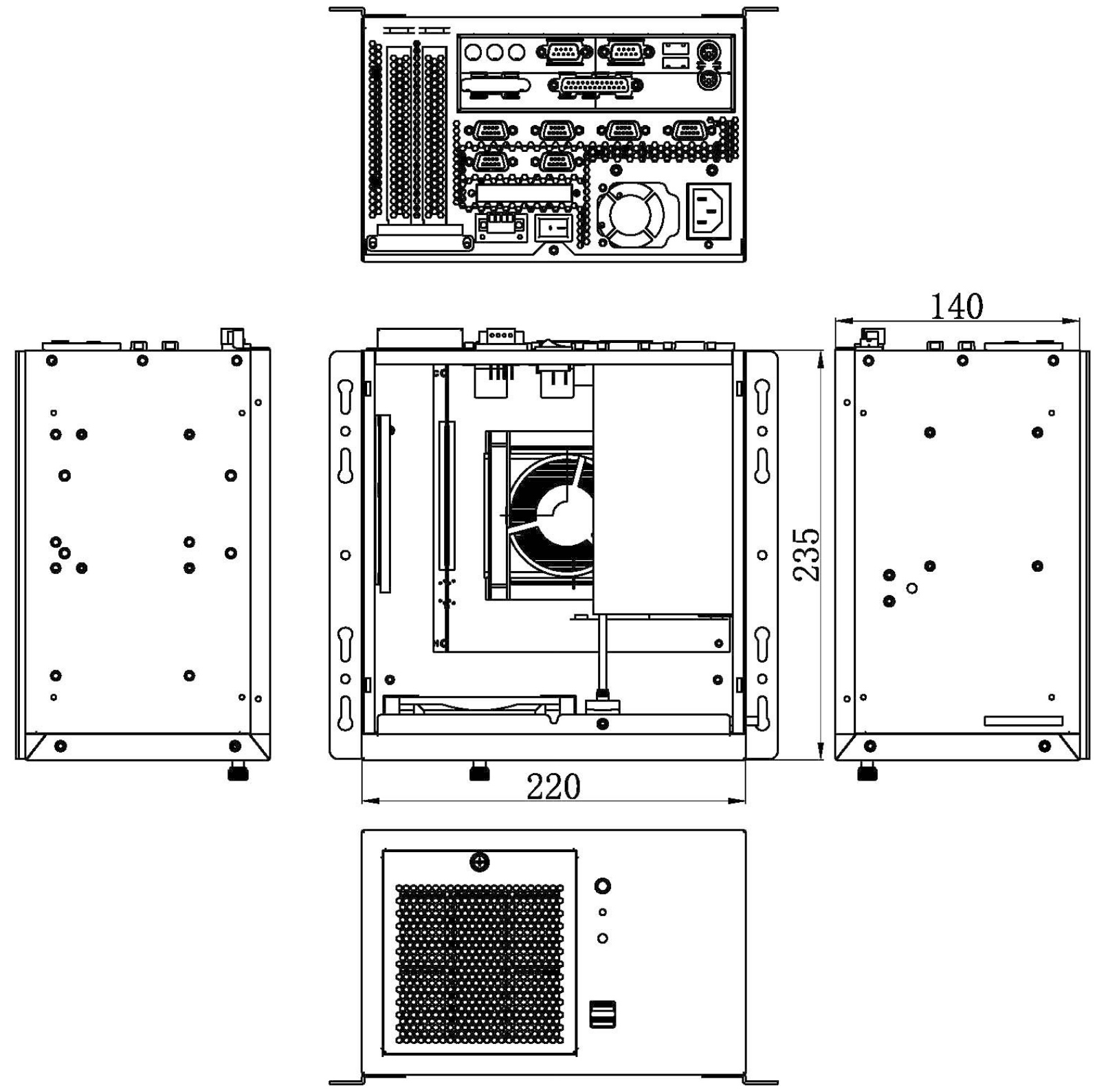

Dimensions (mm)	235(L)220(W)140(H)
Material	environmentally friendly, fingerprint resistant 1.0mm SGCC
Surface treatment	Spray some gray (KC-3081) or black (KC-31048) on the outer surface
Drivers bay	1* 3.5" hard drive slot (compatible with 2* 2.5" SSDs) + 1* 2.5" SSD
Cooling Fan	1* 9025 fan
Motherboard	Standard ITX motherboard (170mm*170mm)
Expansion	2* vertical full-height PCI/PCIE expansion slots, supporting expansion cards with a length of ≤197mm. 4COM port, 2USB interface, 1*DB37
External interface	2 * USB 2.0, optional USB 3.0
PSU form factor	supply Standard Flex 1U power supply
CPU cooler height	Height ≤70mm (dimension from top to bottom of radiator)
System control	POWER LED1, HDD LED1, RESET SW1, POWER SW1 (rear 14P Phoenix terminal, 1 metal switch with light)
Application	industrial control, intelligent transportation, mechanical automation, Internet of Things, etc
