8" TFT LCD Monitor, resolution 800x600 Optional 1024x768, The front panel complies with IP65 Protection level, stable and firm, Support VGA and HDMI interface, Optional resistance/capacitive touch screen, Optional 12V/24V powered by
Security monitoring, public infrastructure, manufacturing, energy industry, transportation, medical equipment
8" TFT LCD Monitor, resolution 800x600 Optional 1024x768, The front panel complies with IP65 Protection level, stable and firm, Support VGA and HDMI interface, Optional resistance/capacitive touch screen, Optional 12V/24V powered by, Supportpanel installation, wall installation, desktop installation or VESA Cantilever installation.
| Overview | ||

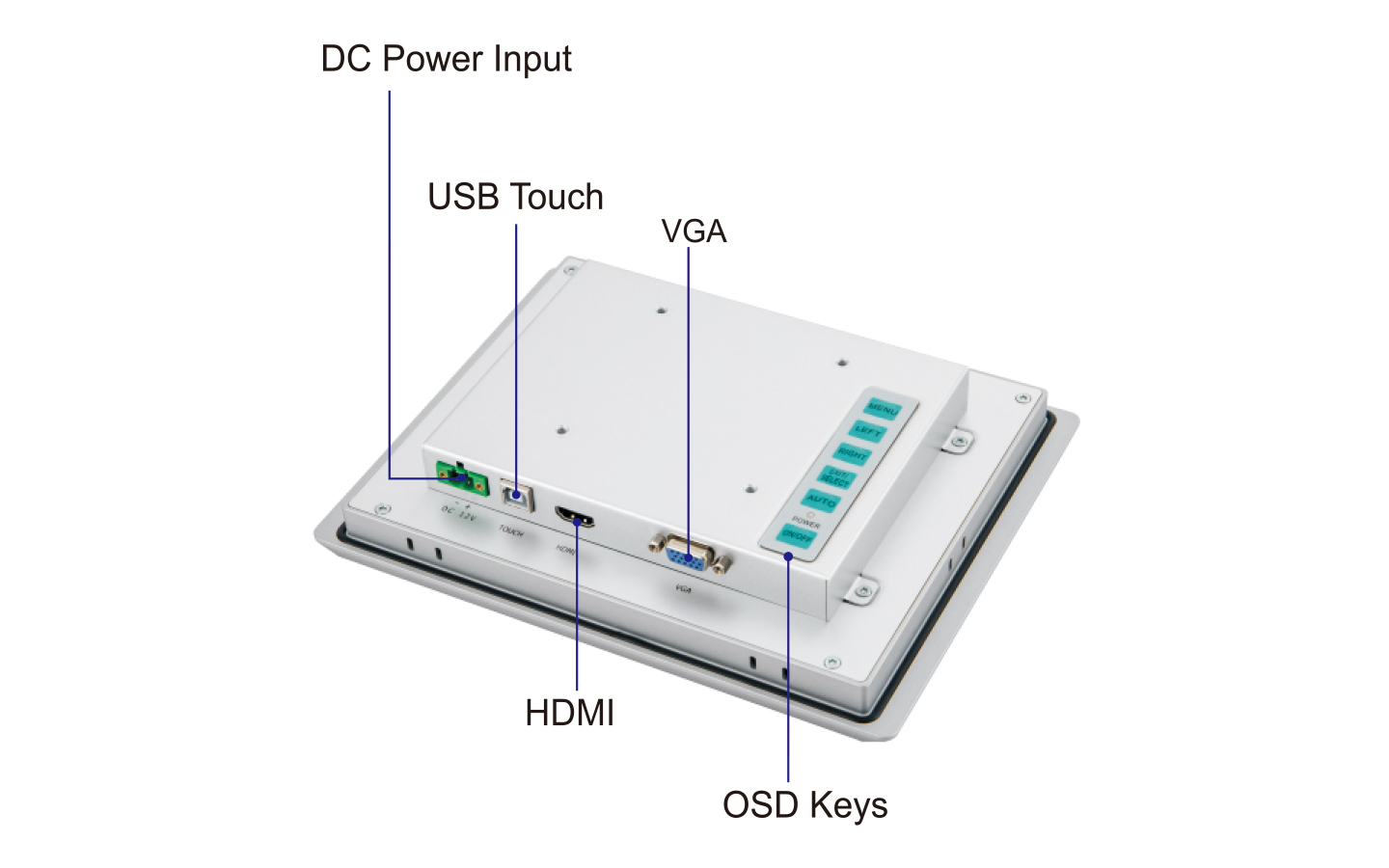

| Display Interface | VGA, HDMI | |
| Shell material | Aluminum, SGCC | |

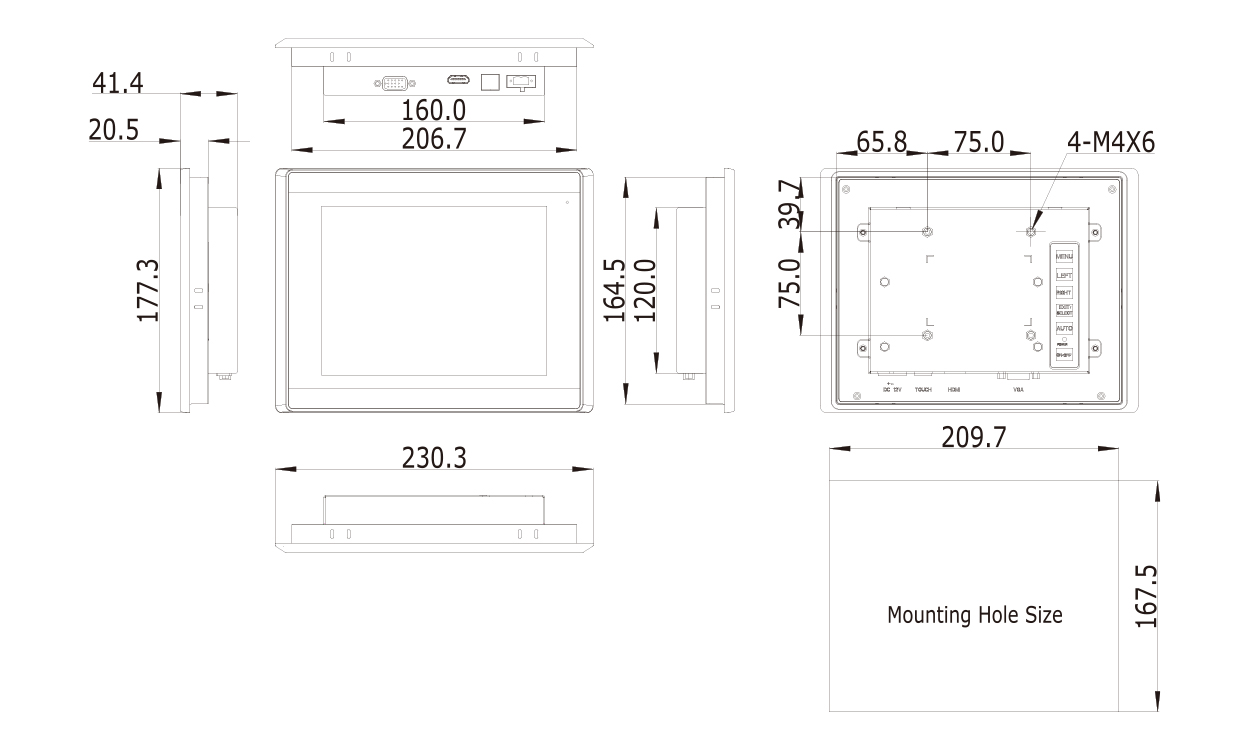

| size | 230.3x177.3x41.4 mm | |
| weight | 1.42 KG | |
| Power Input | 12V/3A | |
| Support system | Windows⁰7/8/10, WES 7, Linux | |
| OSD Menu | Adjustable screen brightness and contrast, support one-click adjustment to the best state | |
| Installation | Panel mounting, wall mounting, desktop mounting, VESA75 cantilever mounting | |
| Display | ||
| LCD Type | TFT-LCD | |
| Resolution | 800x600 (optional 1024x768) | |
| Maximum Color | 16.7M | |
| brightness | 250 cd/m² | |
| Perspective(CR>=10) | -70~70°(H),-50~70°(V) | |
| Backlight | led | |
| Backlight life(hours) | 20,000 | |
| Contrast | 500:1 | |
| Touch screen | ||
| type | Five-wire resistance screen | 10-point capacitive screen |
| Interface Type | USB2.0 | USB2.0 |
| Transmittance | 85% | More than 85% |
| Service life | 250g force click 10 million times | Hardness 7H |
| Use environment | ||
| Operating temperature | -20℃~70℃ | |
| Storage temperature | -30℃~80℃ | |
| Storage humidity | 10~90%@30℃, no condensation | |
| Protection level | Front panel IP65 | |
| Vibrationresistance | 5~500 Hz,1Grms(operating,random) | |
