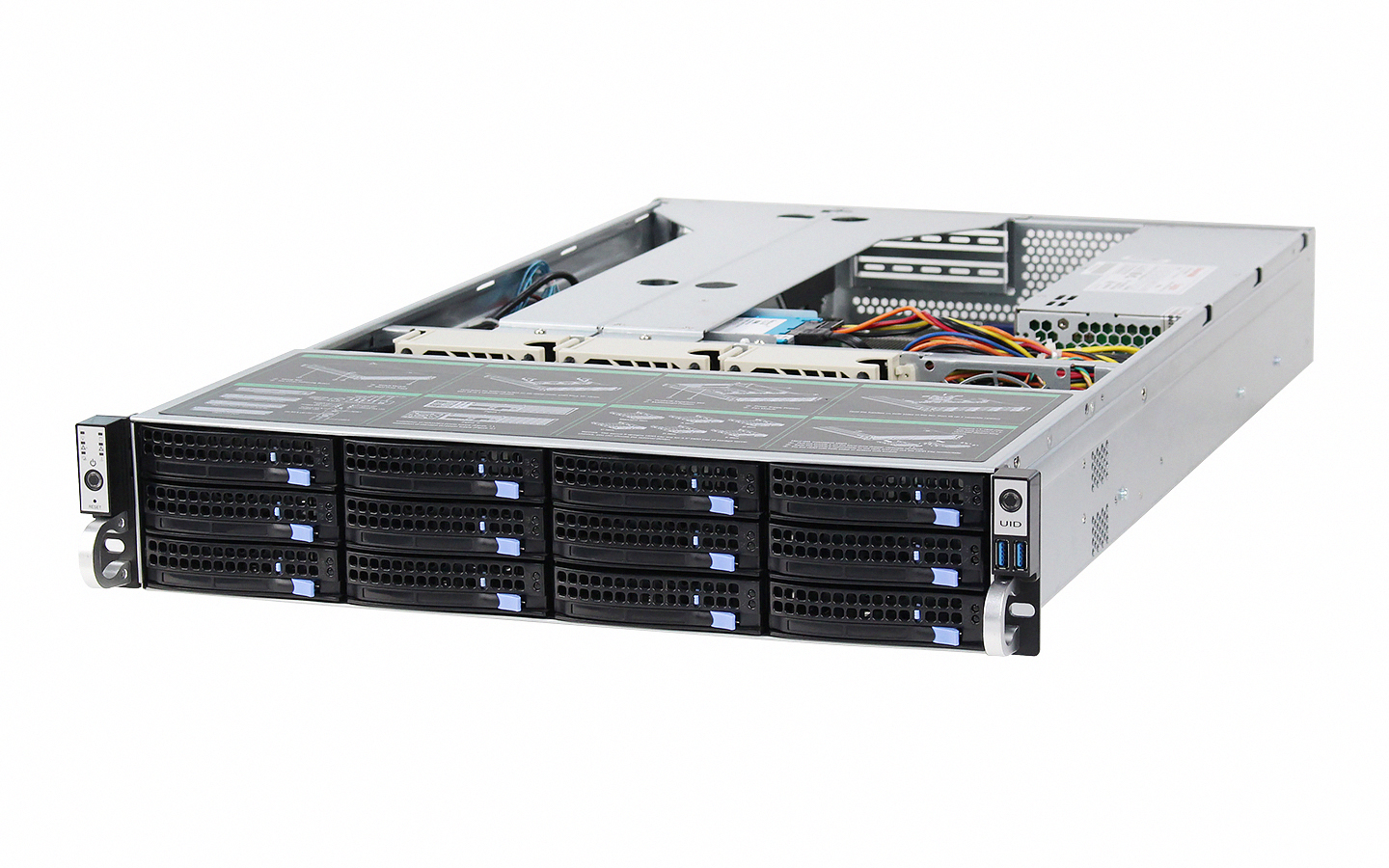

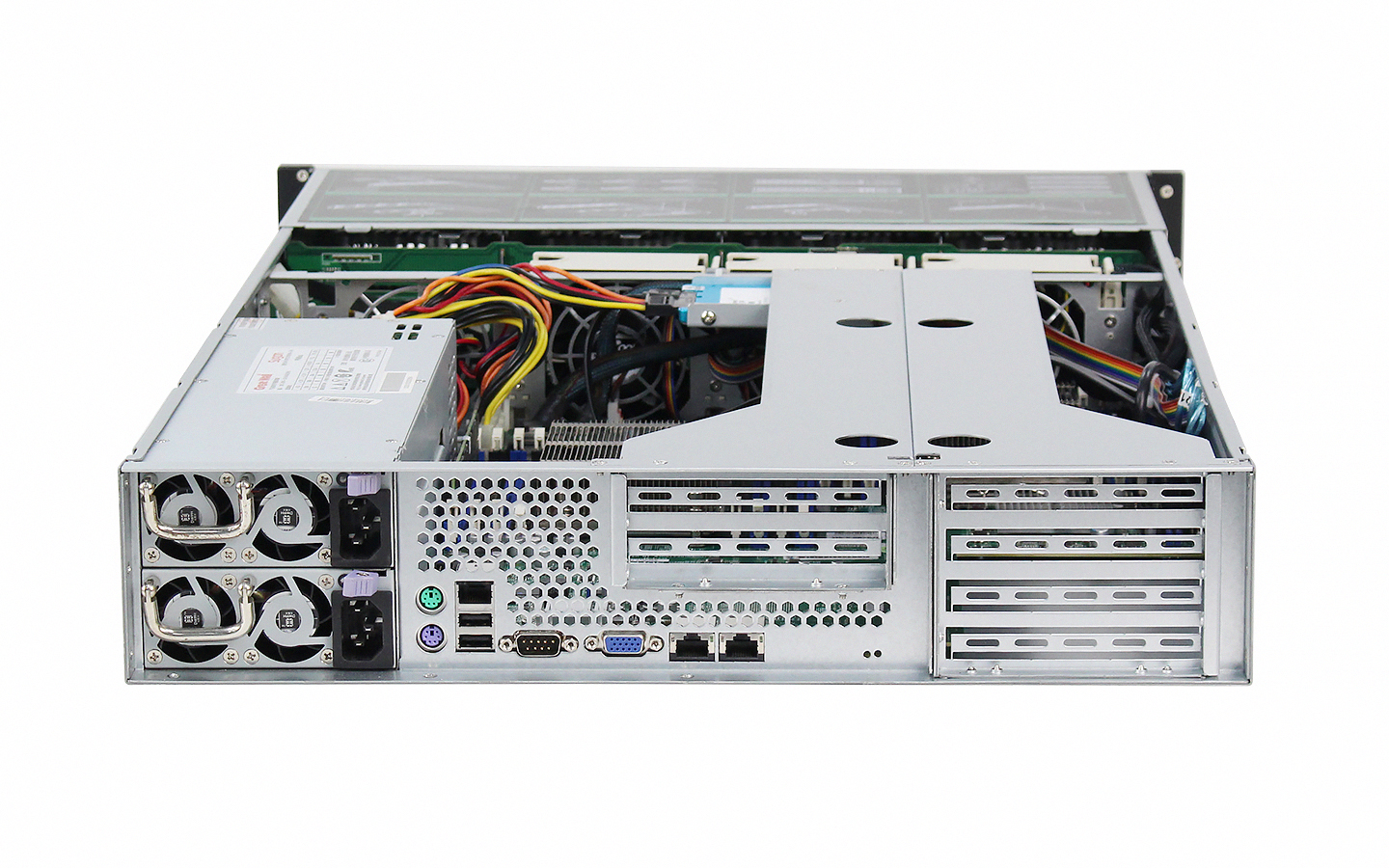

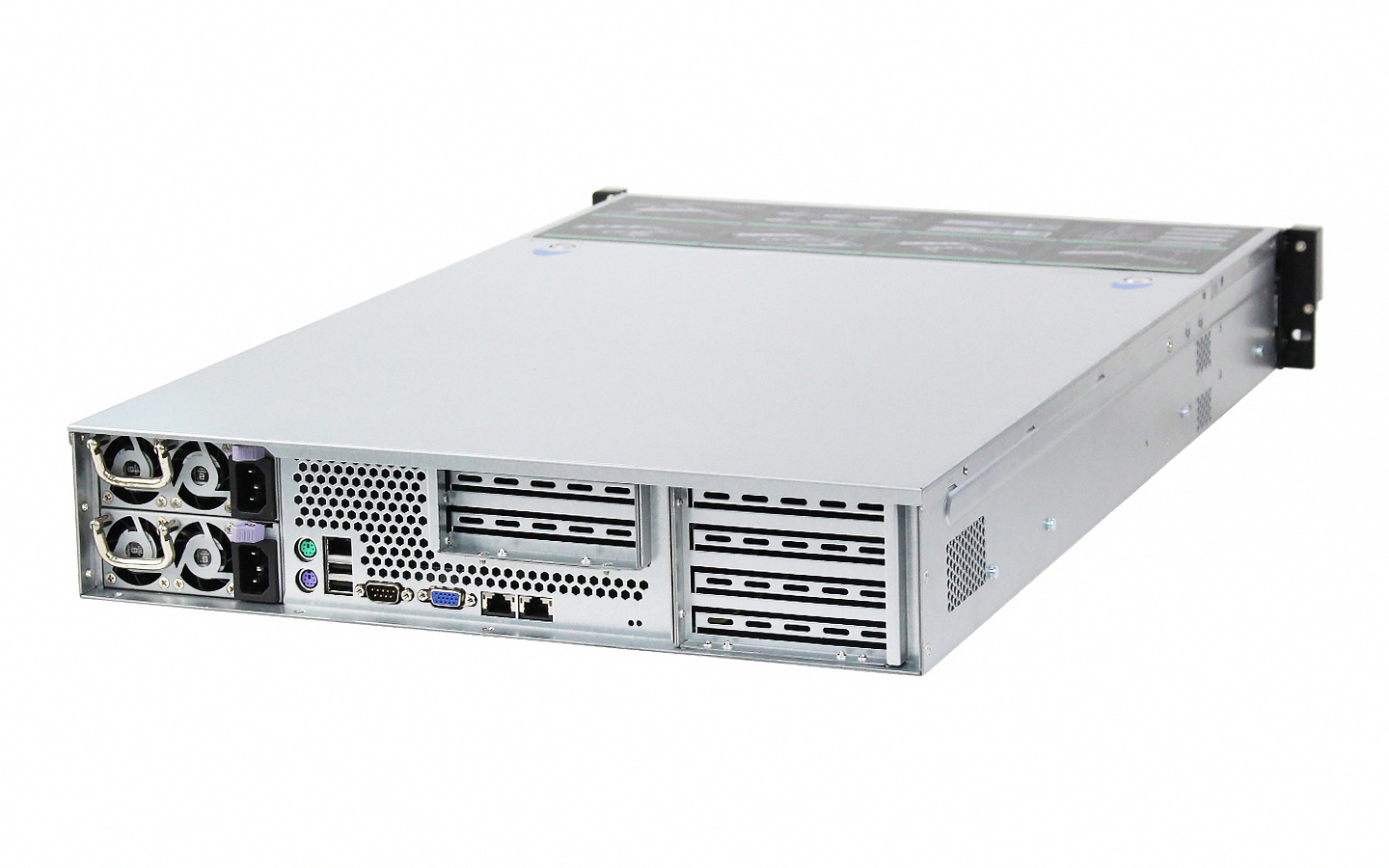

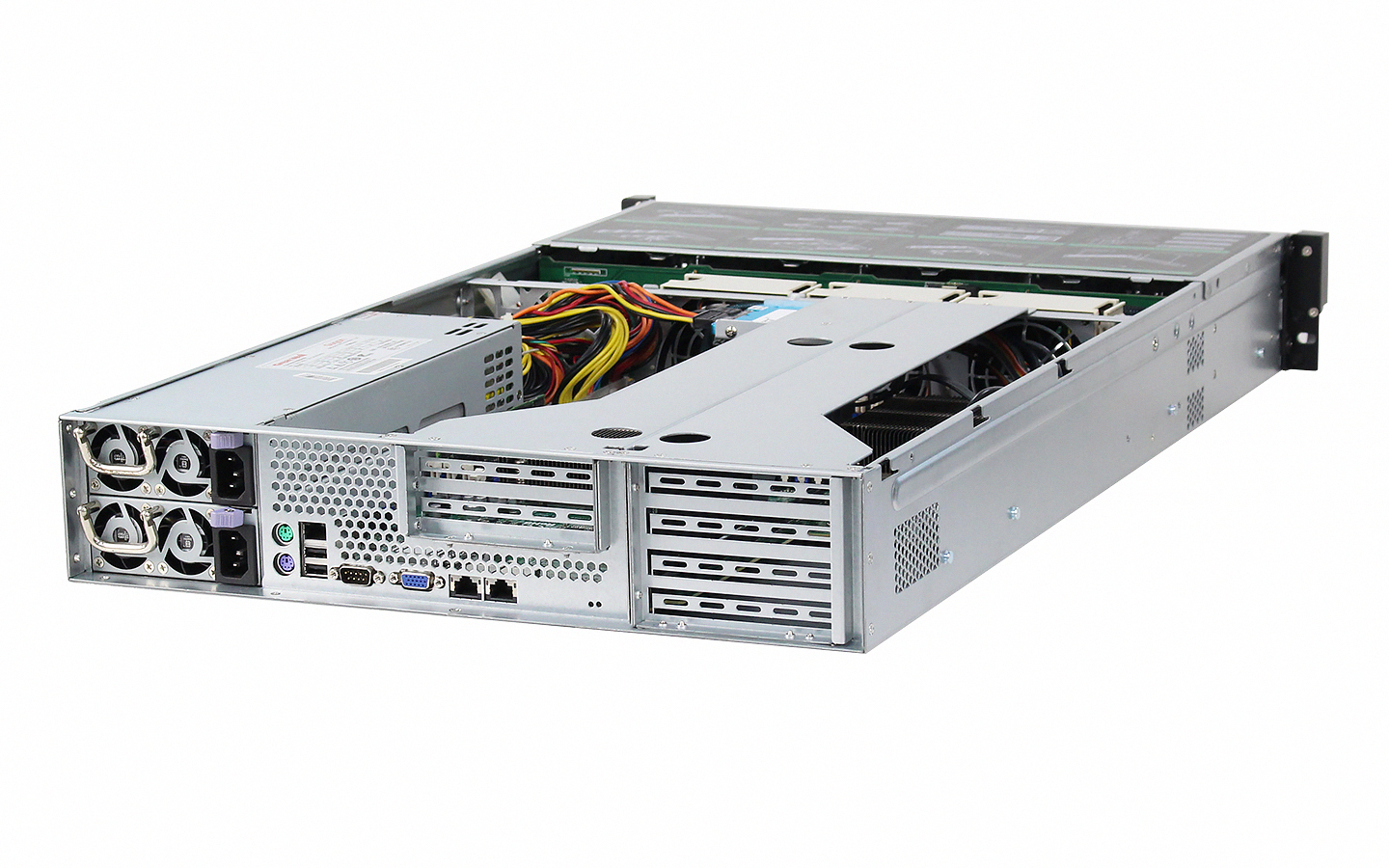

Product model:S273-12(customized)

Deep learning, AI, edge computing，Cloud storage, cloud computing, big data, security monitoring, LOT, etc.

Components	Specification
Size(mm)	437.5(W) * 650(D) *88(H), Standard rack mounted server chassis.
CPU	2*Intel® Xeon E5-2620, 6-core 12 thread 2.5GHz, Optional Intel Xeon E5-2600 V2 series (Sandybridge-EP) processor.
RAM	2*DDR3 8G ECC, 16 memory slots with a maximum capacity of 512GB.
Hard disk	Standard 128G SSD, optional 12 SAS / SATA hard disks.
Array controller	2*LSI 2008，Support RAID 0, 1, 5, 10.
Display	Integrated BMC display chip.
Network	2*GbE, 1 BMC management port.
Expansion slot	1 PCIe X 16 slots.
Peripheral Interface	2 * USB2.0 (rear), 2 * USB2.0 (front), 1 * VGA, 1 * com.
Power Supply	1 + 1 redundant power supply, rated power 700W.
Administration	Support IPMI2.0 and remote KVM management.
Working temperature	10℃－40℃.
Relative humidity	20％－80％RH.
Operating system	Linux/windows.

Product Features:
1.Conformed with EMC design standard to prevent from electromagnetic interference.
*2.Support 2Intel® Xeon E5-2620, and 2DDR3 8G ECC, 16 memory slots with a maximum capacity of 512GB, Standard 128G SSD, optional 12 SAS / SATA hard disks.*
3.Power Supply 1 + 1 redundant power supply, rated power 700W.
