Product model:IPC4184

Product category:Four expansion wall-mounted chassis

Product Introduction:

Application field:

Overview
Technical Parameter
Dimension
Data download

Overview

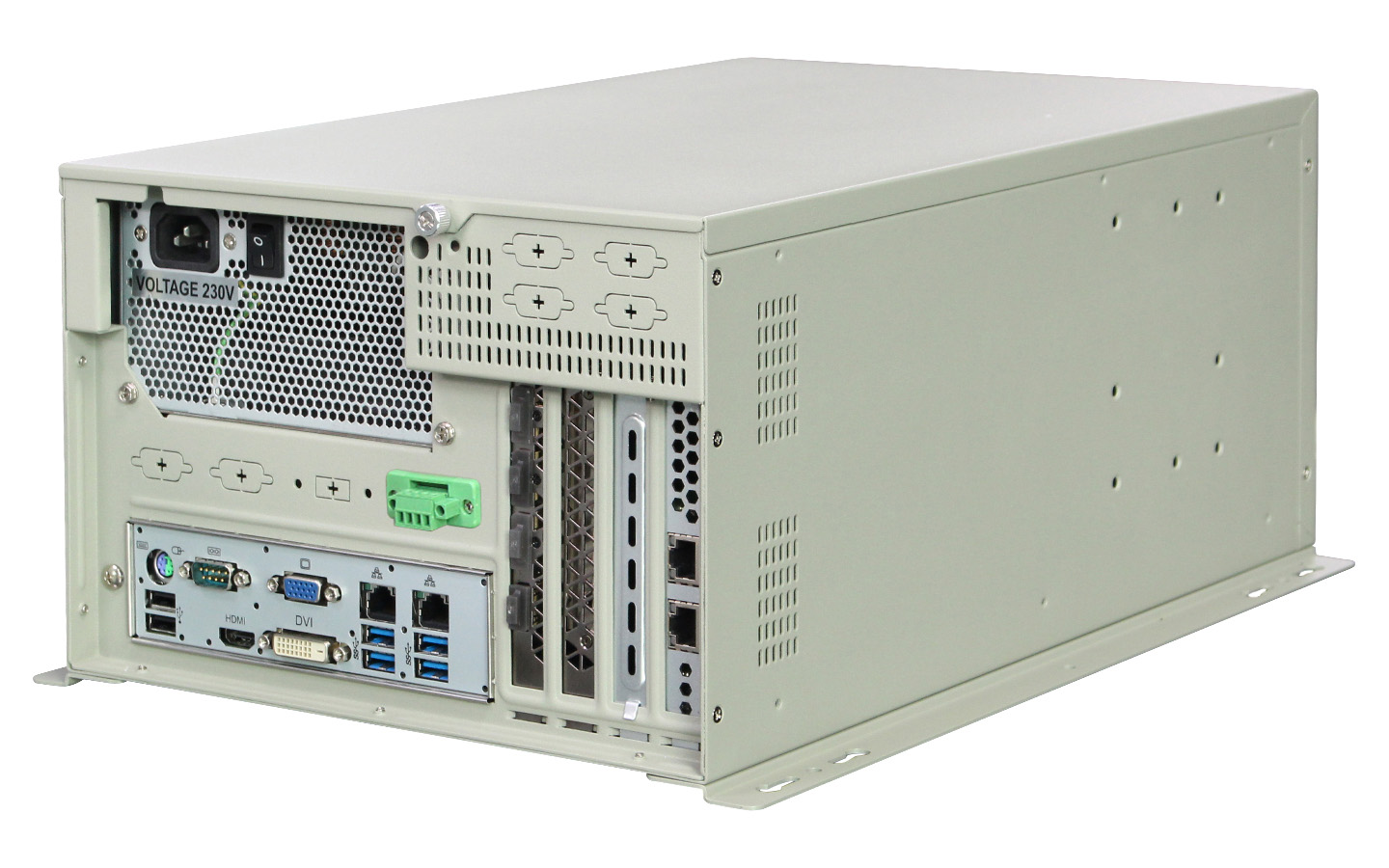

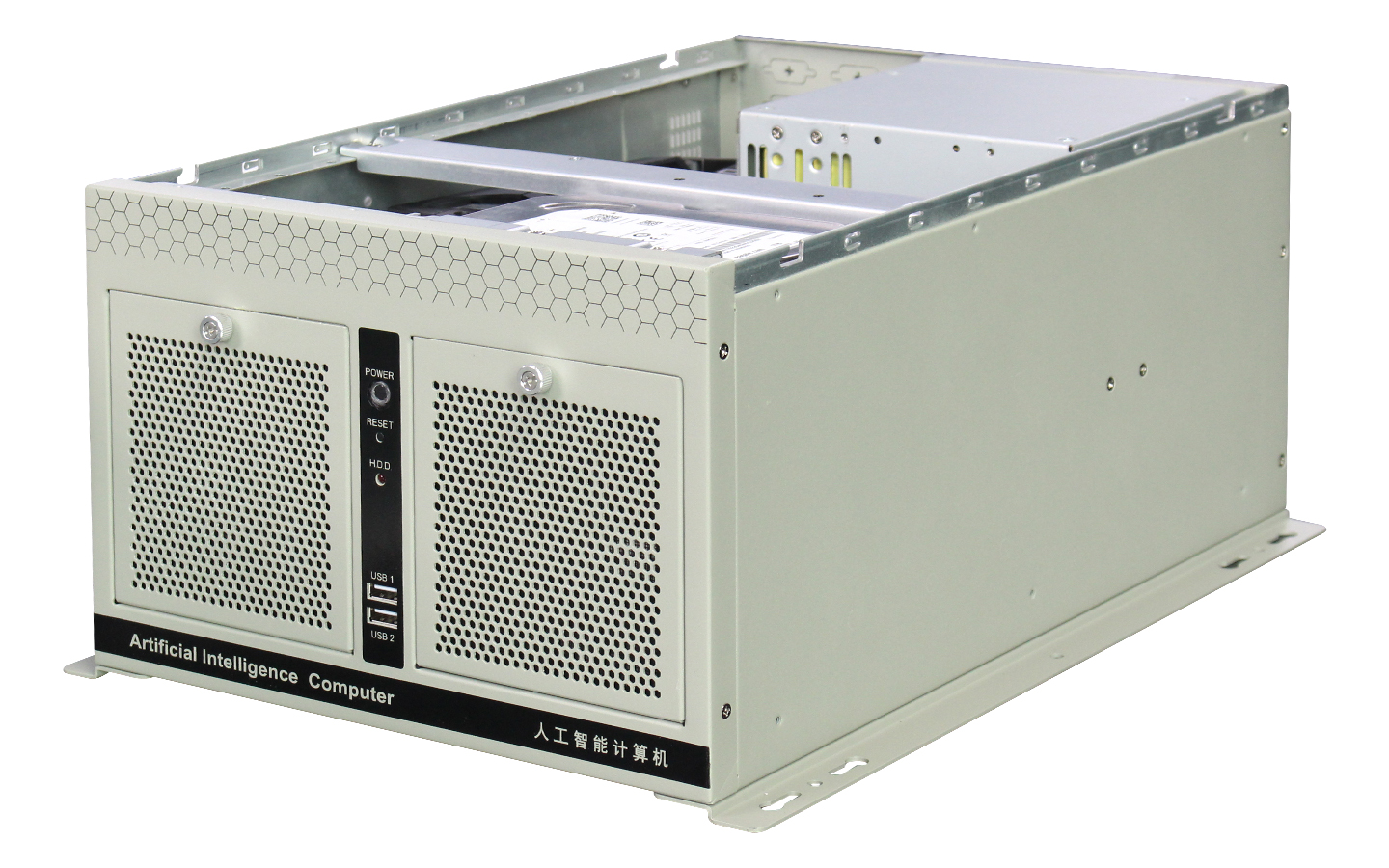

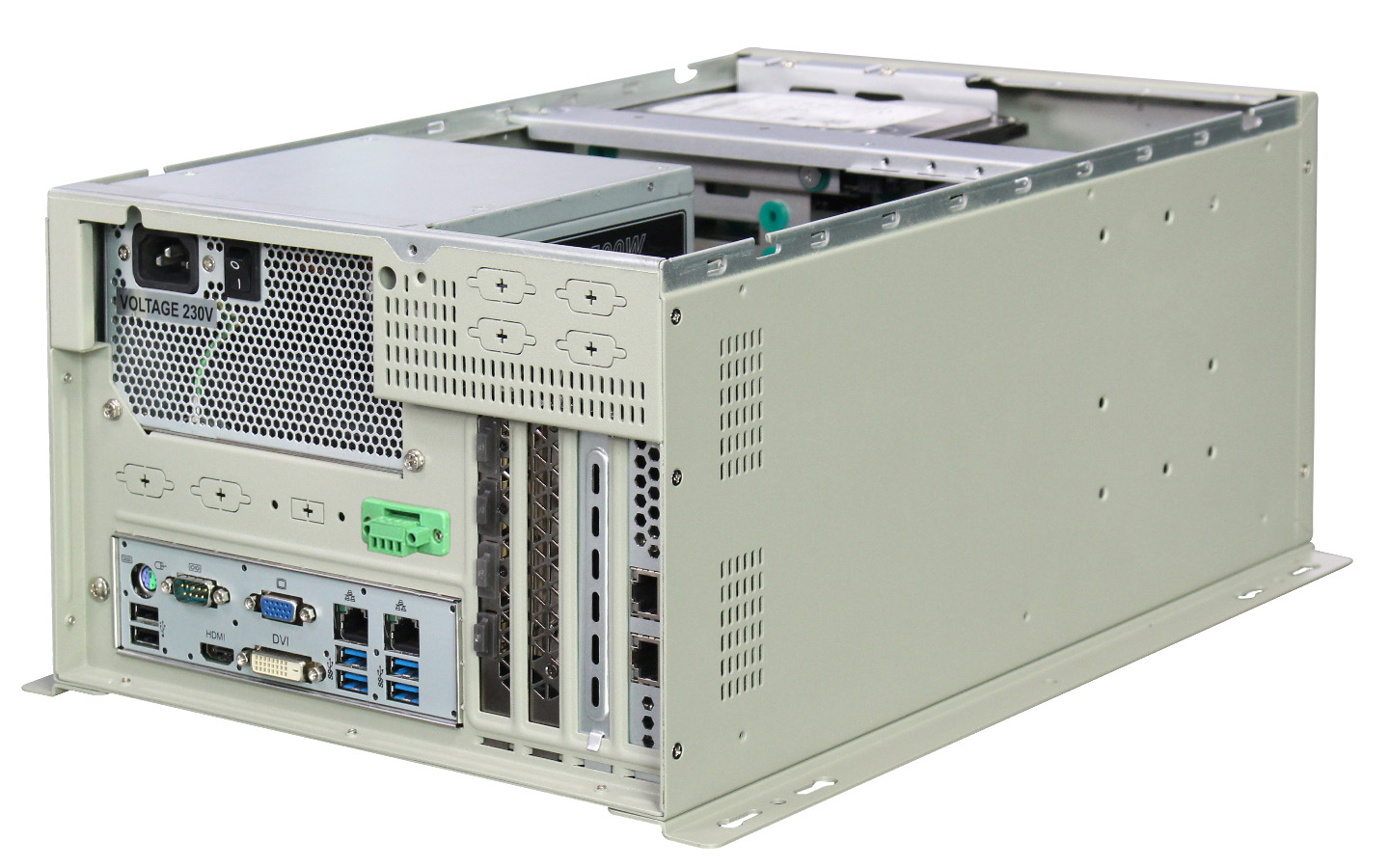

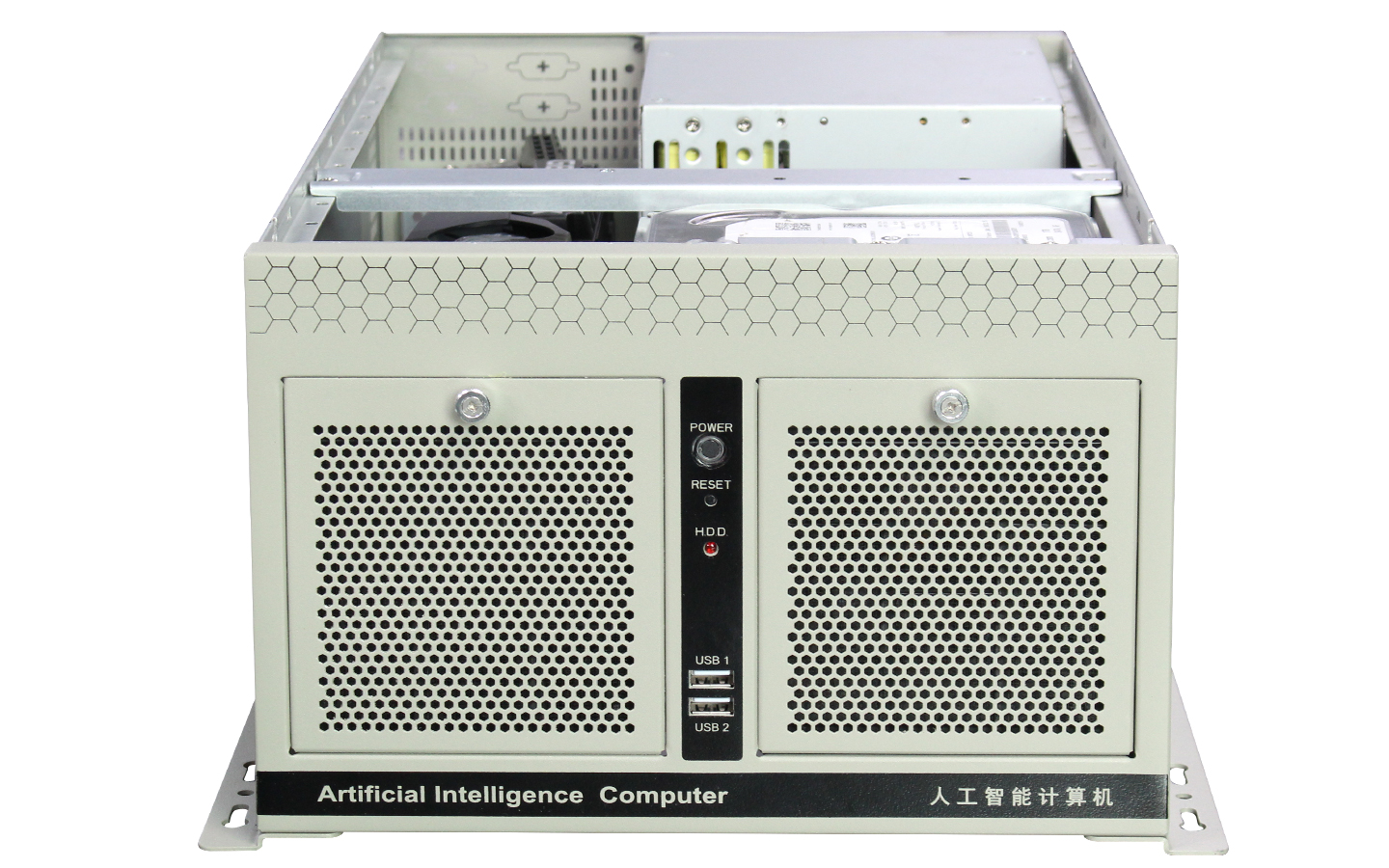

IPC4184 reinforced wall-mounted industrial control chassis is produced with 1.0mm SGCC full mold. The chassis supports standard Micro-ATX motherboards, supports 4 full-height PCI/PCIE expansion slots, can be installed with standard ATX power supplies, and supports 1 3.5-inch mechanical hard drive and 2 A 2.5-inch SSD and a 2.5-inch/3.5-inch hard drive bay. The chassis supports GPUs with a length of ≤275mm. The structure adopts a reinforced design and is very reliable. It is suitable for machine vision, industrial control, intelligent transportation, mechanical automation, AI, Internet of Things, etc. field.

Technical Parameter

Component	Specifications

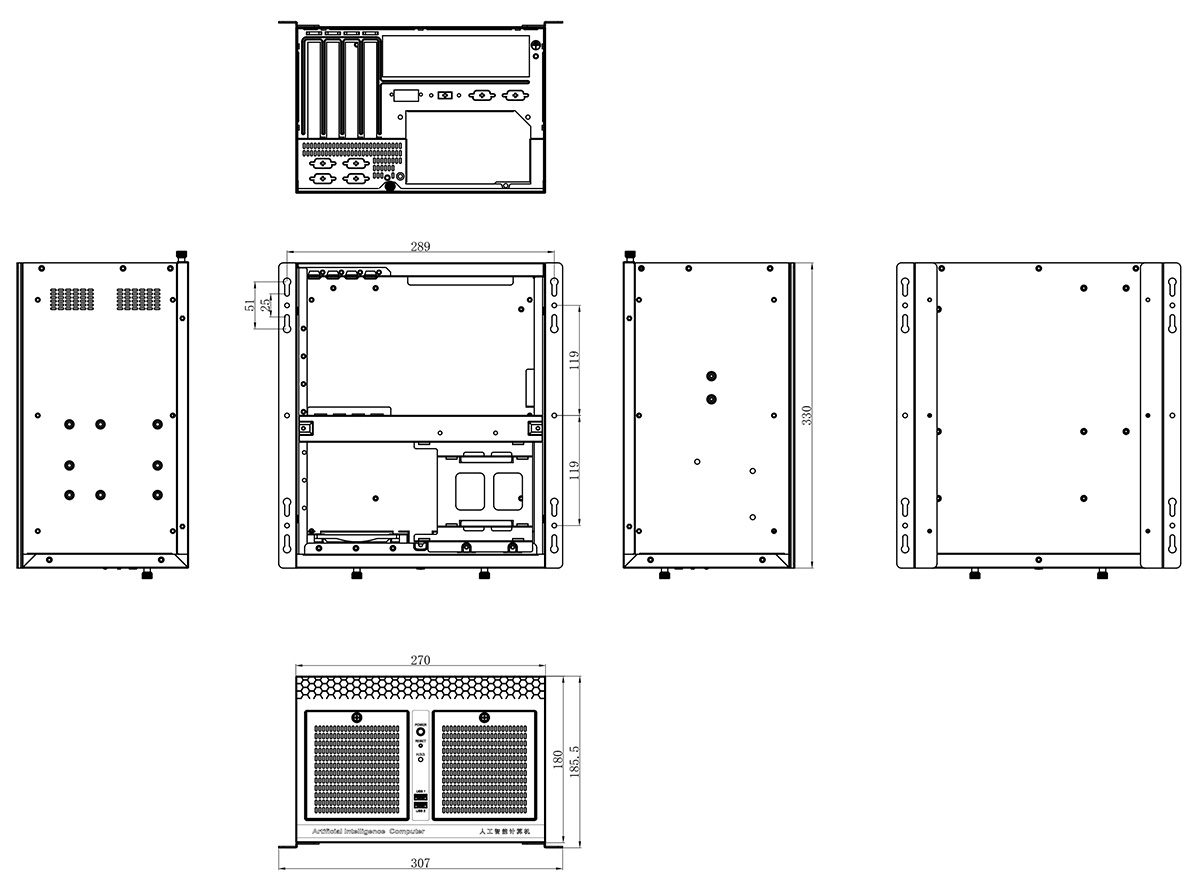

Dimensions (mm)	330(L)270(W)180(H)
Material	environmentally friendly, fingerprint resistant 1.0mm SGCC
Surface treatment	The outer surface is sprayed, but the internal parts are not sprayed
Drivers bay	1* 3.5" hard drive slot, 2 2.5" hard drive slots, 1* 2.5"/3.5" hard drive slot
Cooling Fan	2* 9cm fan positions, 1* 9025B fan is standard
Motherboard	standard motherboards with dimensions of 9.6"×9.6" and below
Expansion	4* full-height PCI/PCIE expansion slots, Supports expansion cards (GPU) with length ≤275mm

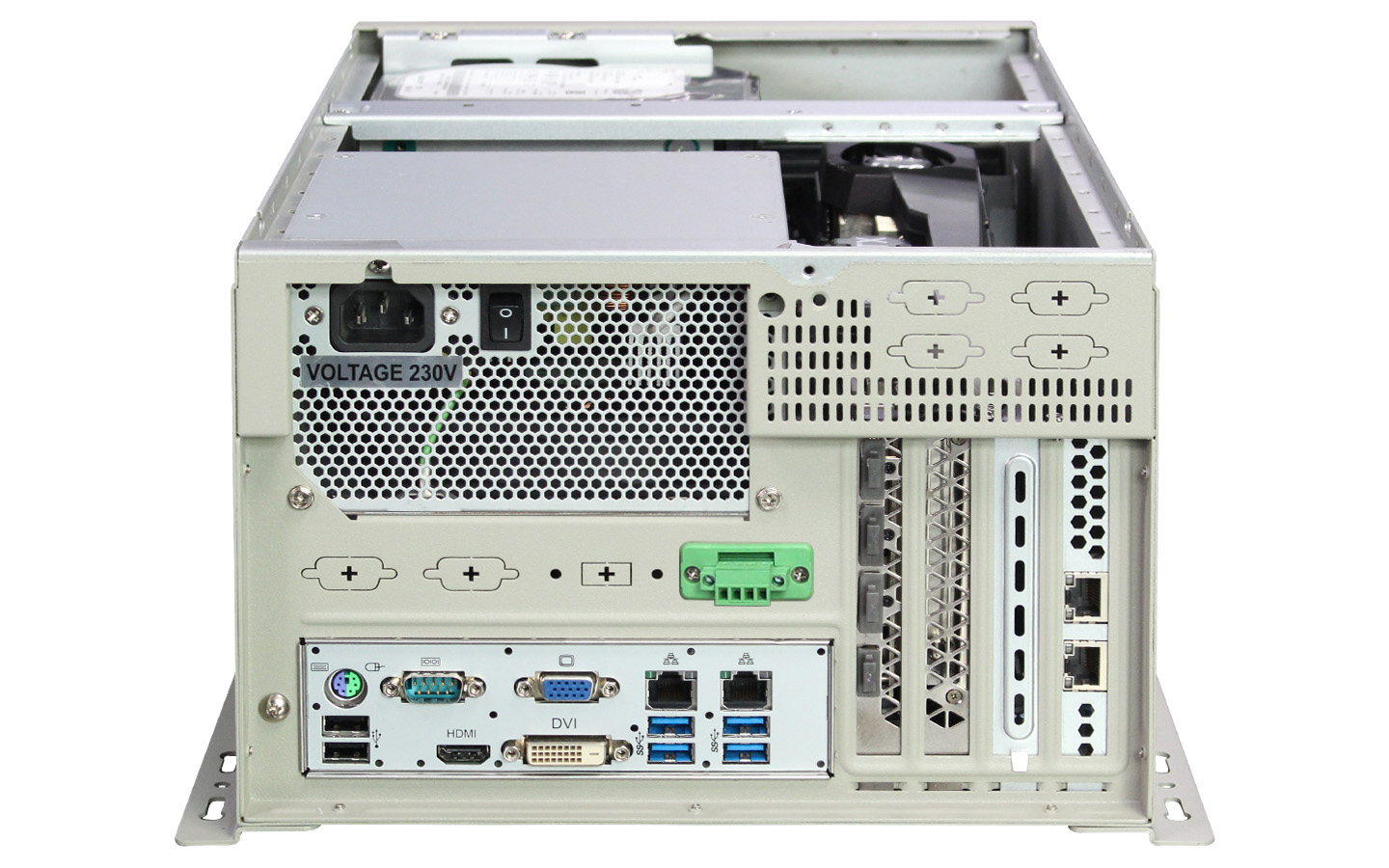

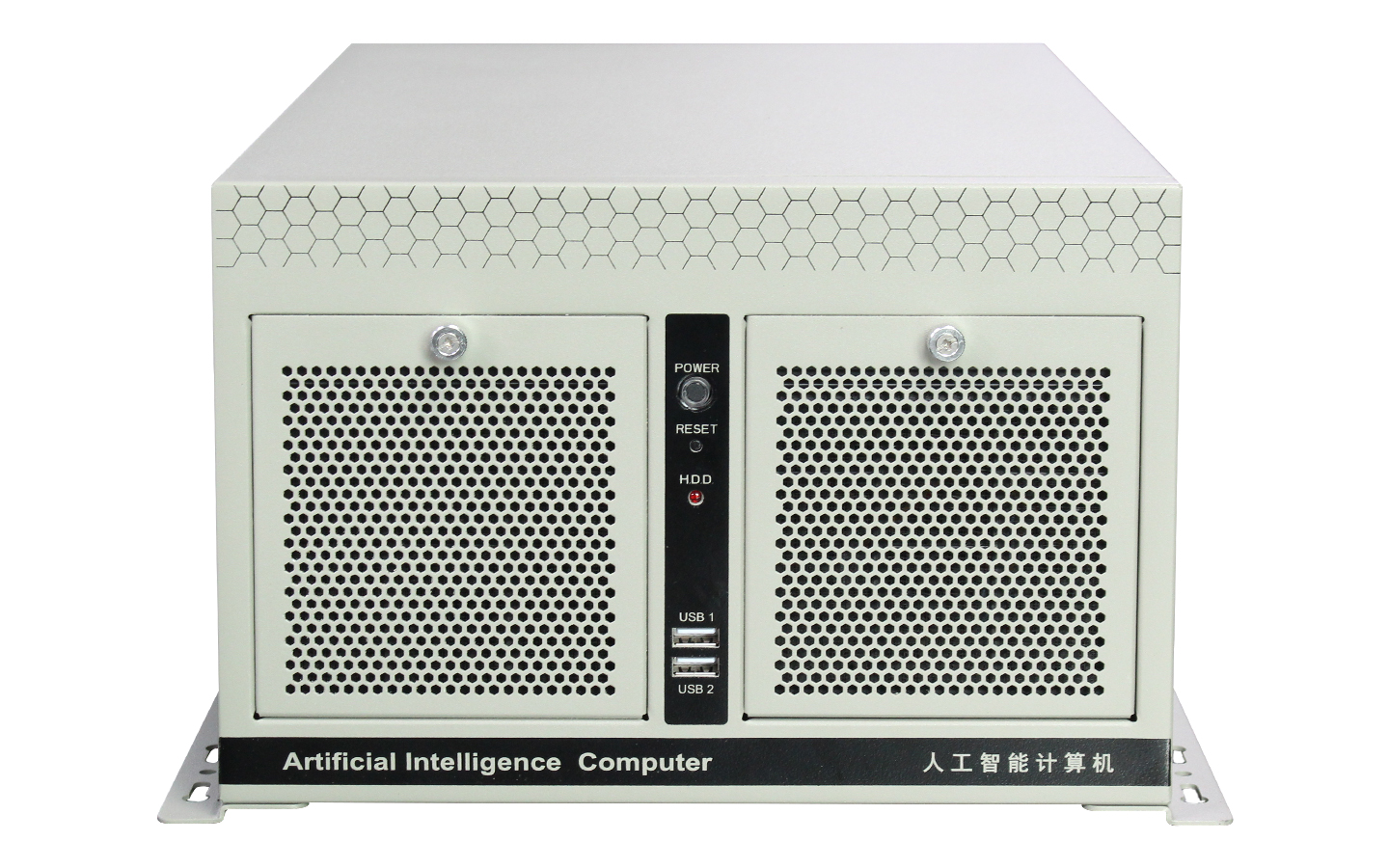

External interface	front 2USB2.0, optional USB3.0, rear window 1USB reserved interface, 6COM reserved interface, 1 4PIN Phoenix terminal reserved interface
PSU form factor	supply Standard ATX power supply
CPU cooler height	Height ≤70mm (dimension from top to bottom of radiator)
System control	POWER LED1，HDD LED1，RESET SW1，POWER SW1
Application	Machine vision, industrial control, intelligent transportation, mechanical automation, AI, Internet of Things, etc.
