Product model:M084 quasi system

Cloud storage, cloud computing, big data, security monitoring, LOT, etc.

Components	Specification
Mainboard	8-card in-line motherboard.
CPU	Integrated Celeron 3855U.
RAM	DDR4 4G notebook memory, optional DDR3 4G notebook memory.
SSD	60/64G msata.
GPU card	optional P106 / rx570 / p104, P106 (single calibre 24), rx570 (single calibre 28), p104 (single calibre 36), Support GPU cards with thickness ≤ 49mm and length ≤ 270mm.
Power Supply	PS2 1600W power supply, optional 1U 1600/1800W or PS2 1800W power supply.
Video card power supply line	8 * 6P to (6 + 2)P, 23cm, 18AWG.
Size(mm)	Product size: 580(W)330(D)165(H).
Cooling Fans	3 x 120mm ball bearing fans on front, 12V-3A optional 12V-3.9A.
Working temperature	-10℃-35℃.
Weight(KG)	N.W 12KG±10%, G.W 14KG±10%.

Product Features:
1.Conformed with EMC design standard to prevent from electromagnetic interference.
2.8-card in-line motherboard, and Integrated Celeron 3855U, 60 / 64G msata.

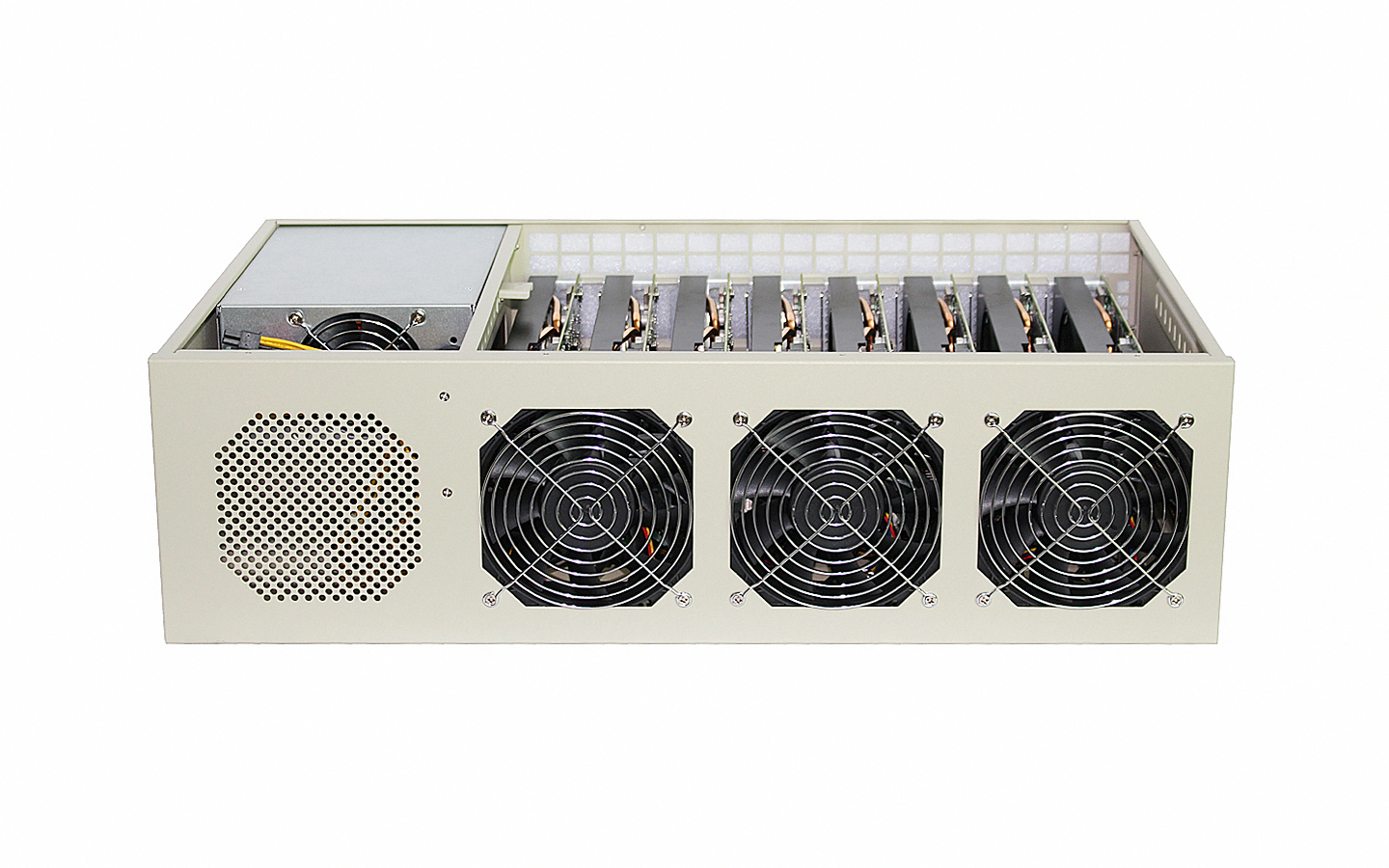

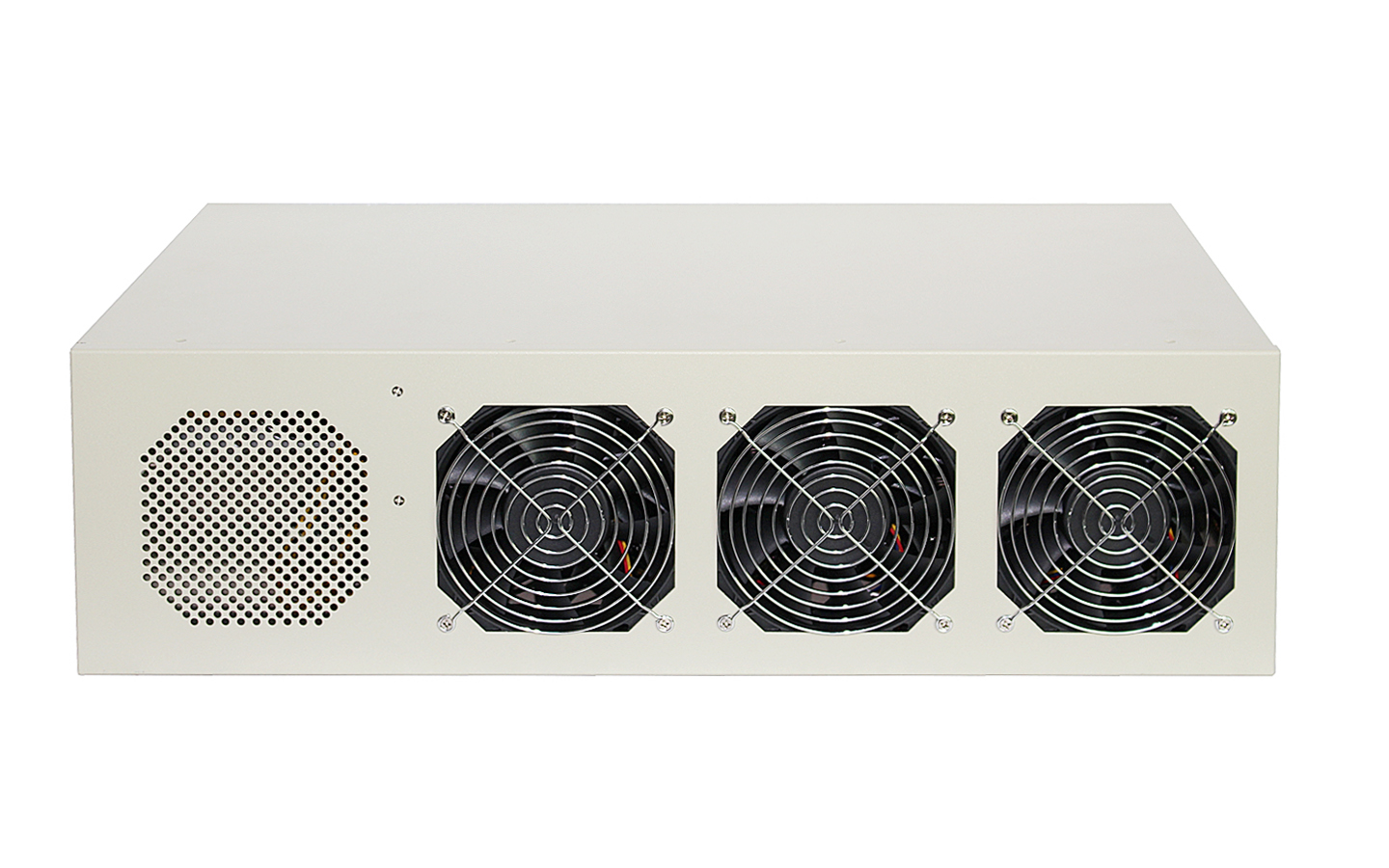

3.The chassis has good ventilation system 3 x 120mm ball bearing fans on front to make sure the system work steadily.
