The Toploong 8049-ETX-8-360 tower server chassis supports both rack-mounted and
Cloud storage, cloud computing, big data, security monitoring, etc.

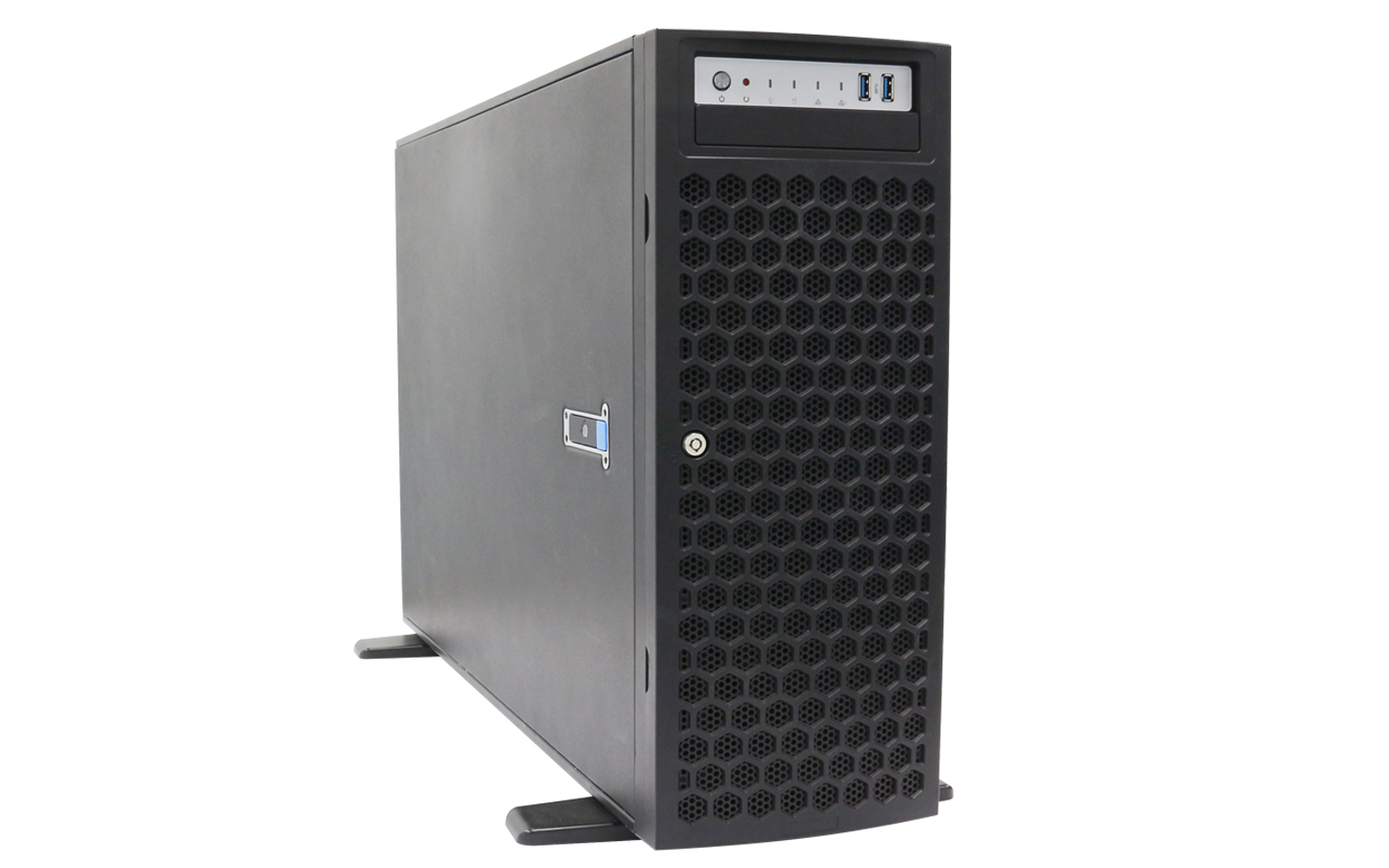

The Toploong 8049-ETX-8-360 tower server chassis supports both rack-mounted and vertical installation. It supports 8 front-mounted SATA/SAS/NVME hot-swappable hard drives (the NVME function is optional), and has 4 built-in 3.5-inch hard drive bays. It is compatible with motherboards with dimensions of 15.2"*13.2" or smaller (such as Supermicro X10DRG-Q/X11DPG-QT/X12DPG-QT6, TYAN S7106, etc.). It is compatible with the CRPS redundant power module + power board and supports 11 full-height PCIE expansion slots. It can accommodate 4 dual-width GPUs and supports mainstream Nvidia 3080/3090/4080/4090 GPUs. It comes standard with a 360 liquid cooling radiator for the radiator and 2 8038 ball-bearing fans. The front door panel features high-density air intake holes, ensuring a good heat dissipation air duct. It is widely applied in fields such as AI large model training, deep learning, rendering, and cloud computing.
Components | Specification |
Dimensions | 650(L)*437.5(H)*176.5(W)mm,Length excluding plastic panel. |
Materials | Ma Steel (Environmentally friendly, fingerprint-resistant, 1.0mm SGCC) |
Color | Black |
Drivers bay | 8 front-mounted 3.5" HDDs (compatible with 2.5" HDDs/SSDs) |
Optical drive bay | 1 front-mounted ultra-thin optical drive bay |
Hard drive backplane | It comes standard with a 6Gb SATA backplane. At the same time, the following backplanes are optional: |
①、12Gb Mini - SAS HD direct - connect backplane | |
②、SATA/SAS/NVME Tri - mode Backplane | |

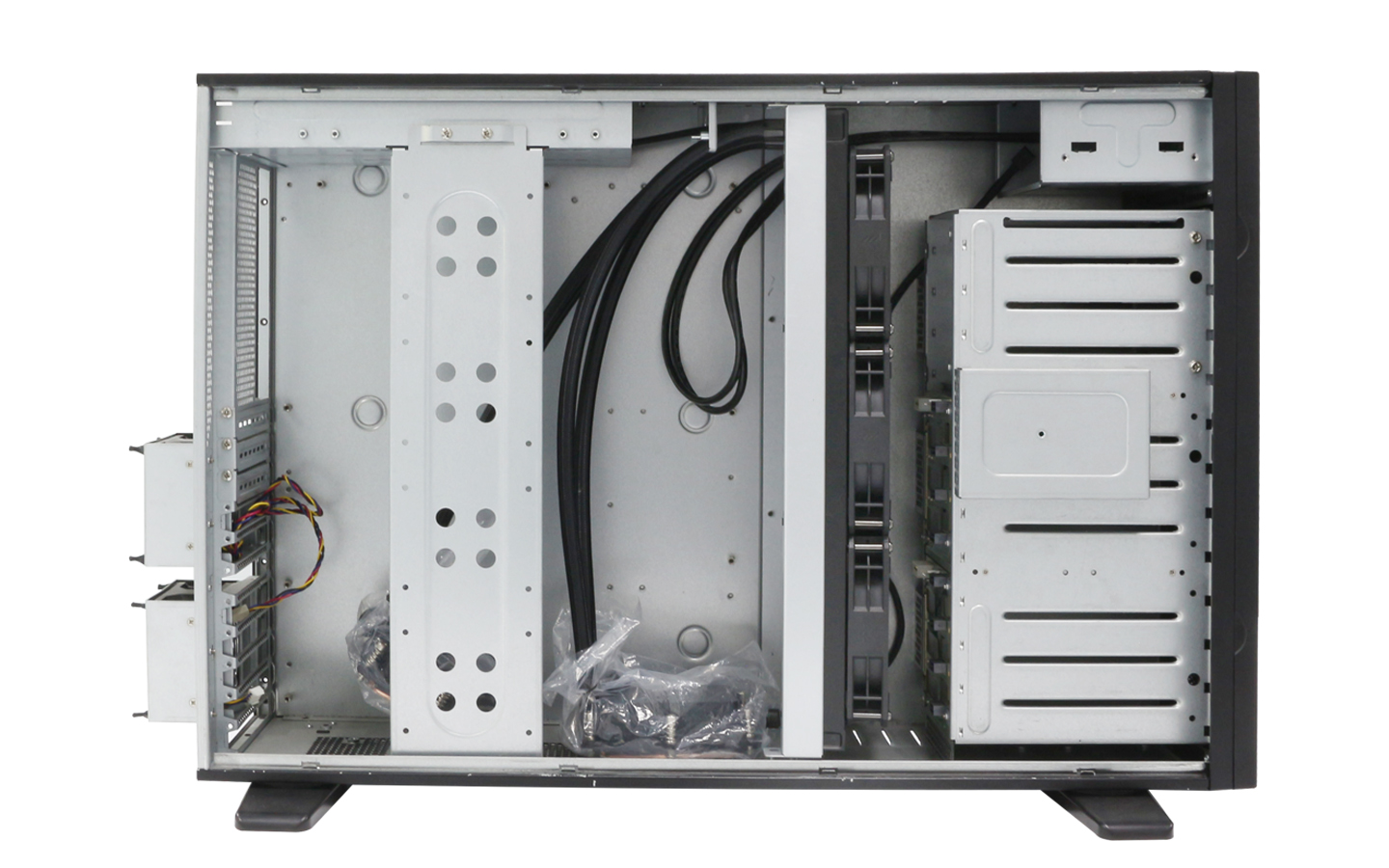

Cooling Fan | It comes standard with 1* 360 liquid cooling radiator for the radiator and two 8038 ball-bearing fans. |
Applicable motherboards | It supports motherboards with dimensions of 15.2"*13.2" and below, such as Supermicro X10DRG-Q, X11DPG-QT, X12DPG-QT6 and TYAN S7105. |
I/O | 11 full-height PCI/PCIE expansion slots, installed vertically. |
External interfaces | 2 * USB 3.0 |
System control | 1*Power LED,1*Reset,1*Power SW,1*HDD LED,2*NIC LED |
Applicable power supply | CRPS redundant power supply module + power board |
Applicable fields | The fields of AI large - scale model training and inference, HPC, cloud computing, and big data. |
