Toploong tower chassis has dimensions of L636W280H570MM. It is equipped with one
It is suitable for application scenarios including HPC (High - Performance Computing), big data analysis, 3D graphics applications, video decoding, deep learning, scientific computing, etc.

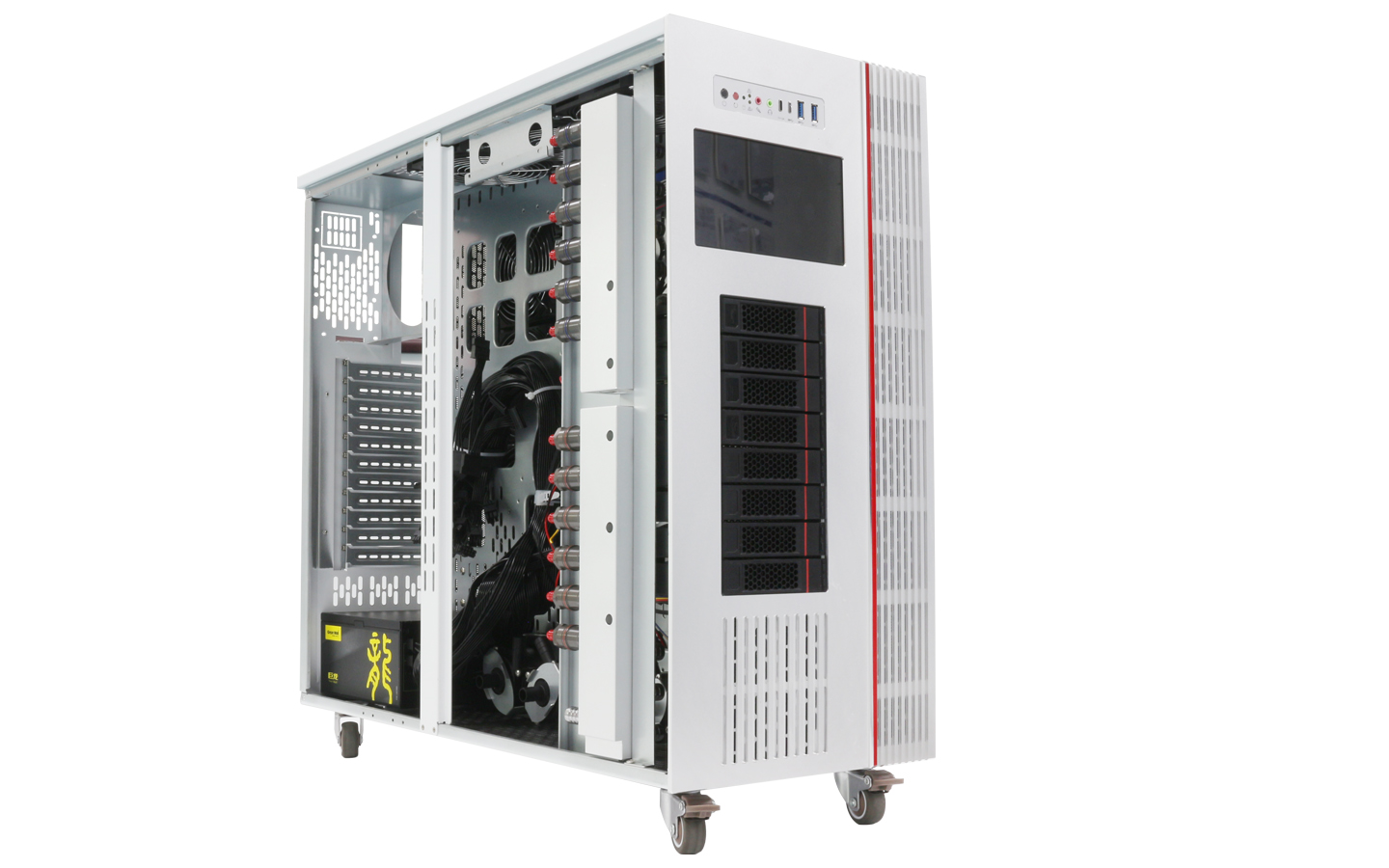

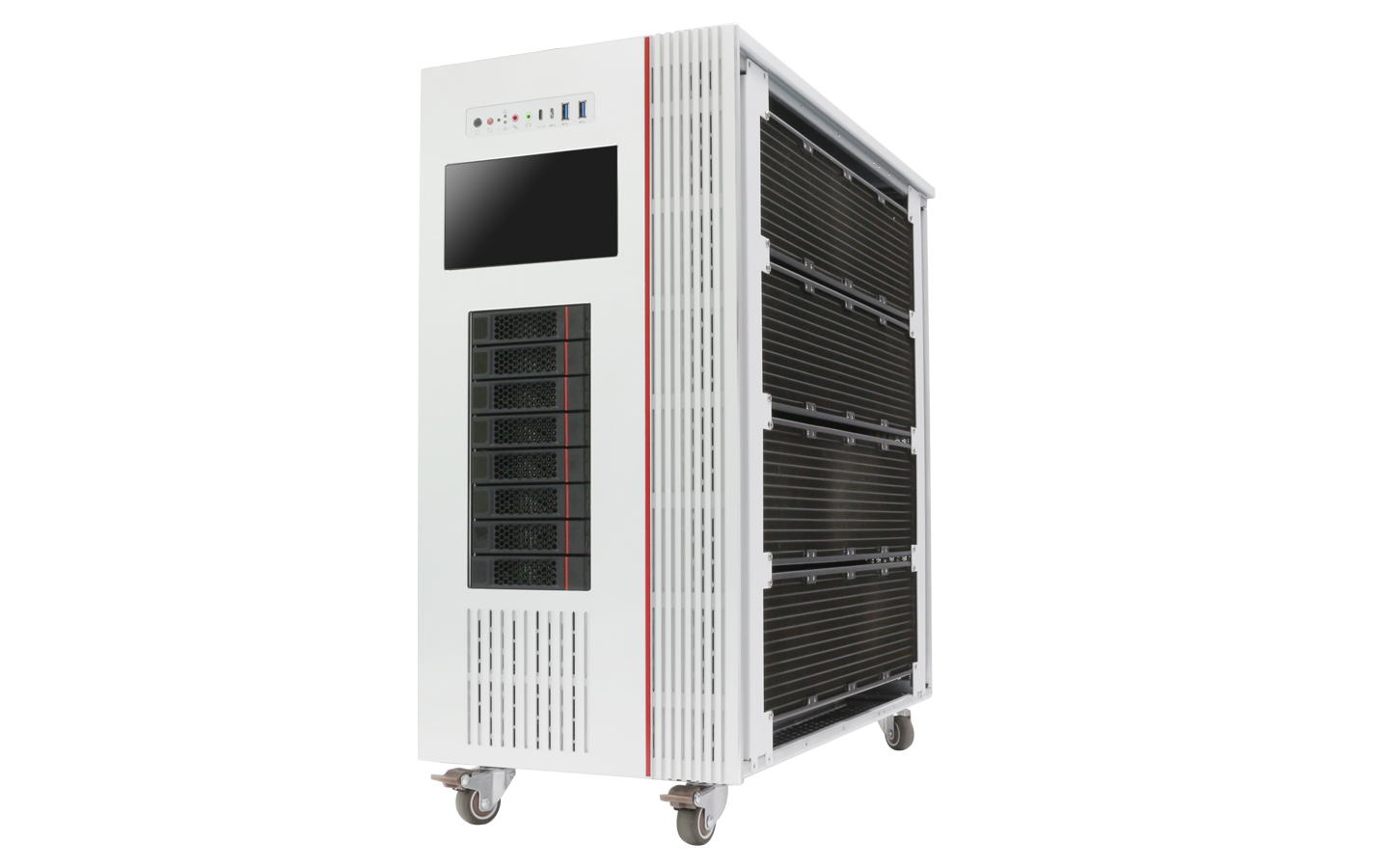

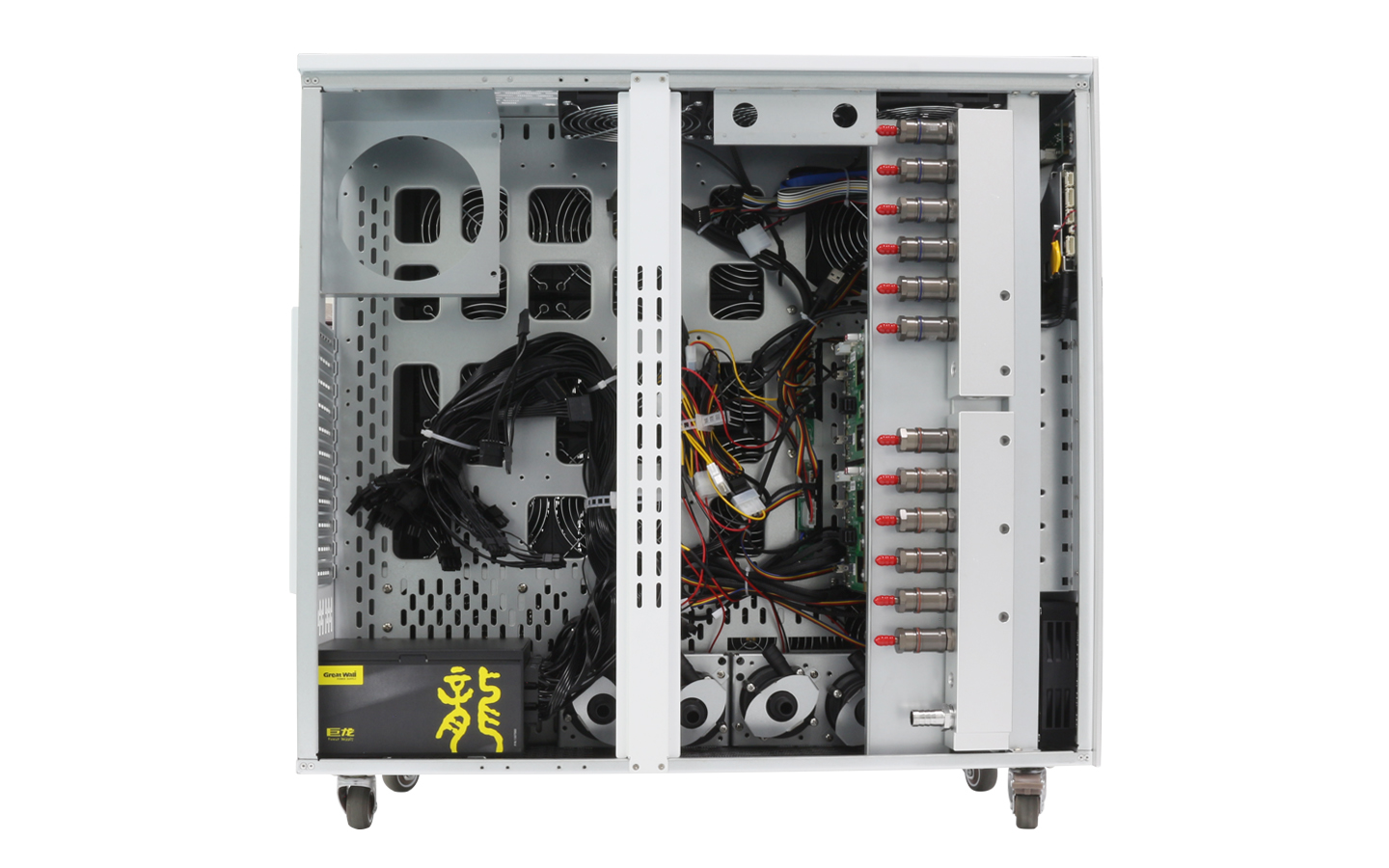

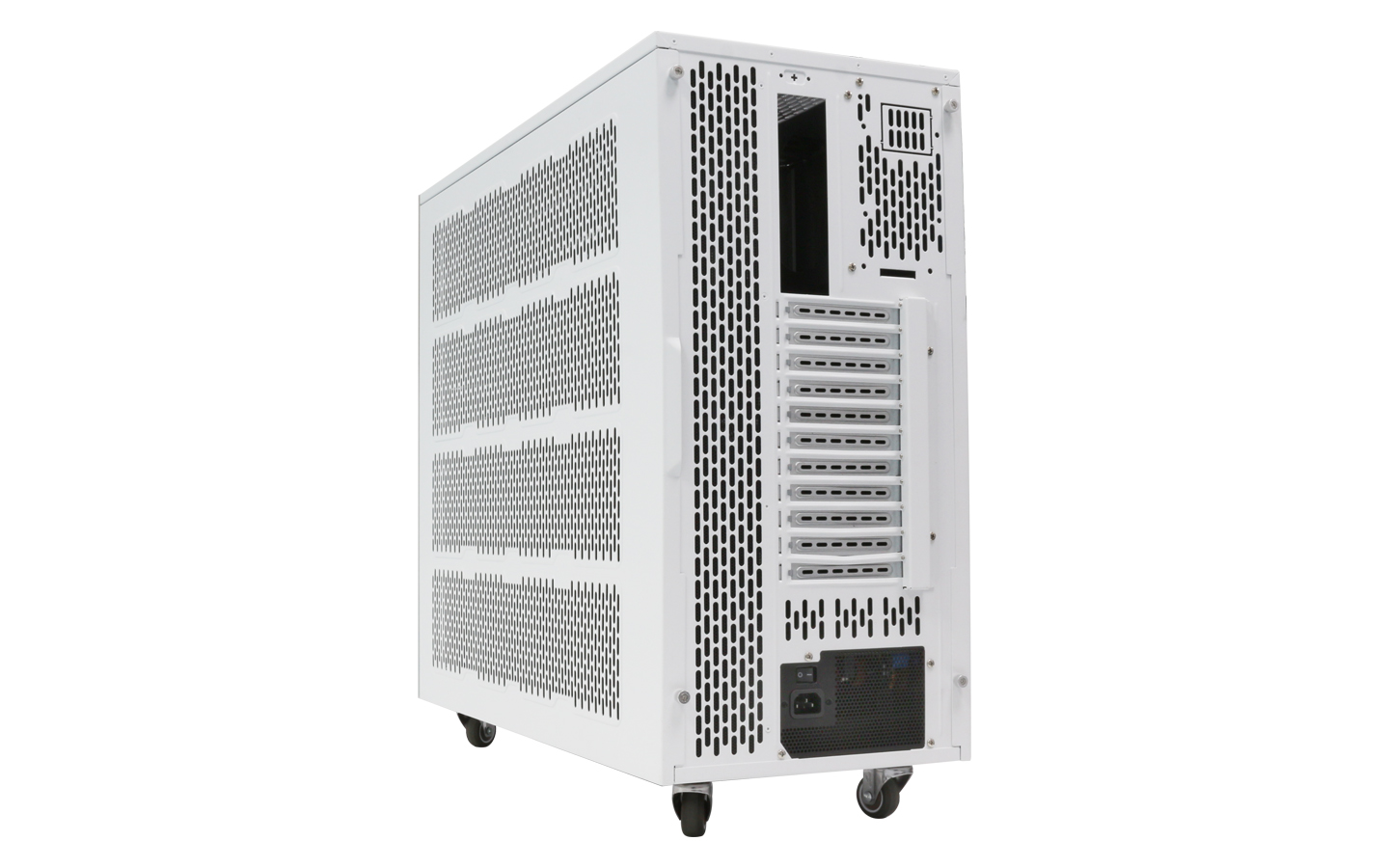

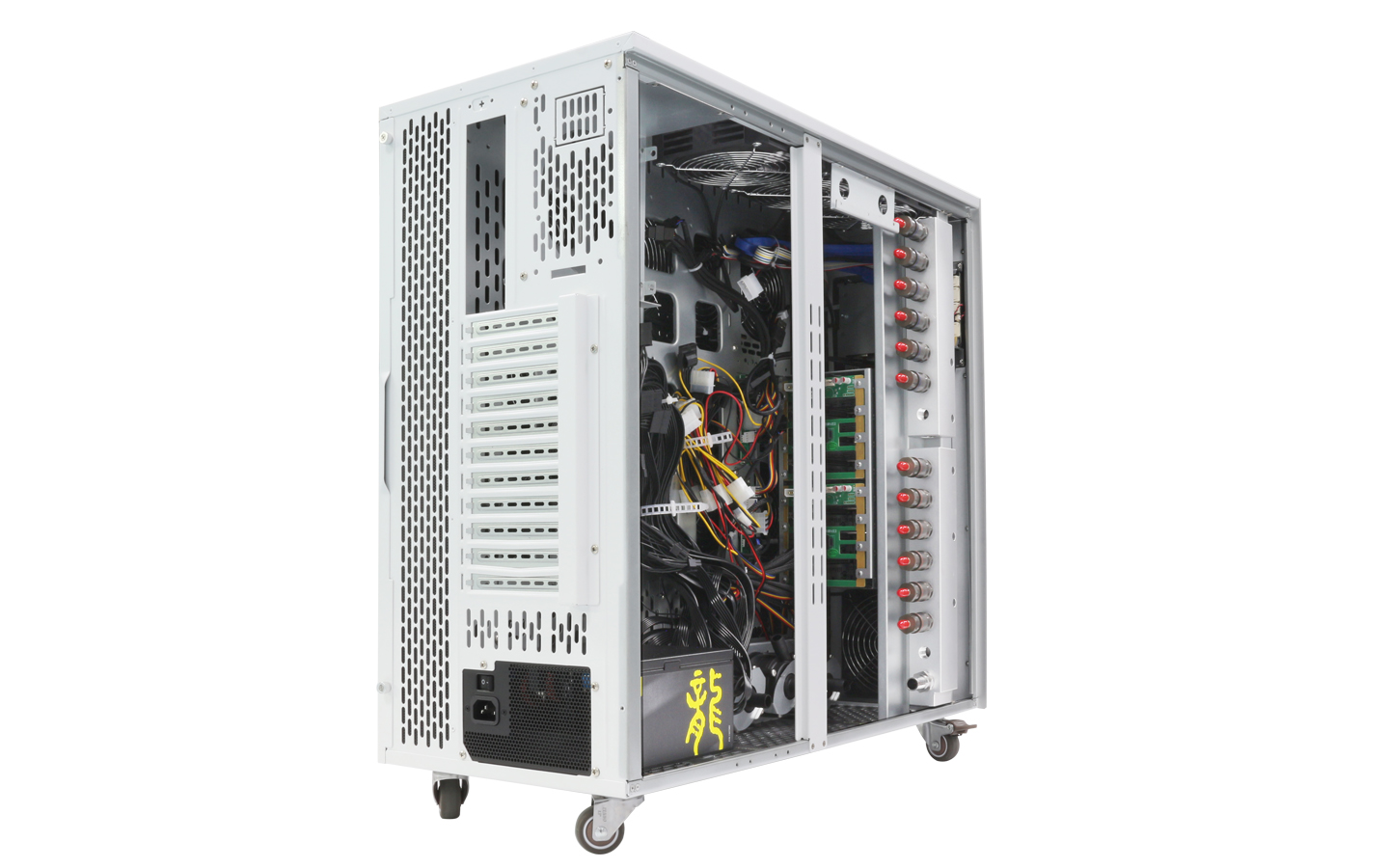

Toploong tower chassis has dimensions of L636×W280×H570MM. It is equipped with one set of 8 - bay 3.5 - inch hard disk backplanes and supports 4*480mm cooling radiator positions (using a water distribution header design). It demonstrates extraordinary strength in computing performance, expansion capability, temperature control, and stability, maximizing meet the development and application needs of emerging fields such as artificial intelligence. It is suitable for application scenarios including HPC (High - Performance Computing), big data analysis, 3D graphics applications, video decoding, deep learning, scientific computing, etc.
| Component name | Detailed specifications and parameters |
| Dimensions(mm) | L636 * W280 * H570MM |
| Materials | Masteel (environmental protection, fingerprint resistant 1.0mm SGCC) |
| Cold ranking/Fan position | The top of the chassis can support 3*120mm fan slots, the left side of the front panel can support 1*120mm fan slot, and the right side can support 4*480*38mm cooling radiators. |
| GPU | Supports 4 GPU cards |
| Adaptive motherboard | Standard EATX and below motherboards/Support Micro/Gigabyte (15.1*13.2 "11 slot) motherboards |
| Hard Drive Backplane | 1*8 - bay 3.5 - inch hard disk backplane (compatible with 2.5 - inch hard disks) |
| I/O | 11 full-height PCI / PCIE expansion slots |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*2 |
| Power supply | 2 ATX power supplies |
Display screen | 7-inch display displays CPU/GPU temperature, upload and download speed, hard disk temperature, upload and download speed |
| Applicable fields | Fields such as cloud computing, AI, big data, and deep learning |
