Cloud storage, big data, private cloud, distributed storage, security monitoring
| Components | Specification |
| Dimensions(mm) | 437.5mm x 600mm x 176.5mm, standard 19" rackmount chassis. |
| Materials | 1.0mm SGCC Zinc-Coated Steel. |

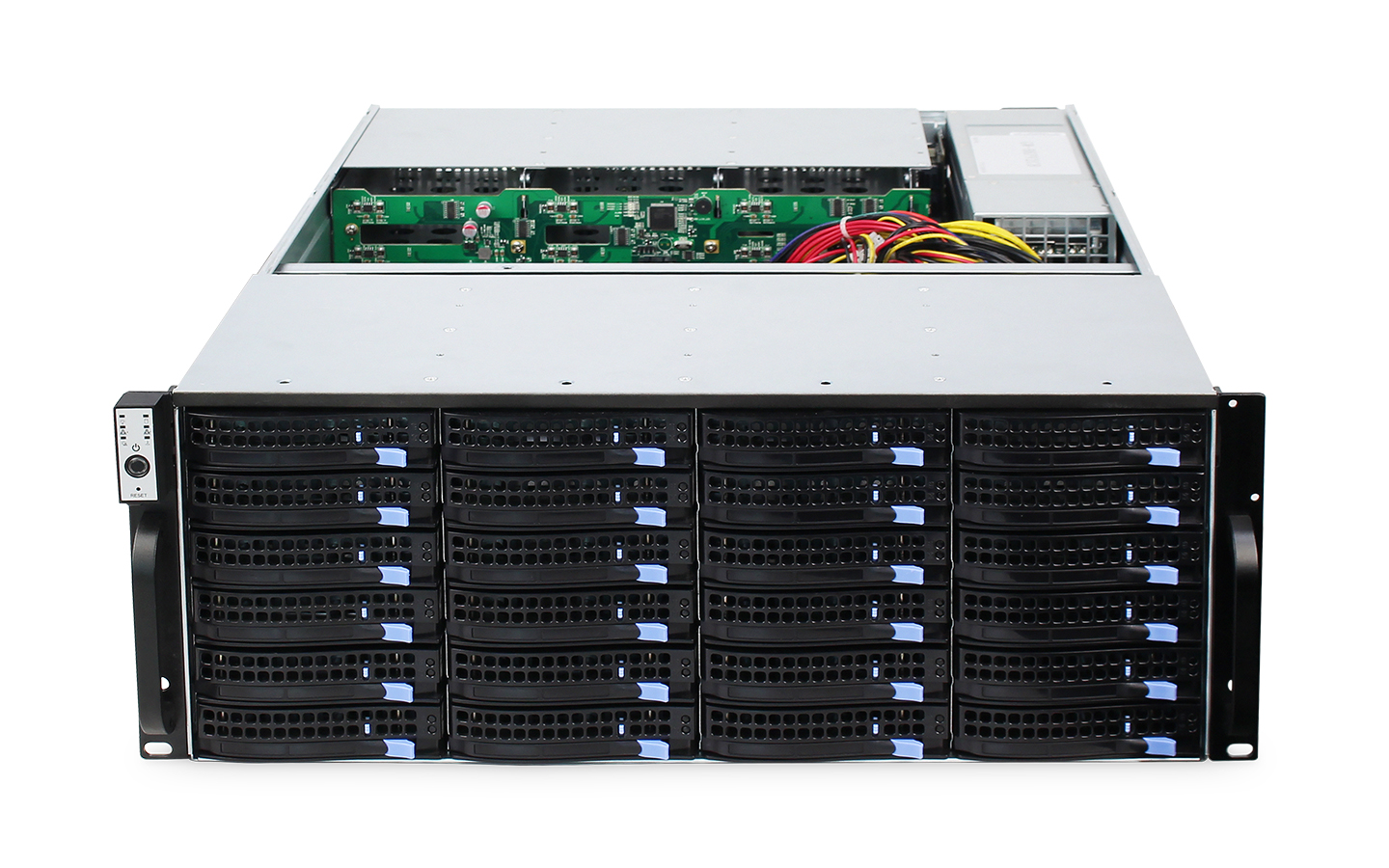

| Backplane | 12Gb/s Expander backplane (chip LSI 3X36R, interface SFF8643), with temperature control, SGPIO, Hard disk time sharing start. |

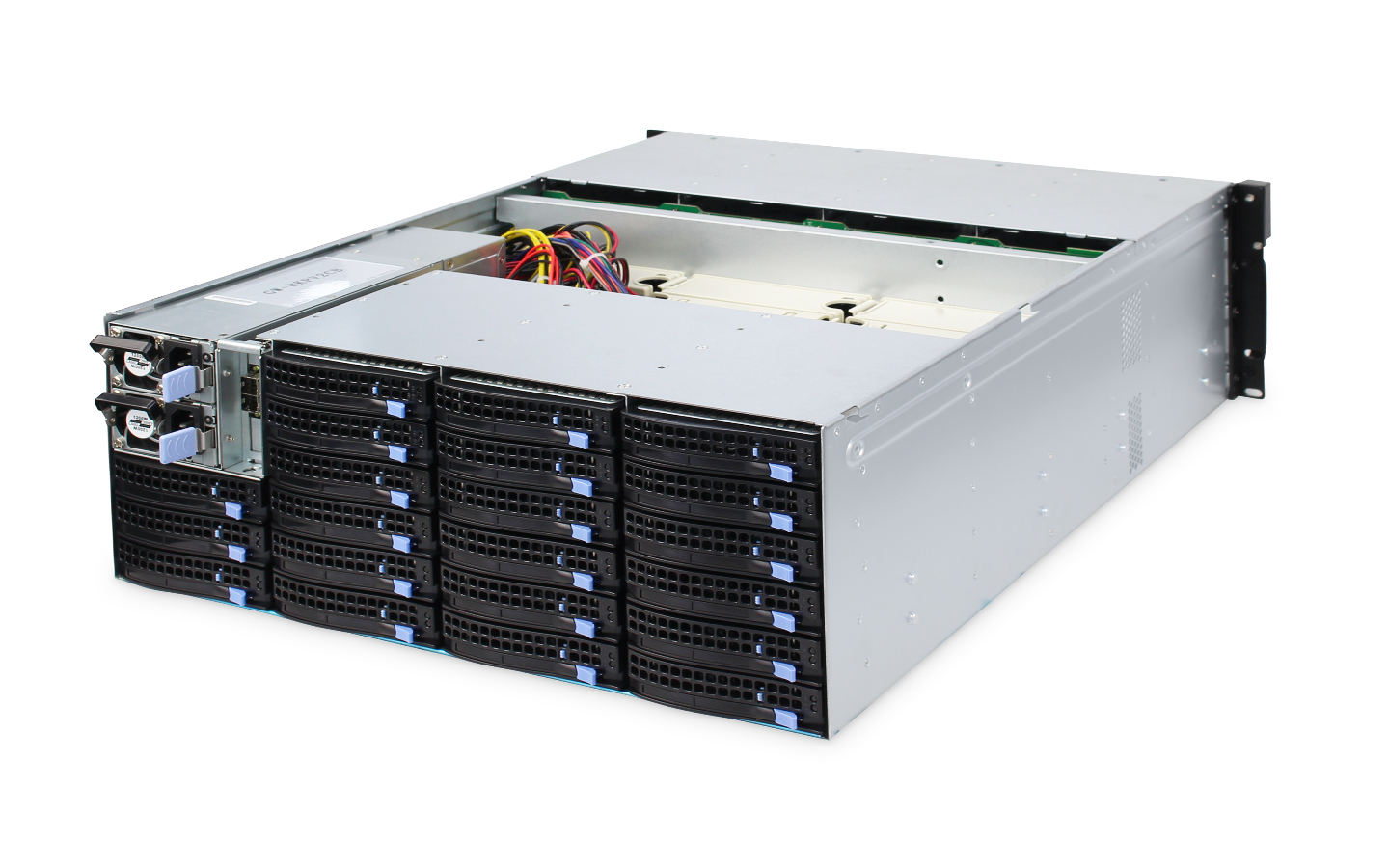

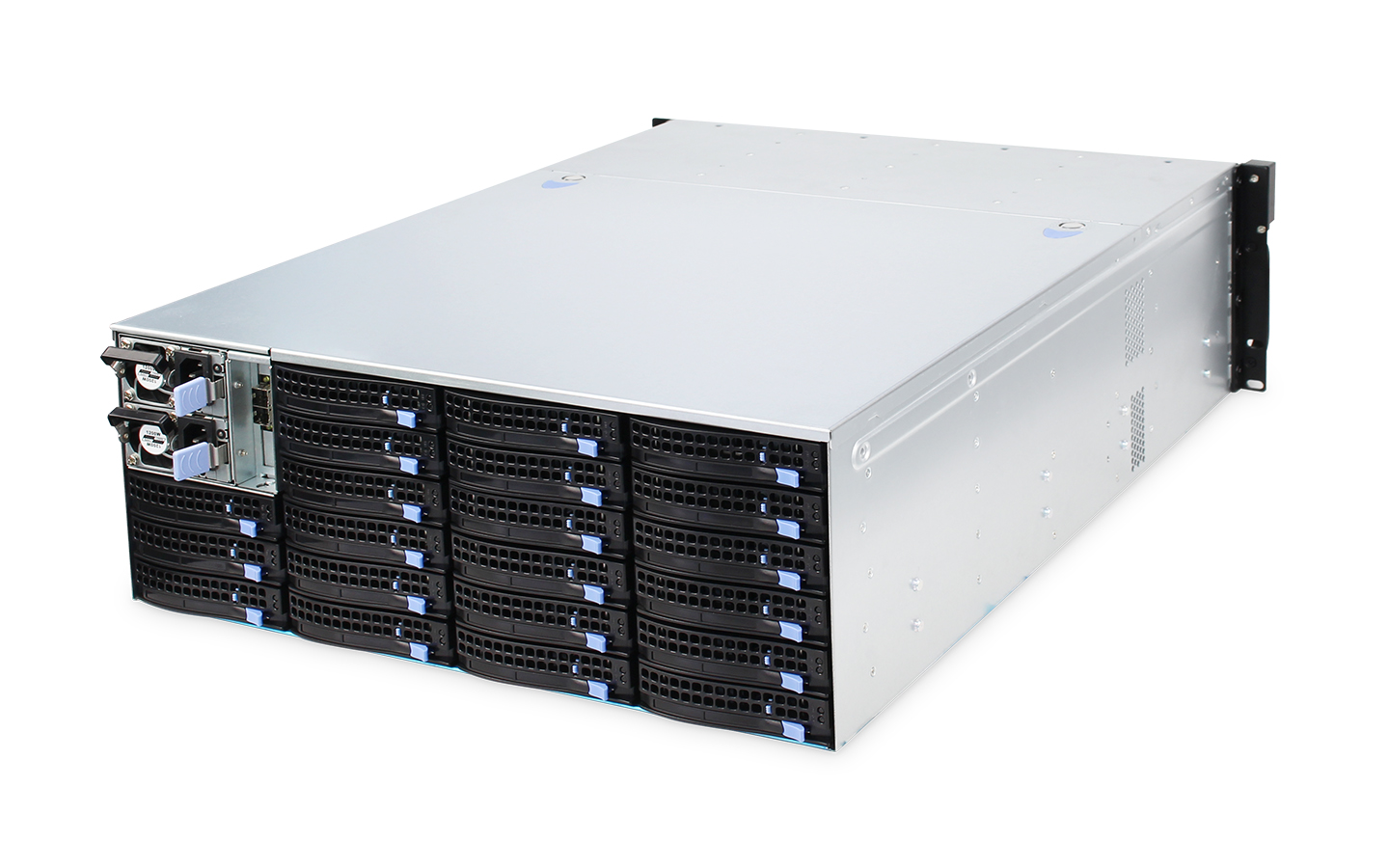

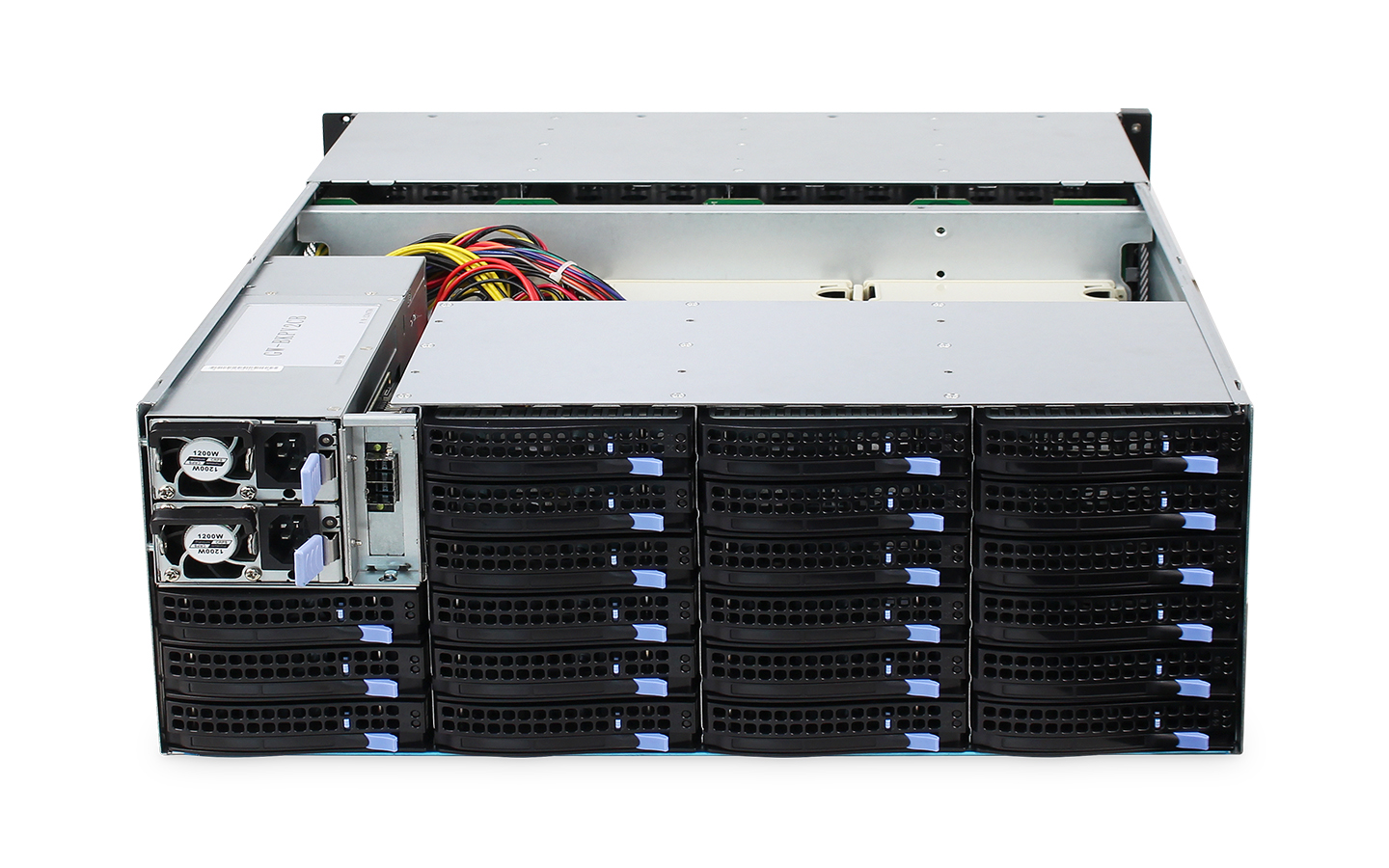

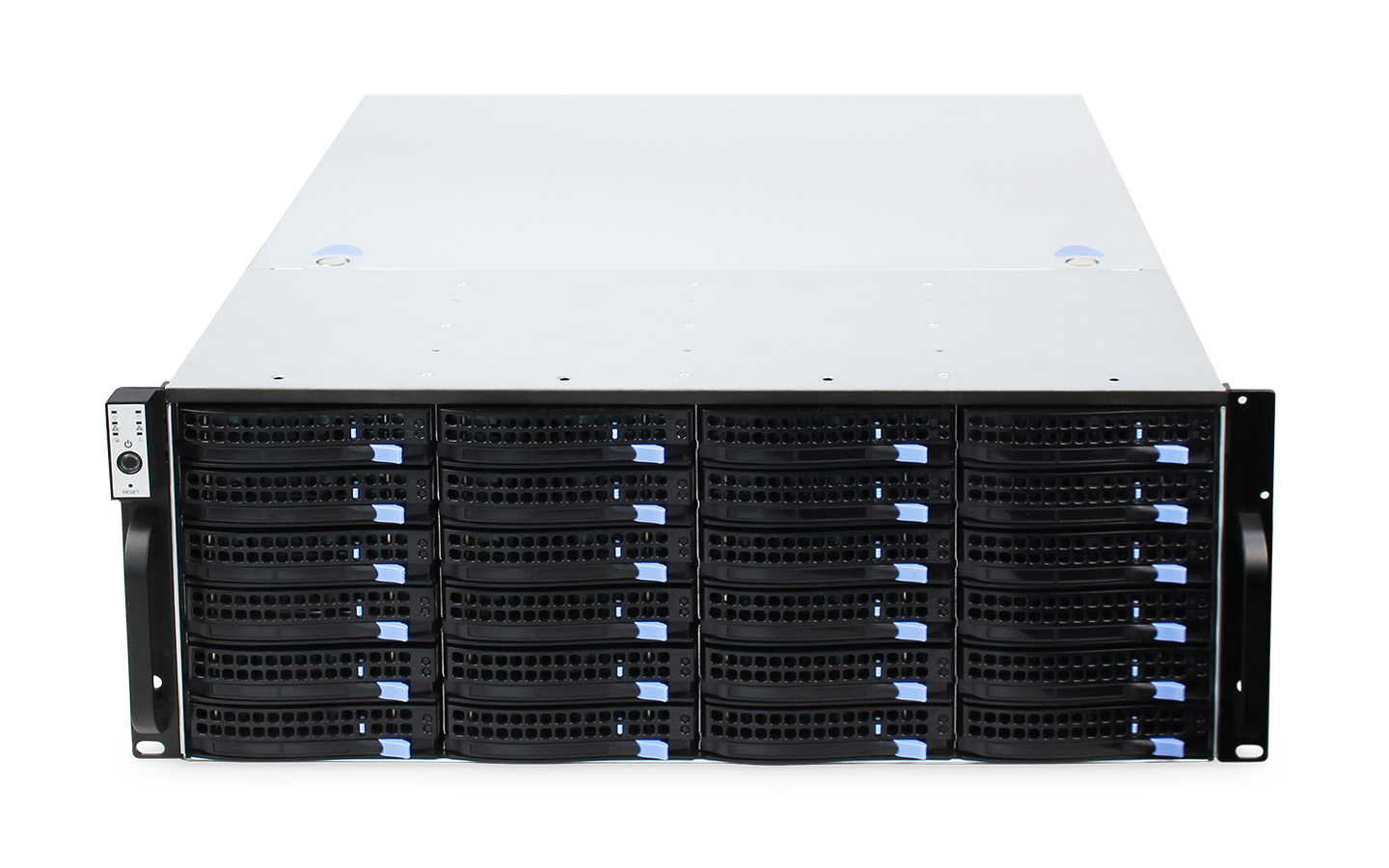

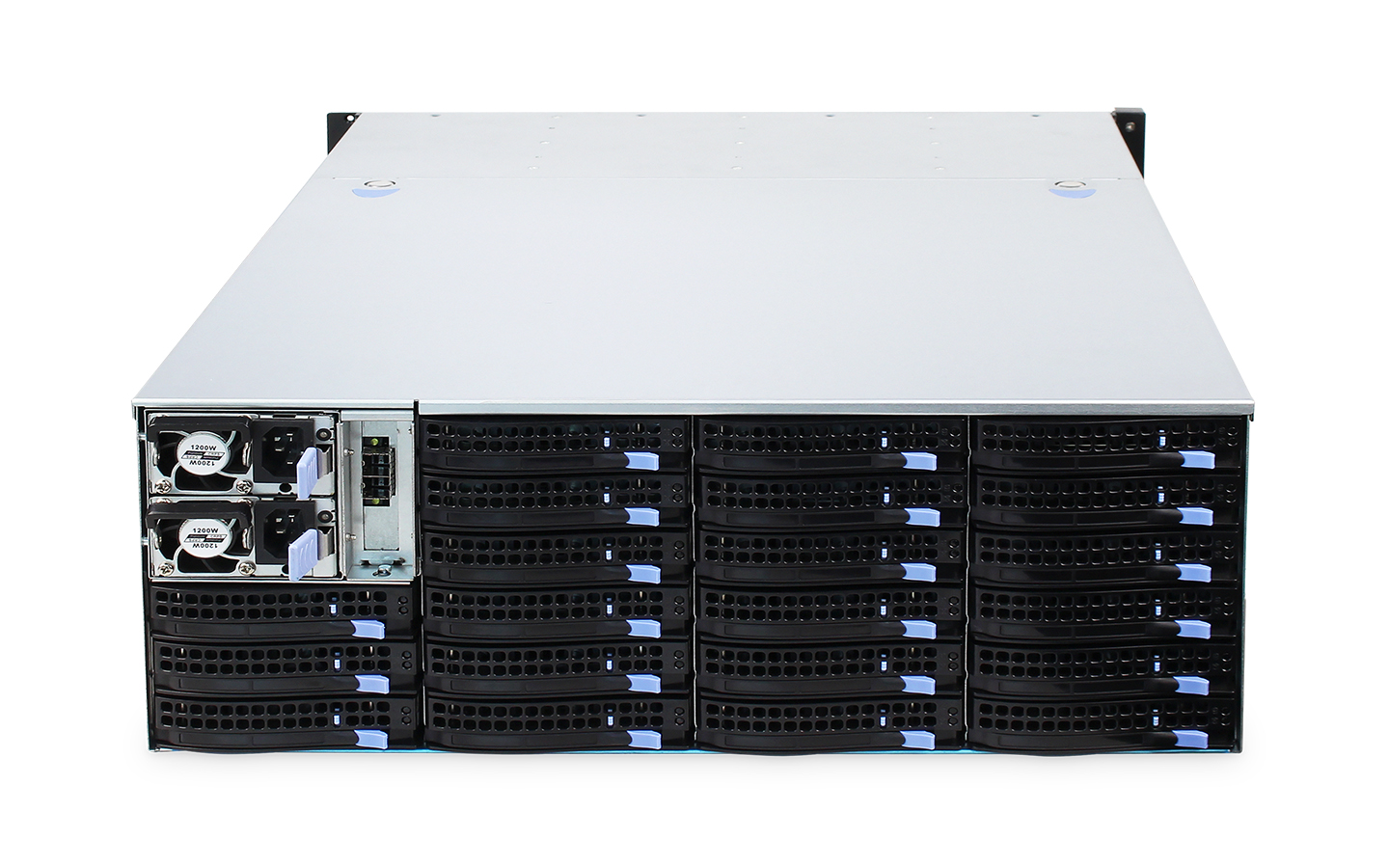

| Drivers bay | 24x3.5" hot-swap Sata/Sas drive bays (compatible with 2.5" HDD / SSD) in front, 21x3.5" hot-swap Sata/Sas drive bays (compatible with 2.5" HDD / SSD) in the rear. |
| Cooling Fan | 5pcs 120mm hot-swap fans. |
| PSU form factor | Redundant power supply. |

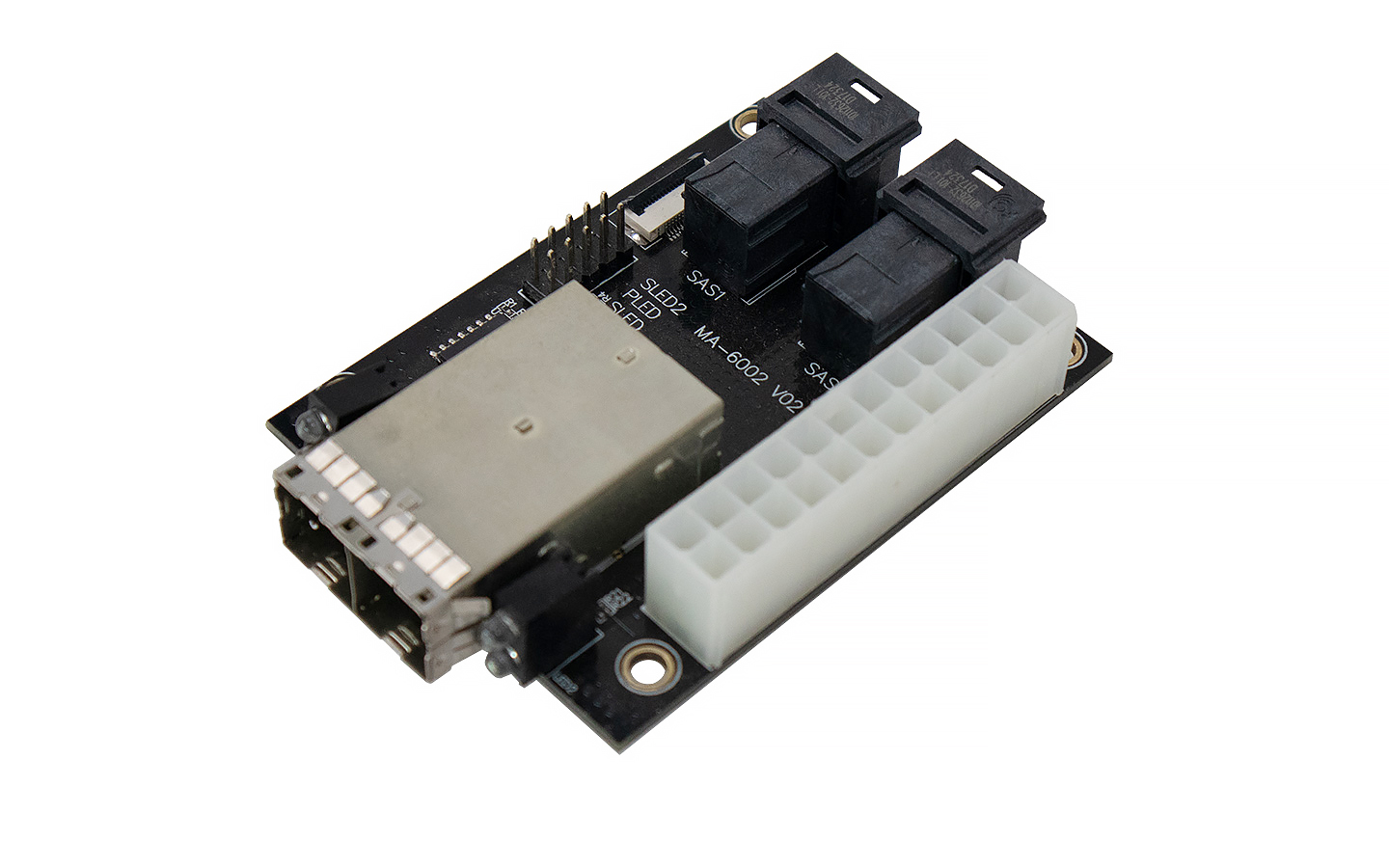

| M/B form factor | Expansion cabinet control board. |
| Connector | Two front accessible USB2.0 ports(Optional USB3.0). |
| System Control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1. |
| Applicarion | Cloud storage, cloud computing, big data, security monitoring, LOT, etc. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.Support motherboard size up to 12" x 10.5", and 24*3.5"HDD bays, redundant power supply. | |
| 3.The chassis has good ventilation system 5pcs 120mm hot-swap fans to make sure the system work steadily. | |
