Product model:IPC5509 All-in-One Machine

Product category:Industrial all-in-one machine

Product Introduction:

Toploong IPC5509 All-in-One MachineDimensions: 551.2mm (Length) 428mm (Width)

Application field:

ndusrrial control, IOT, machine automation, communication, etc.

Overview
Technical Parameter
Dimension
Data download

Overview

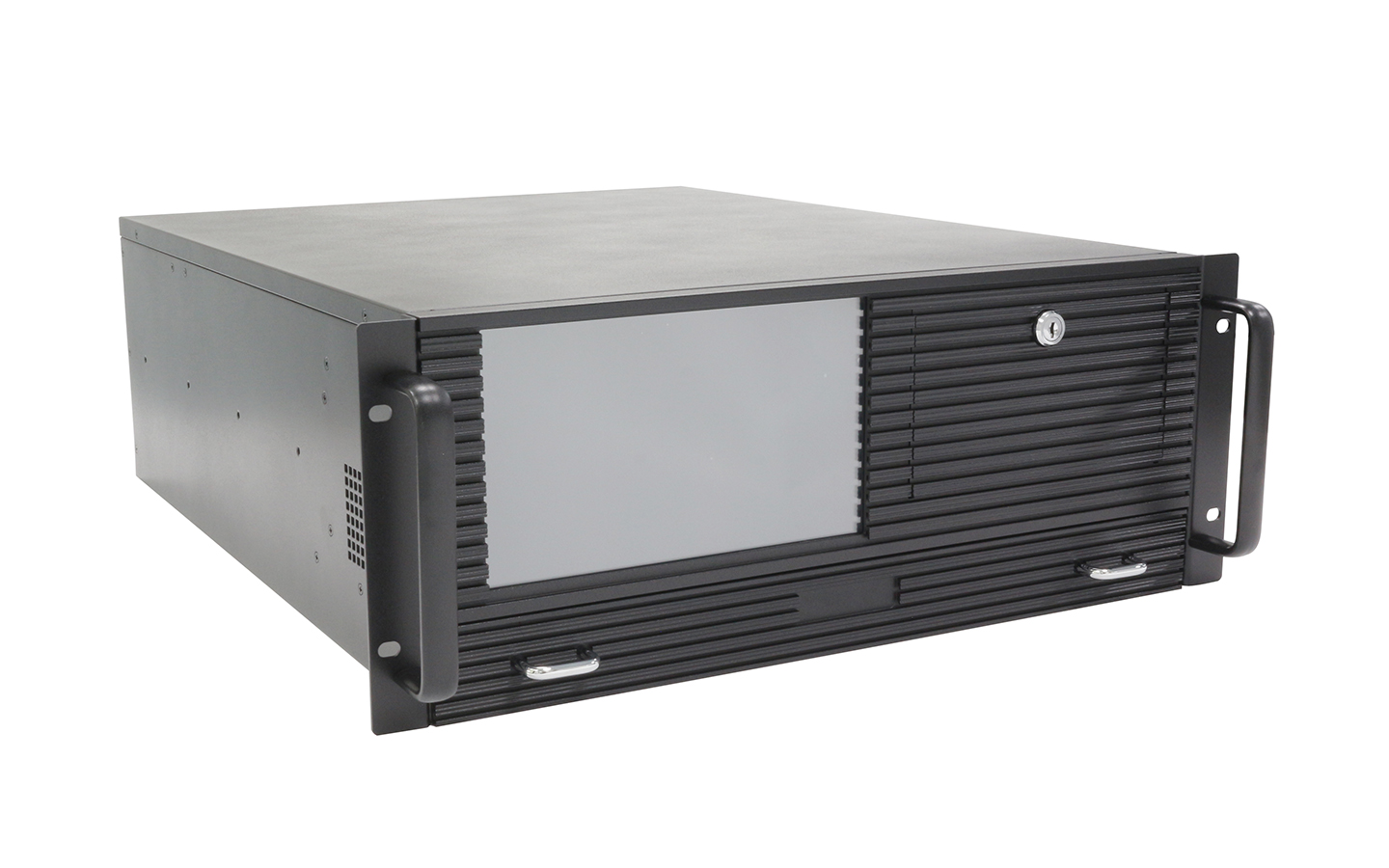

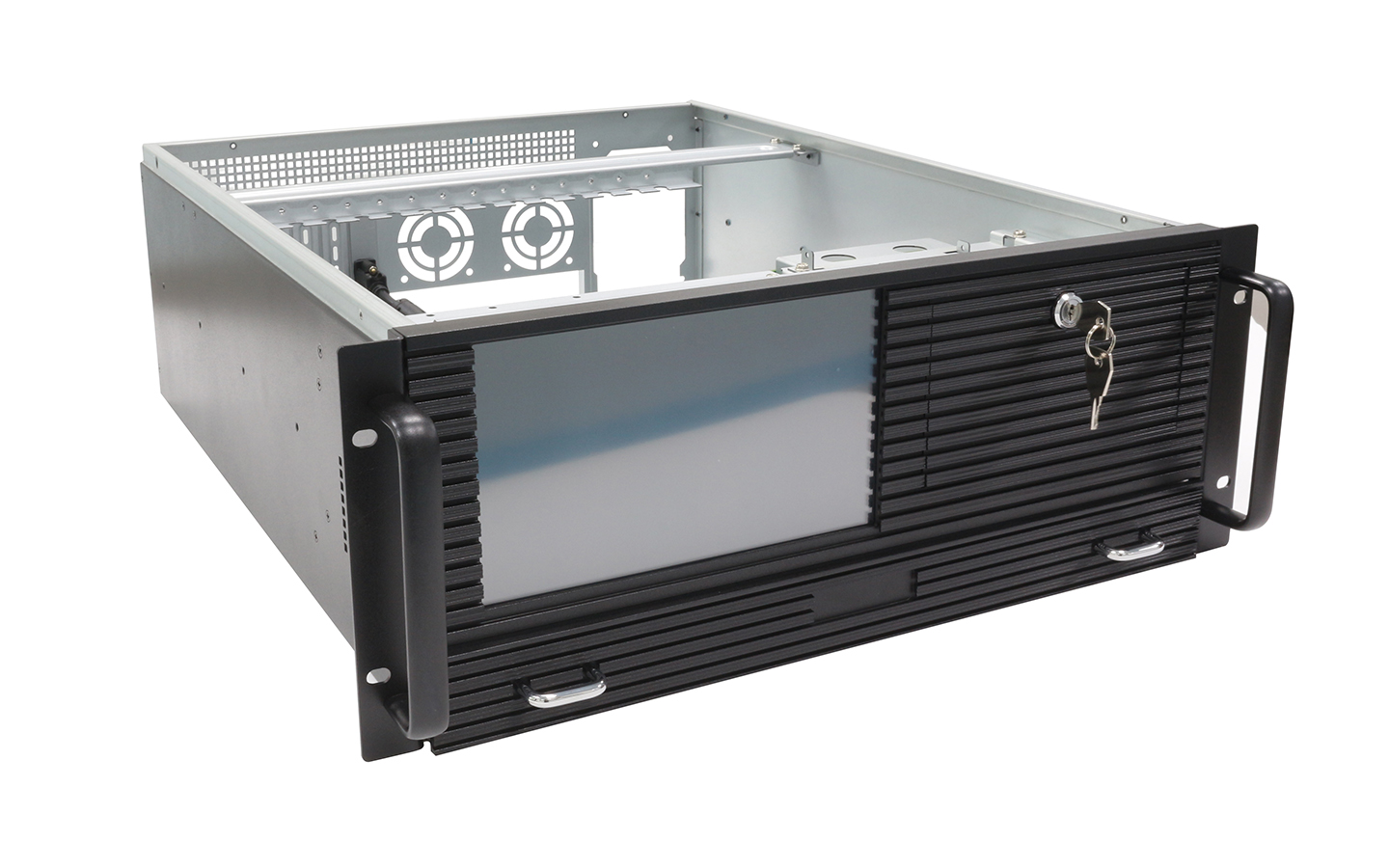

Toploong IPC5509 All-in-One Machine
Dimensions: 551.2mm (Length) × 428mm (Width) × 177.6mm (Height), 4U height, standard rack-mountable structure.

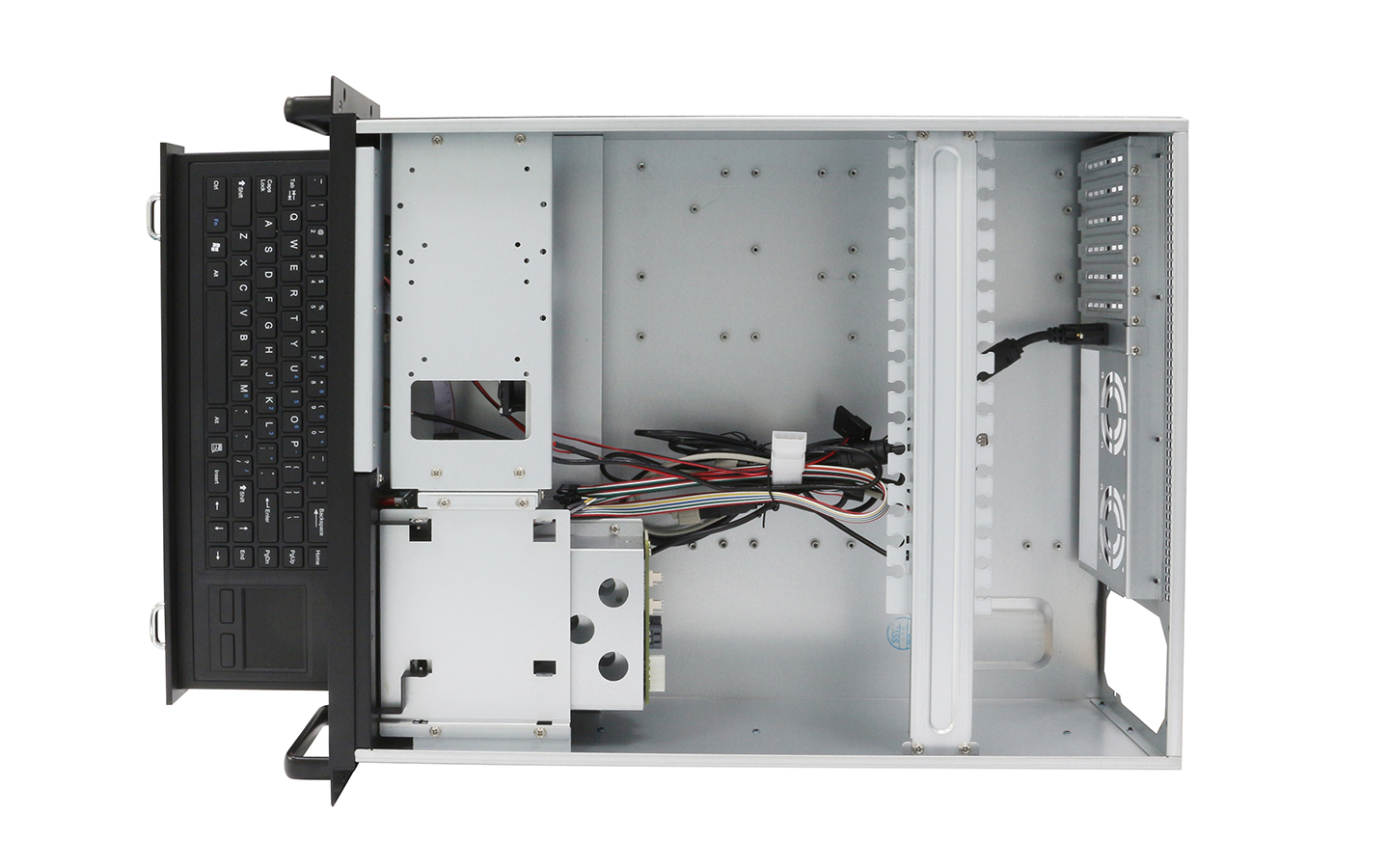

Motherboard Compatibility: Supports standard motherboards within 12×13 inches.
Storage: Features 3×3.5" hard disk drive (HDD) bays.
Cooling System: Equipped with 2×8025 fans as standard, ensuring excellent heat dissipation.
Power Supply: Supports standard ATX power supplies.

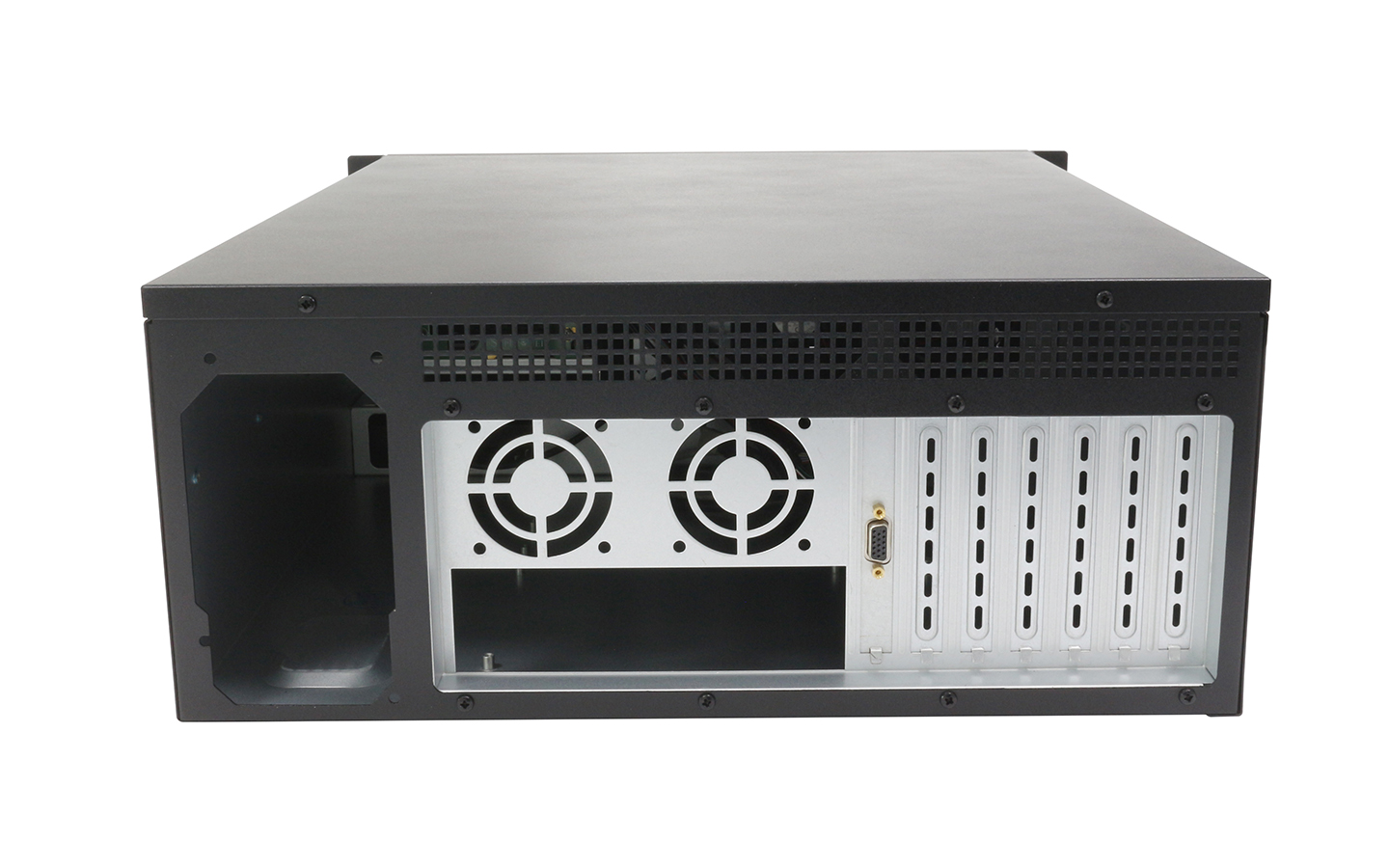

Expansion Slots: Provides 7 full-height PCI/PCIe expansion slots (vertical installation).
Display & Input Devices:

9-inch LCD screen: 210.7×126.4×3.5mm

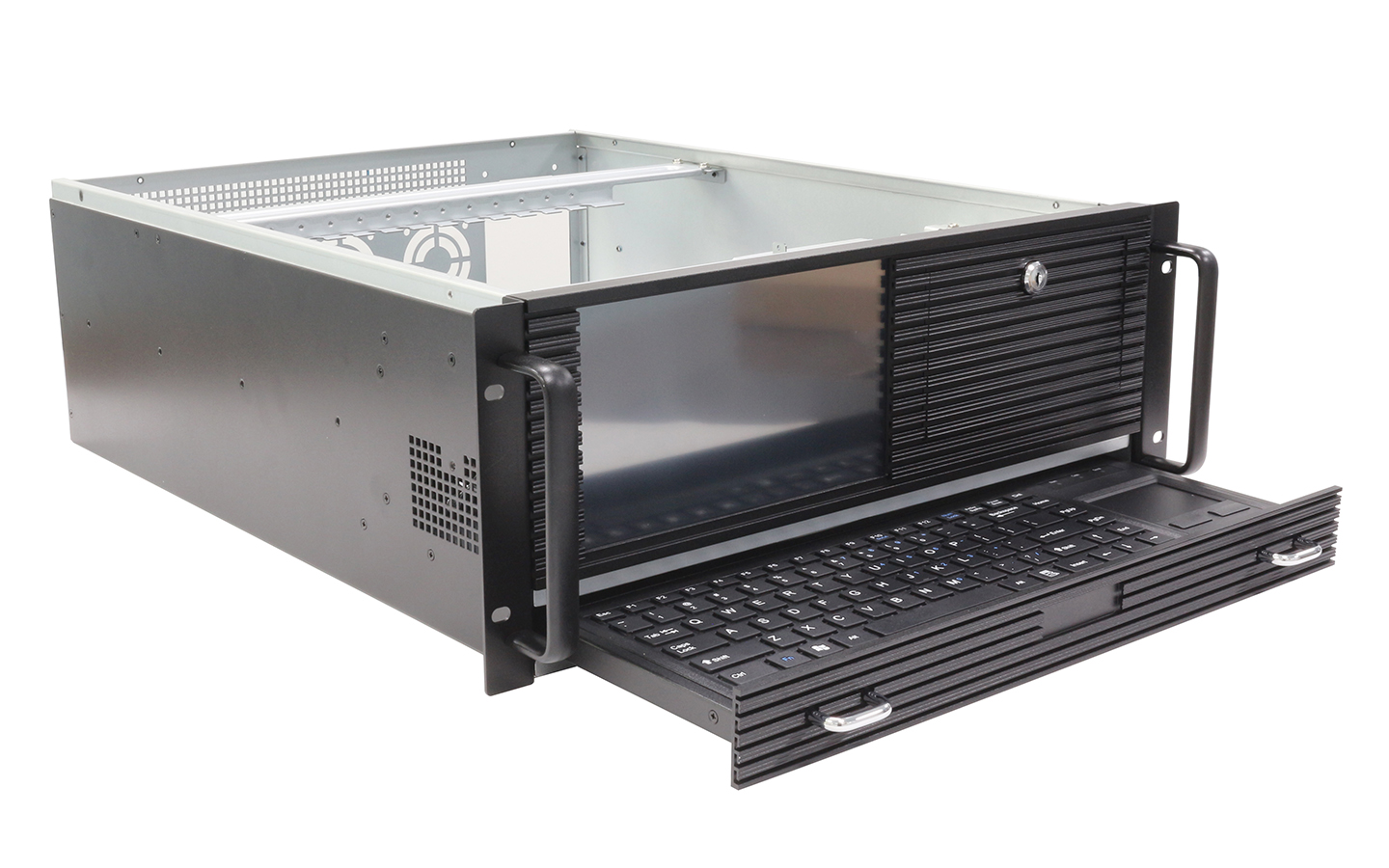

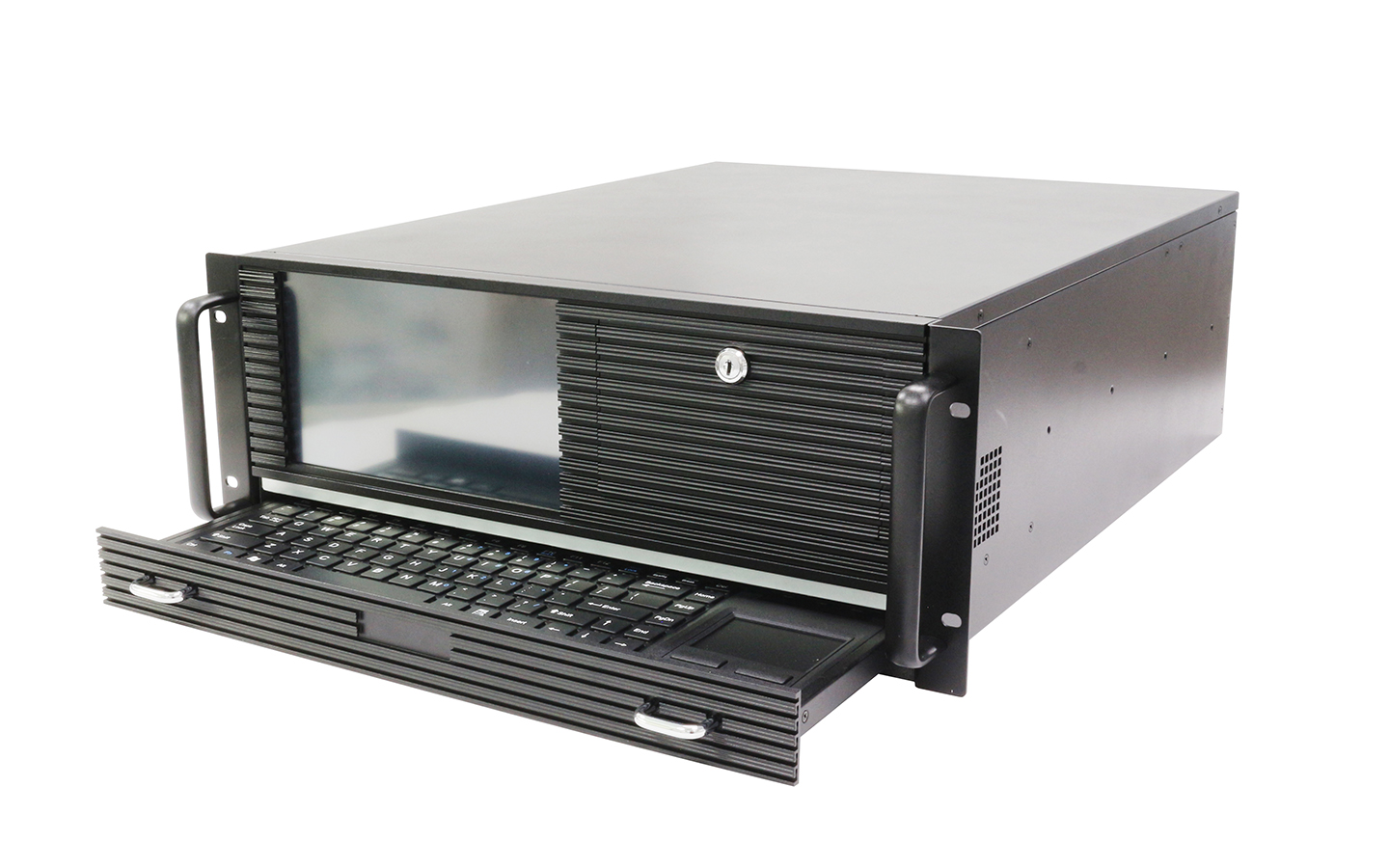

Mouse & touch keyboard kit: 87-key (F-style) touch keyboard + mouse, USB interface, slide rail design for easy operation.

Applications: Widely used in industrial control, intelligent transportation, mechanical automation, IoT (Internet of Things), and other fields.

Technical Parameter

Components	Specification
Dimensions(DxWxH)	L551.2W428H177.6M
Materials	1.0mm SGCC/Aluminum Alloy
Color	Handles and ear mounts: Sandblasted and anodized in bright black.Front panel components: Sprayed with sand texture black paint (KC-31084).Other steel plates: Maintain natural metal color (unpainted).
HDD bay	2 front hot-swappable 3.5" HDD bays (compatible with 2.5" drives), plus 1 internal 3.5" HDD rack or 2 internal 2.5" SSD racks.
HDD backplane	2 - bay SATA backplane (6GB/s), dimensions: 112.4×49.5×2.5mm, with two small 4 - pin power connectors (no temperature control).
power supply	Standard ATX Power Supply
screen/keyboard	9-inch LCD 210.7×126.4×3.5mm 1024×600 (RGB panel, 16-bit color depth) screen Touch keyboard and mouse kit
Fan bay	2×8025S fans, with large 4-pin male-female integrated connectors.
Epansion space	7 full-height PCI/PCIe expansion slots, vertically installed.
USB	2x2.0USB
System Control	Power LED1，Reset1，Power SW1，HDD LED1
M/B form factor	Standard motherboards under 12×13 inches
Applicarion	Indusrrial control, IOT, machine automation, communication, etc.
