G-4808-P4 AI inference chassis supports 8 double-width turbo GPU cards, 4 2.5-inch SSD slots in the front, 3 12038 hot-swappable ball fans as standard, and 4 8038 ball fans as standard on the rear wi

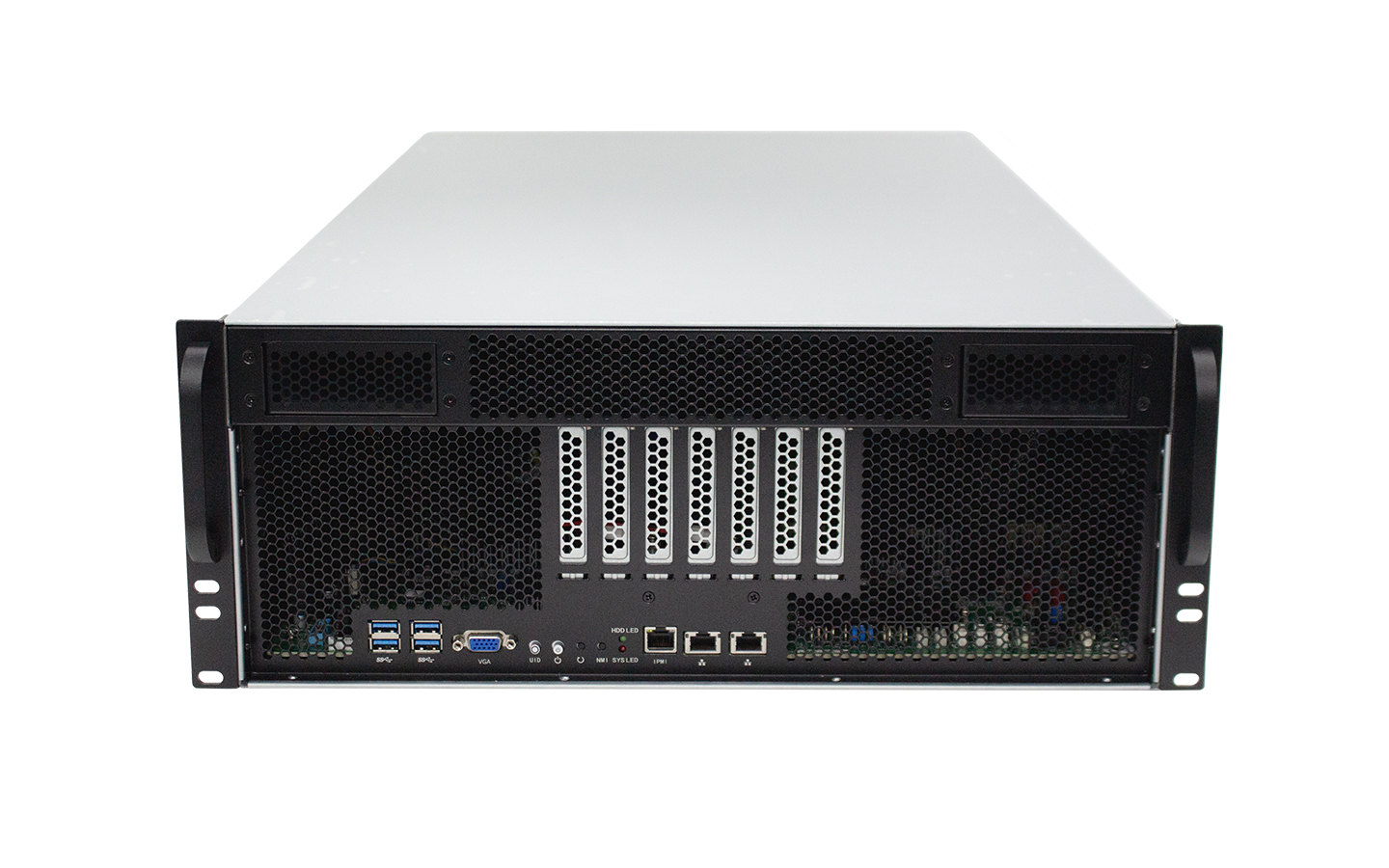

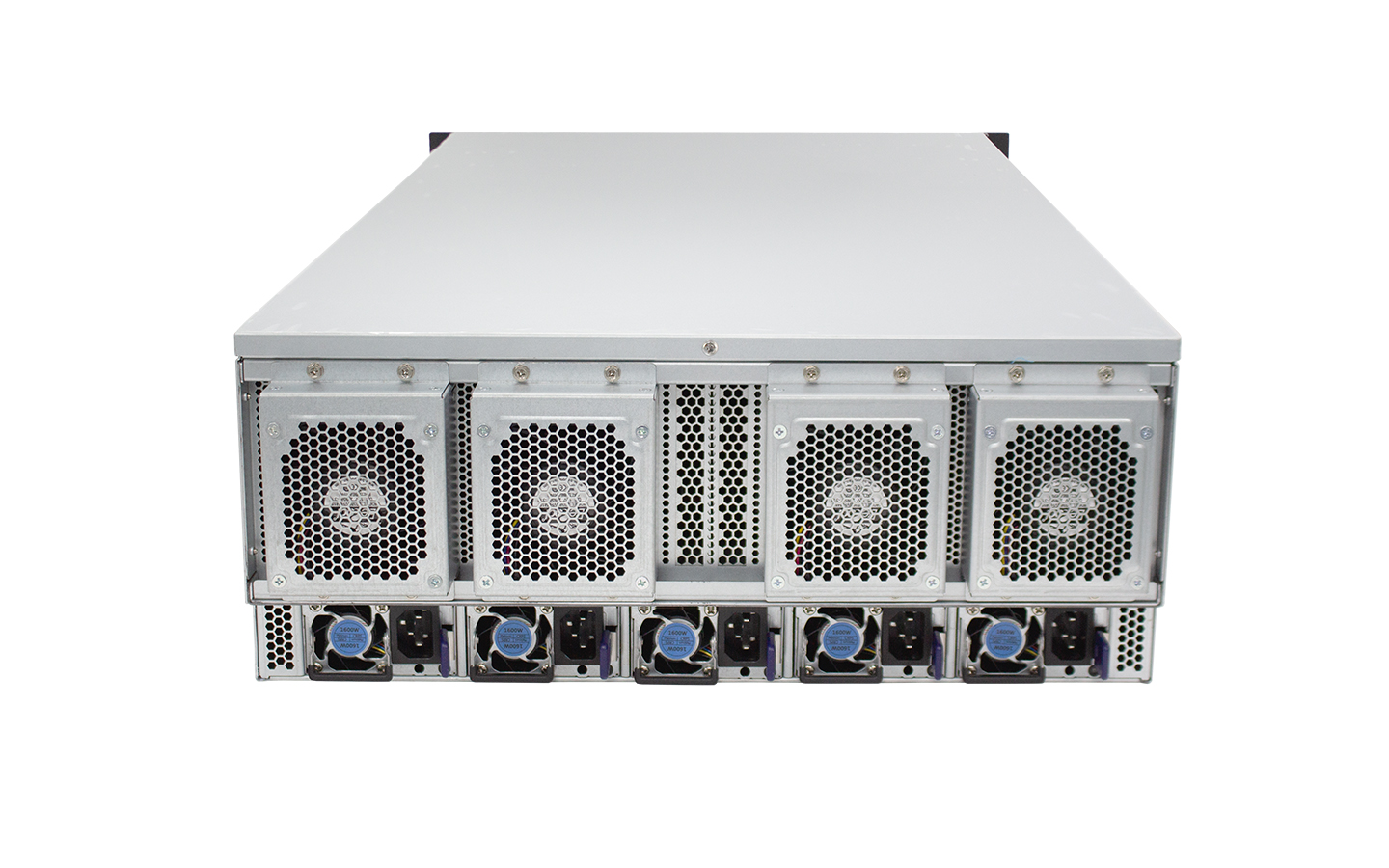

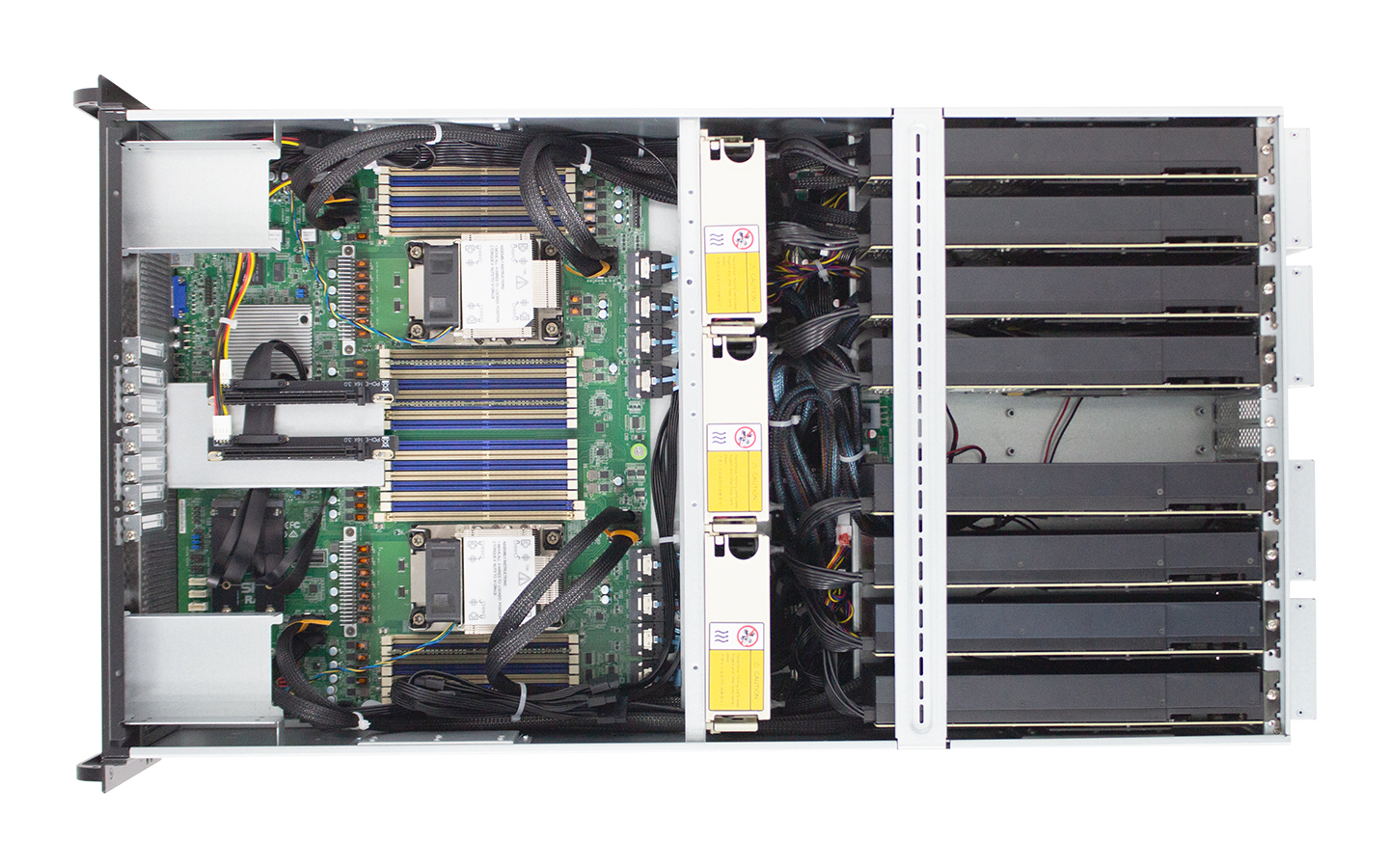

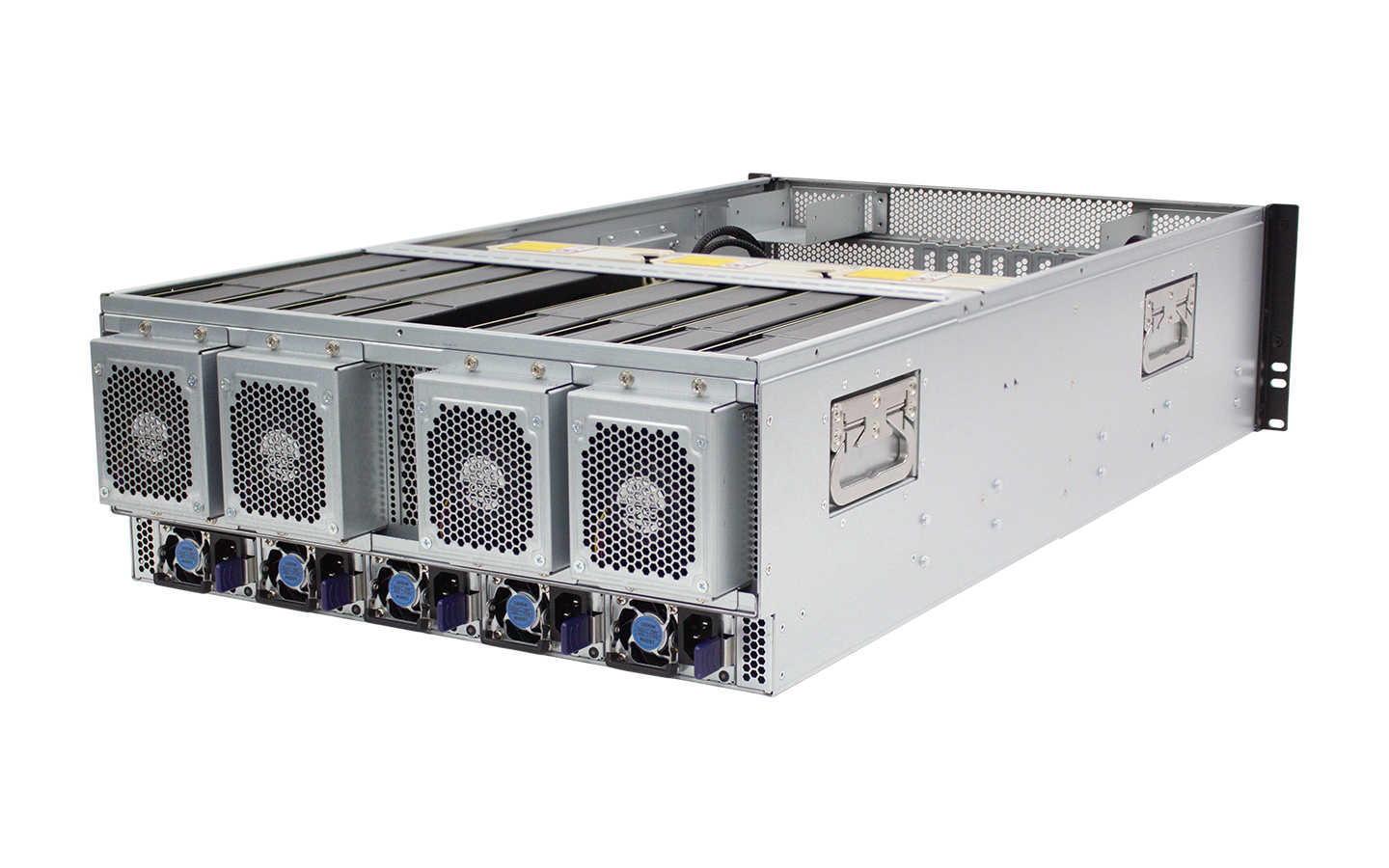

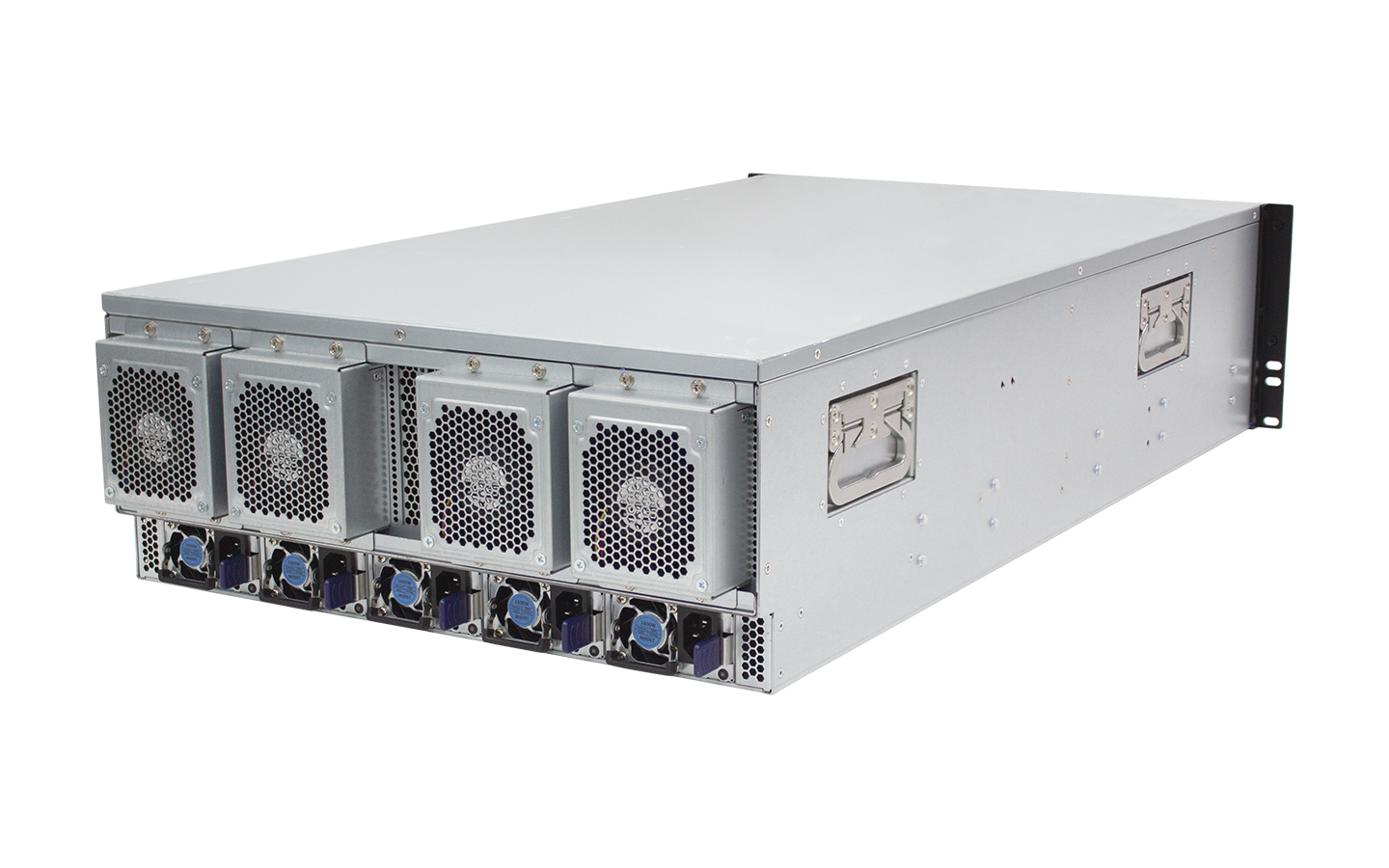

G-4808-P4 AI inference chassis supports 8 double-width turbo GPU cards, 4 2.5-inch SSD slots in the front, 3 12038 hot-swappable ball fans as standard, and 4 8038 ball fans as standard on the rear window. It has good heat dissipation performance, supports 5 standard CRPS power modules, 4+1 power supply mode, and is stable and reliable. The product is widely used in big data, cloud computing, HPC, AI, rendering, deep learning, edge computing and other scenarios, and performs well in GPU computing performance, storage expansion capabilities, system stability and other aspects, and can meet the development and application of emerging fields such as artificial intelligence to the greatest extent.
| Component name | Detailed specifications and parameters |
| Dimensions(mm) | 800 (L) * 437.6 (W) * 176 (H) |
| Main material | Magang (environmentally friendly, fingerprint resistant 1.2mm SGCC) |
| Surface treatment | The front panel assembly is sprayed with sand grain black, and the rest is natural color |
| GPU | Supports 8 double-wide turbo GPU cards (length 270MM) |
| Hard disk space | Optional front 4*2.5-inch SATA or NVME backplane |
Fan position | Standard built-in 3 12038 hot-swappable fan positions and 4 rear 8038 ball fans (high air pressure/high air volume) |
| Motherboards | Supports 16.53" x 13.79" motherboards, the motherboard needs to have at least 16 PCIE4.0 X8 interfaces |
| I/O | 7 front PCI/PCIE expansion slots, 2 rear full-height PCI/PCIE expansion slots, expandable HBA card/RAID card/10Gb/25Gb/40Gb/100Gb network card, etc. |
| External interface | External interface 4 * USB 3.0 |
| System control | POWER LED*1，HDD LED*1，RESET SW*1，POWER SW*1，NIC LED*2 |
| Power supply | supports standard CRPS power module, 4+1 power supply mode |
| PCIE channel | 8*PCIE4.0 X16 |
| Applicable fields | AI reasoning, rendering, HPC, deep learning and other fields |
