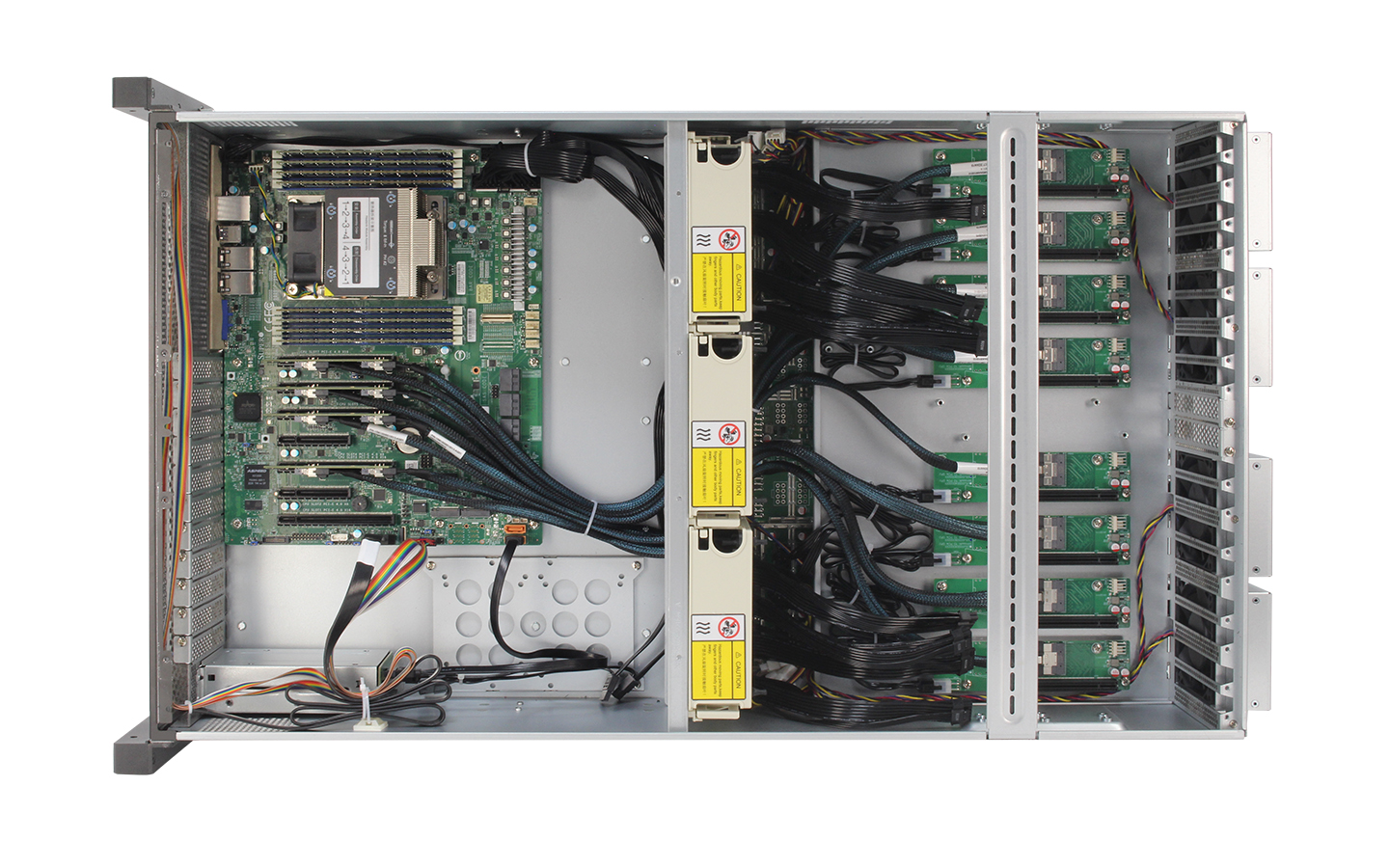

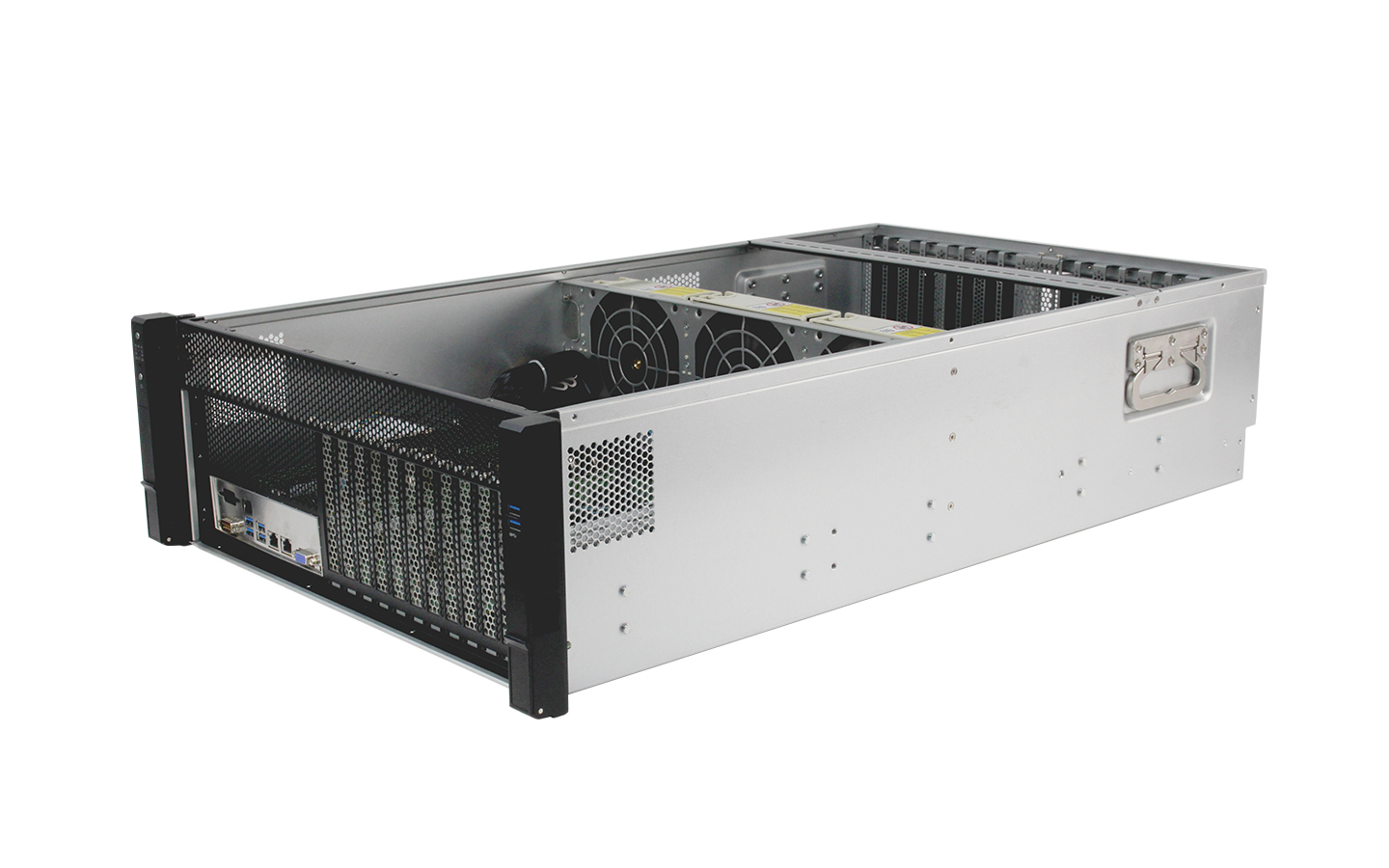

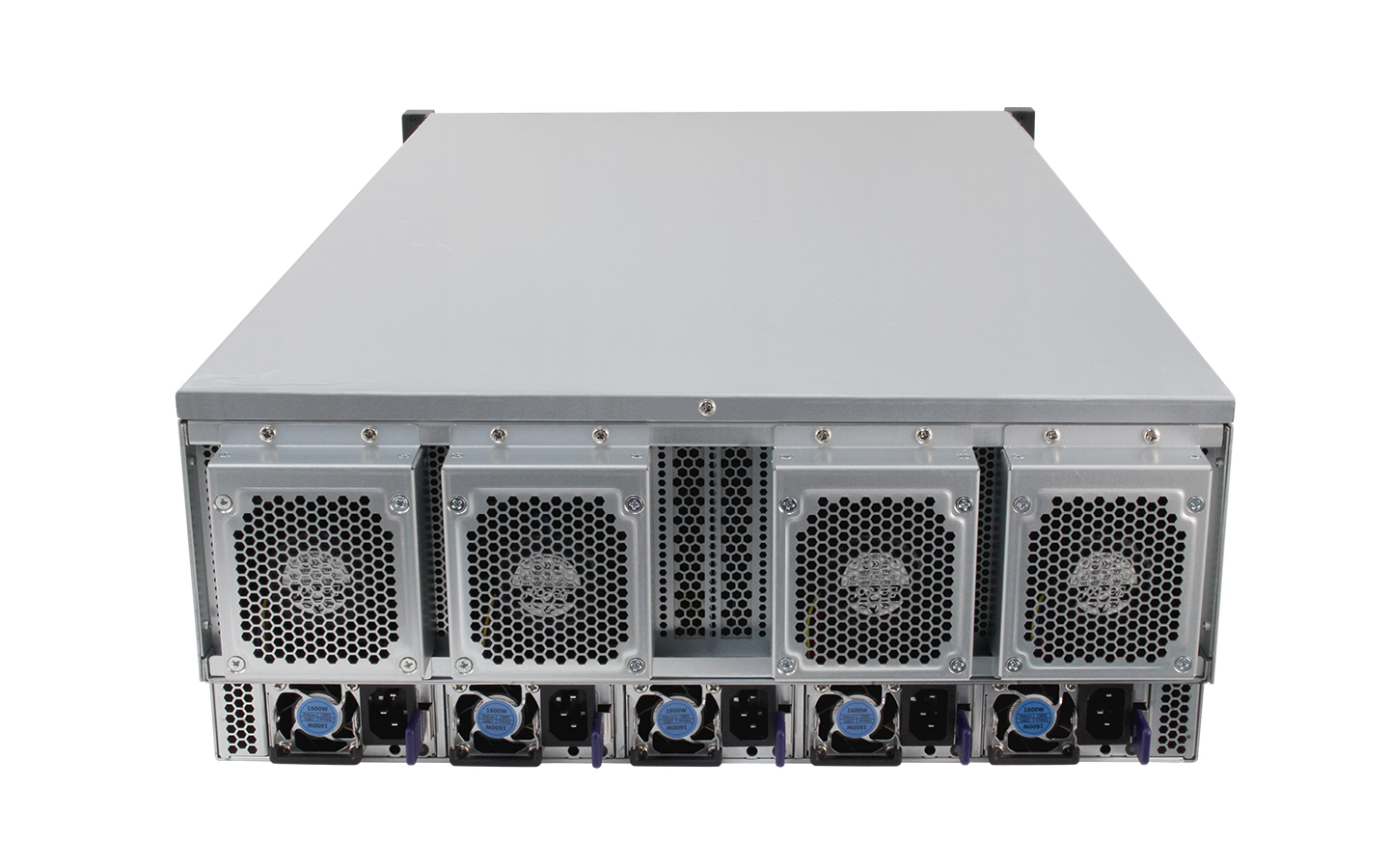

G-4778-P4 AI inference chassis supports 8 double-wide turbo GPU cards, 2 2.5-inch SSD positions in the front, the chassis comes standard with 3 12038 hot-swappable ball fans, and the rear window comes standard with 4 8038 ball fans. It has good heat dissipation performance. The chassis is compatible with E-ATX/ATX motherboards of 12"*13" and below sizes. It supports 5 standard CRPS power modules and 4+1 power supply mode, which is stable and reliable. Products are widely used in big data, cloud computing, HPC, AI, rendering, deep learning, edge computing and other scenarios. They perform well in terms of GPU computing performance, storage expansion capabilities, system stability, etc., and can meet the needs of emerging industries such as artificial intelligence to the greatest extent. Development and application in the field.
| Component name | Detailed specifications and parameters |
| Dimensions(mm) | 770（L）*437.6（W）*176（H） |
| Main material | Magang (environmentally friendly, fingerprint resistant 1.2mm SGCC) |
| Surface treatment | The front panel assembly is sprayed with sand grain black, and the rest is natural color |

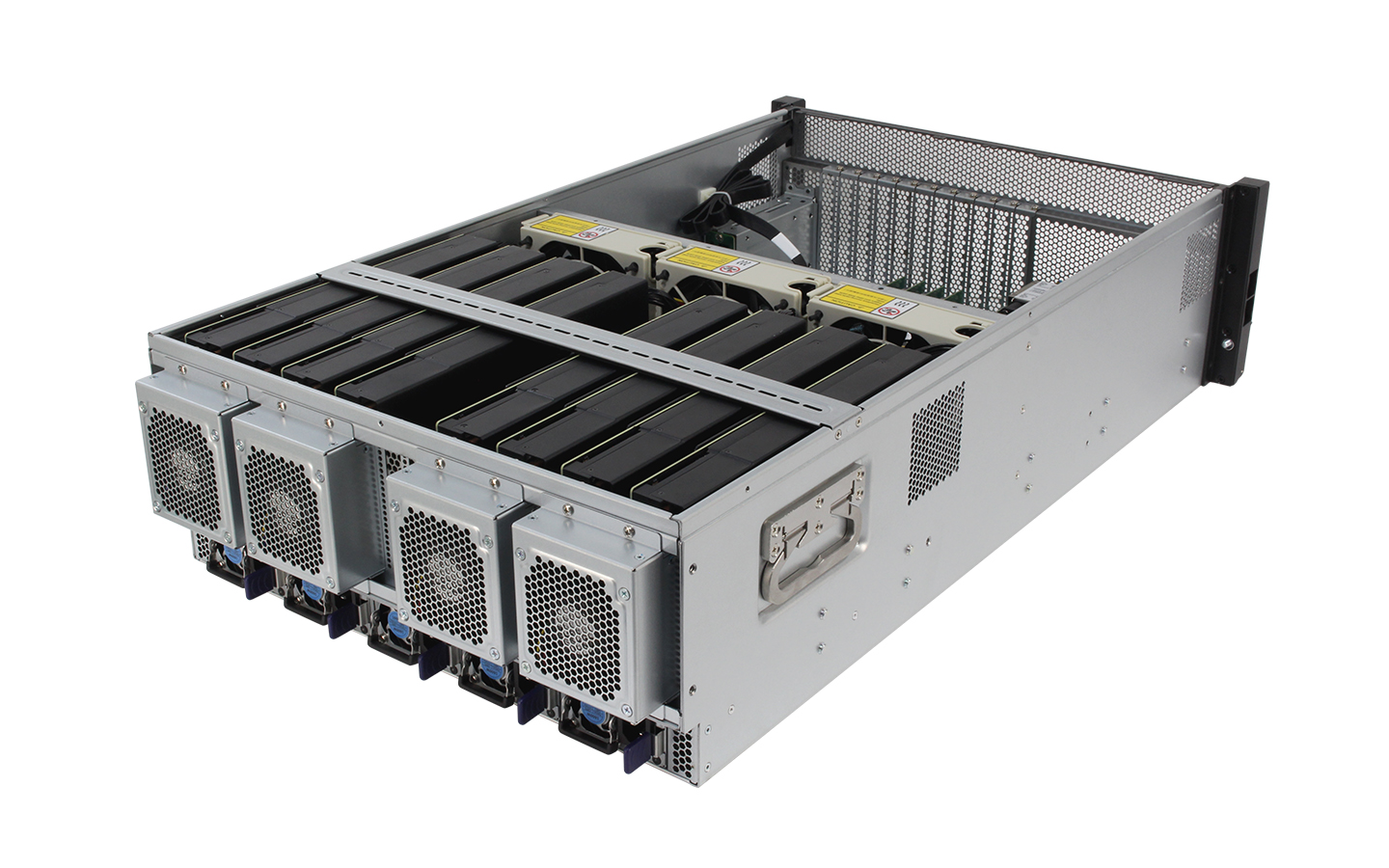

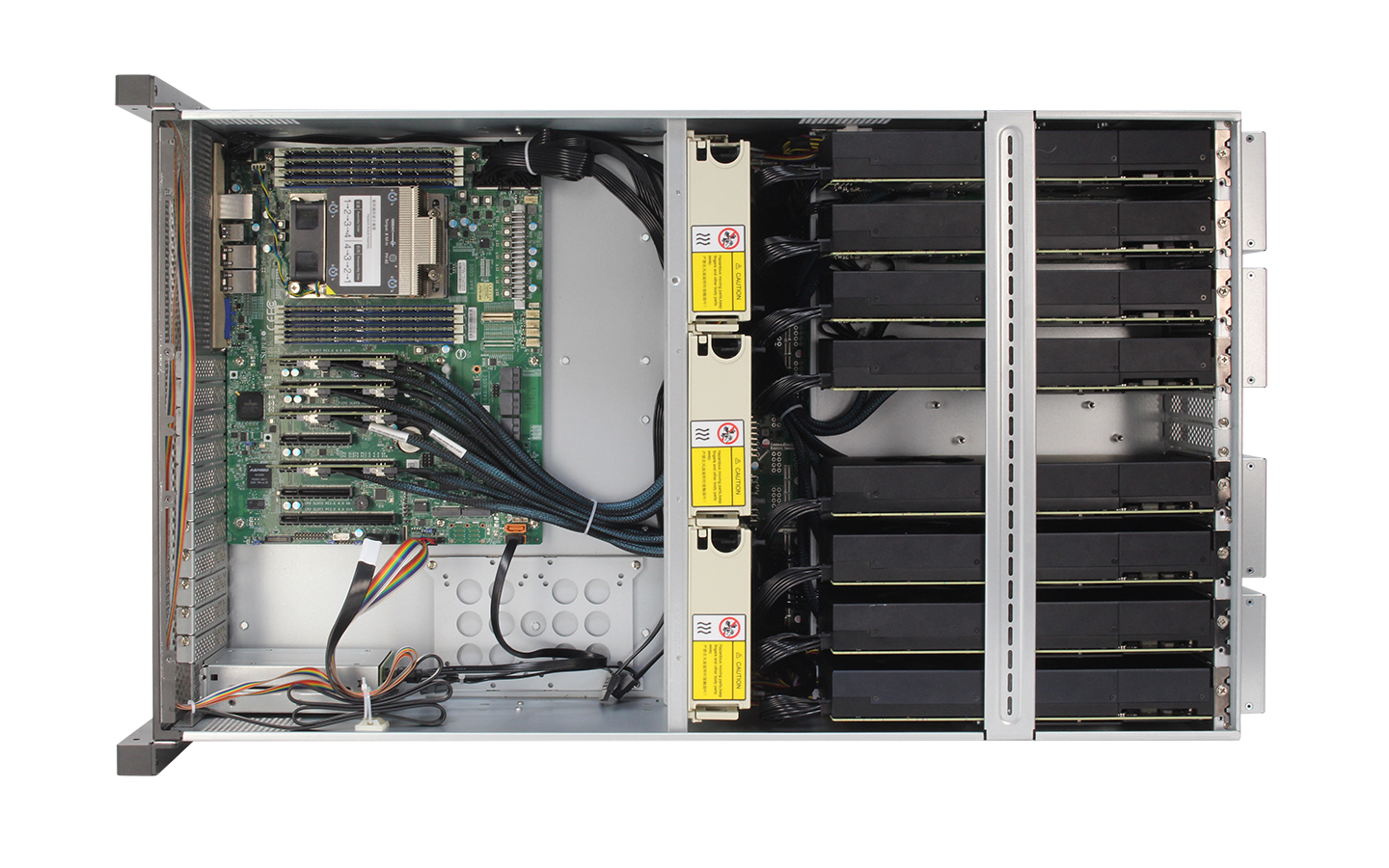

| GPU | Supports 8 double-wide turbo GPU cards (length 270MM) |
| Hard disk space | Optional front 2*2.5-inch SATA or NVME backplane |
Fan position | Standard built-in 3 12038 hot-swappable fan positions and 4 rear 8038 ball fans (high air pressure/high air volume) |
| Motherboards | motherboard with standard size of 12"*13" and below. The motherboard needs to have at least 4 PCIE4.0 X16 slots or 8 PCIE4.0 X8 slots. |

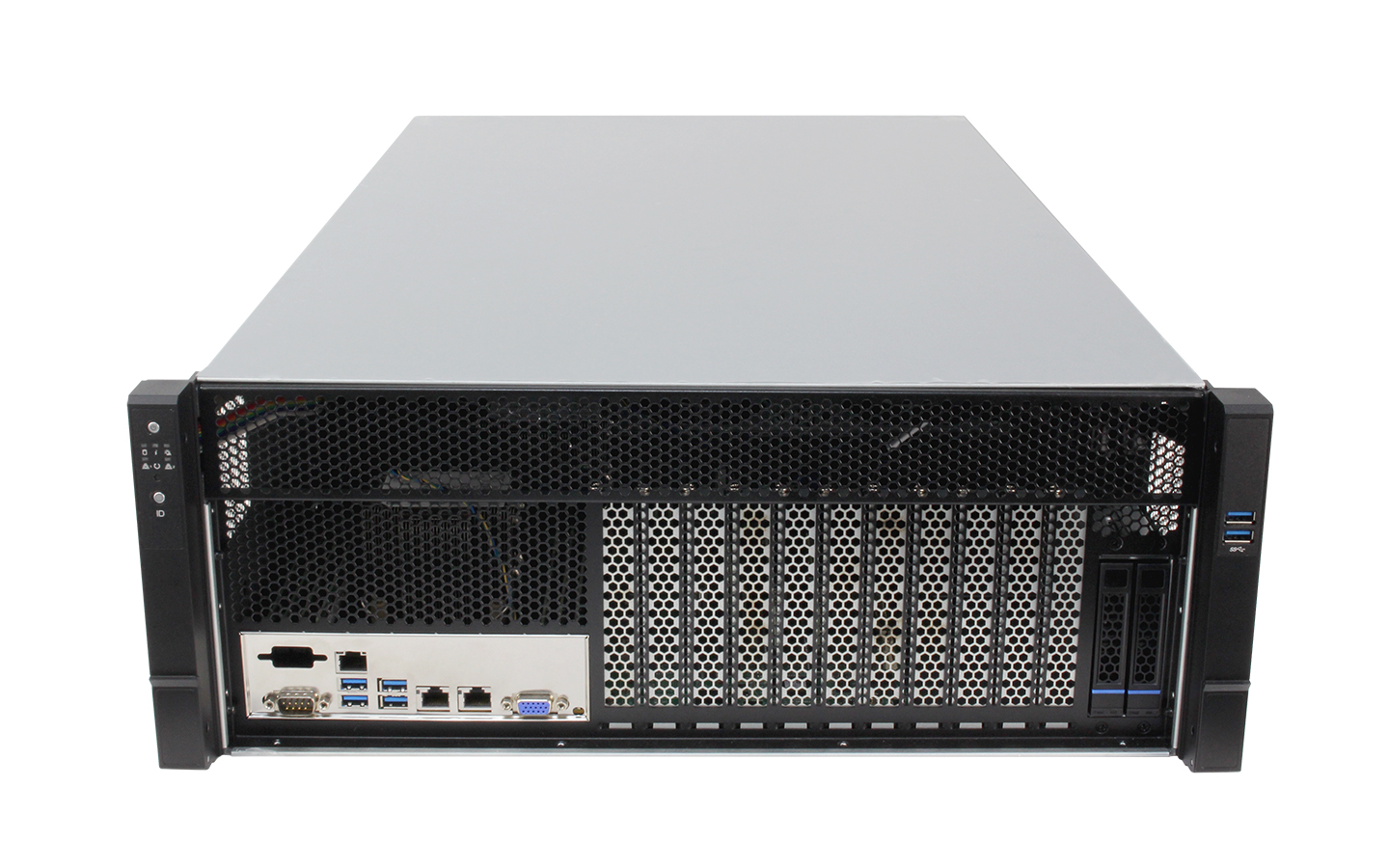

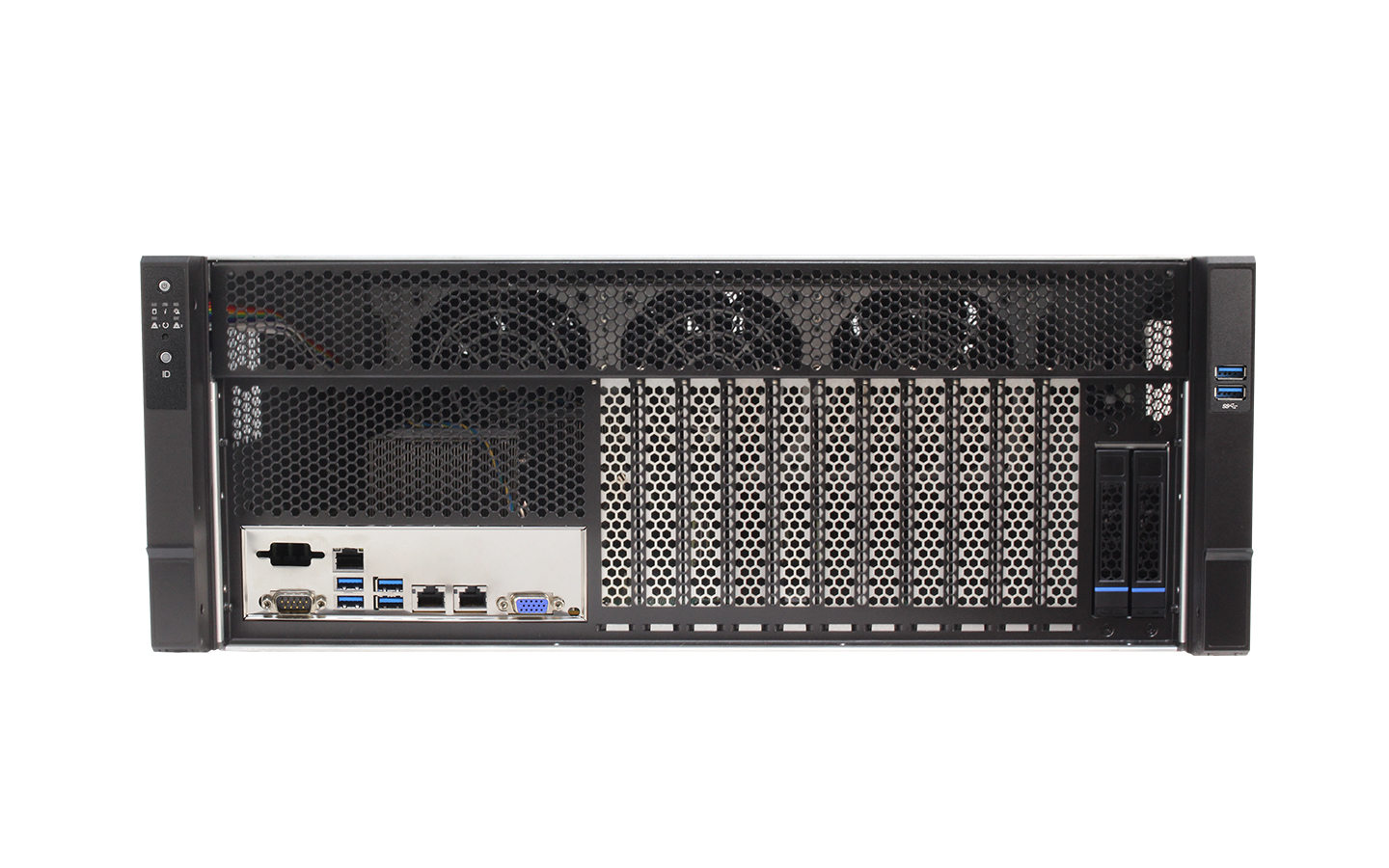

| I/O | 11 full-height PCI/PCIE expansion slots, vertical insertion |
| External interface | External interface 2 * USB 3.0 |
| System control | POWER LED*1，HDD LED*1，RESET SW*1，POWER SW*1，NIC LED*2 |

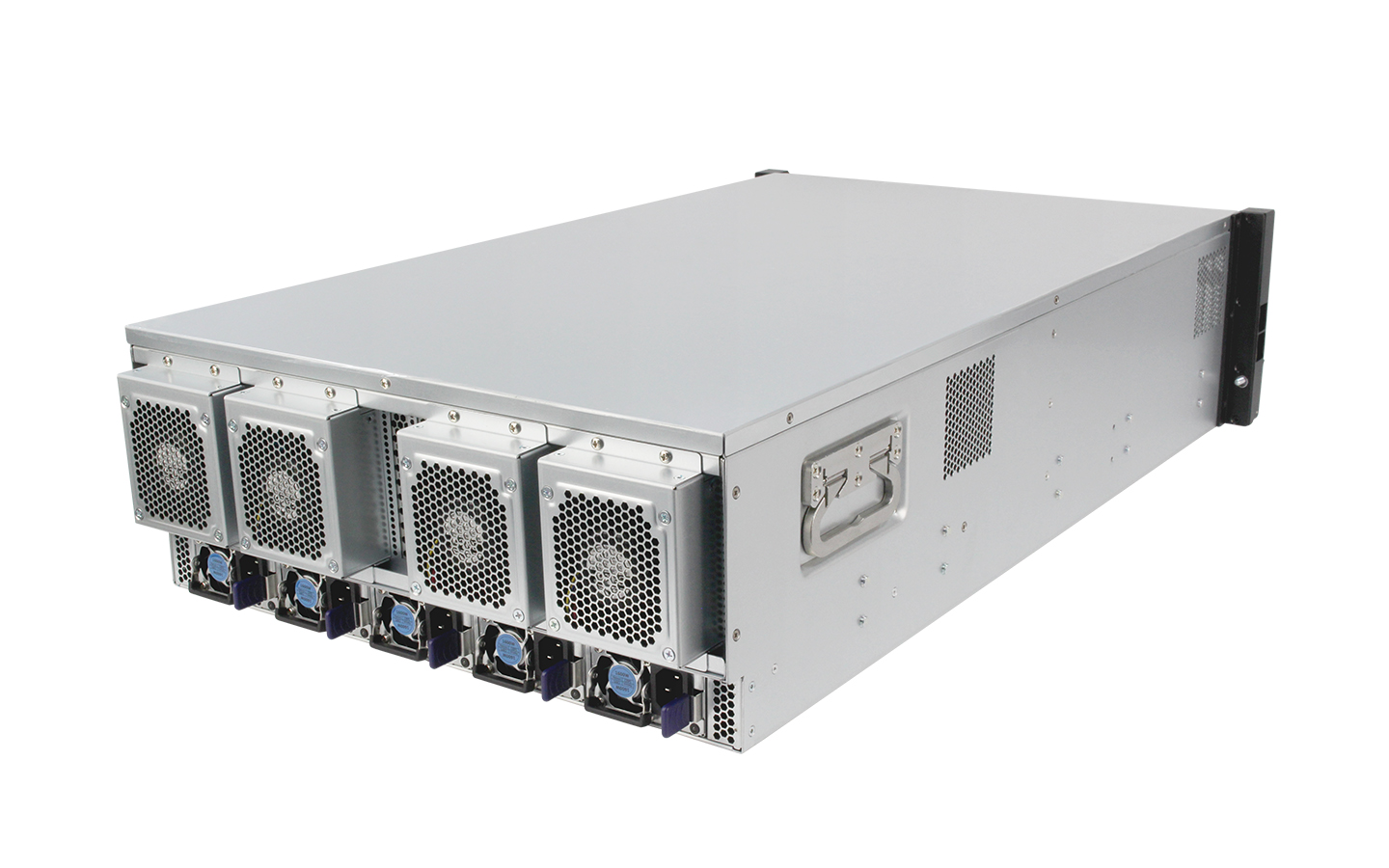

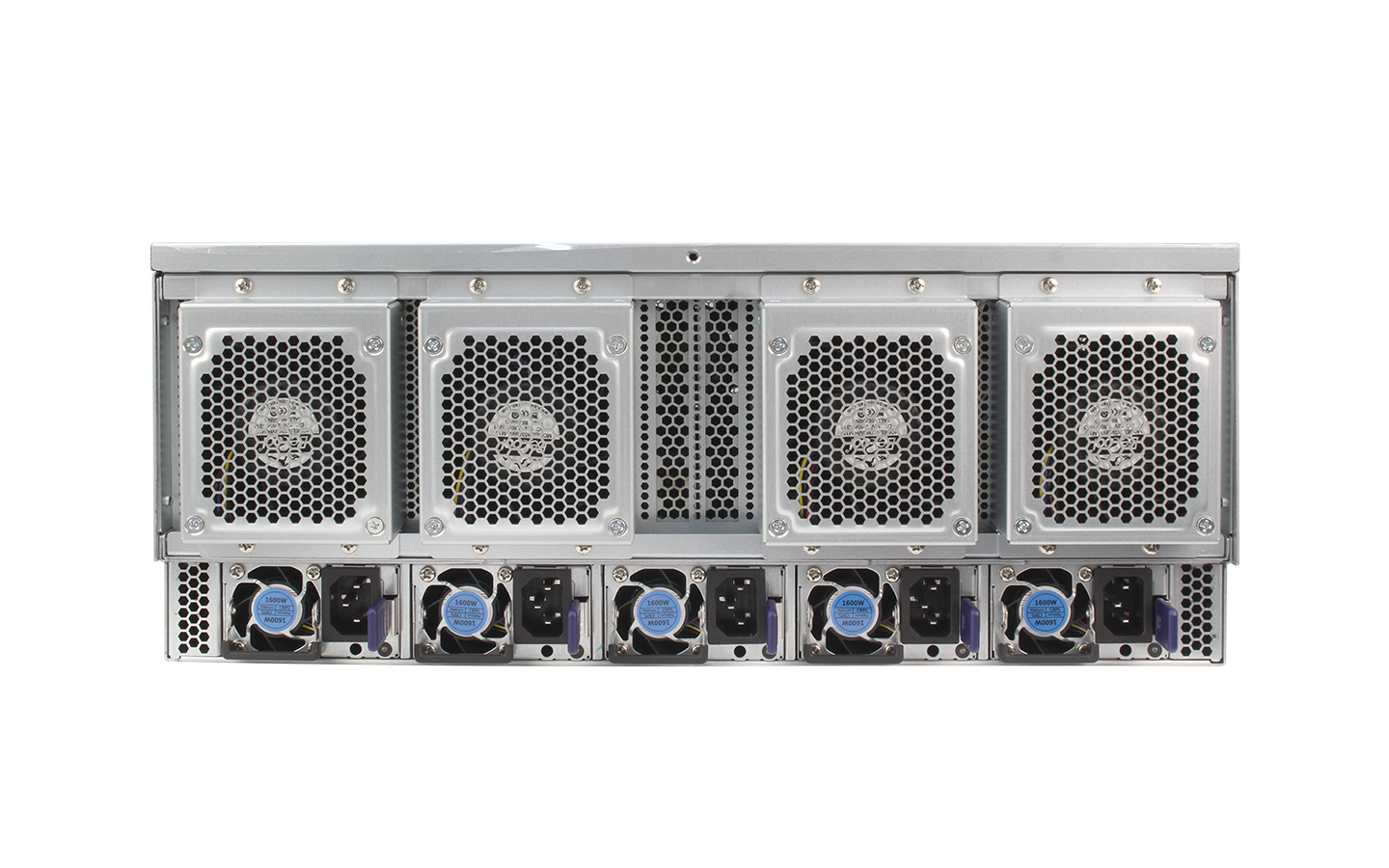

| Power supply | supports standard CRPS power module, 4+1 power supply mode |
| PCIE channel | 8*PCIE4.0 X8 |
| Front VGA | Front VGA motherboard IO front |
| Applicable fields | AI reasoning, rendering, HPC, deep learning and other fields |
