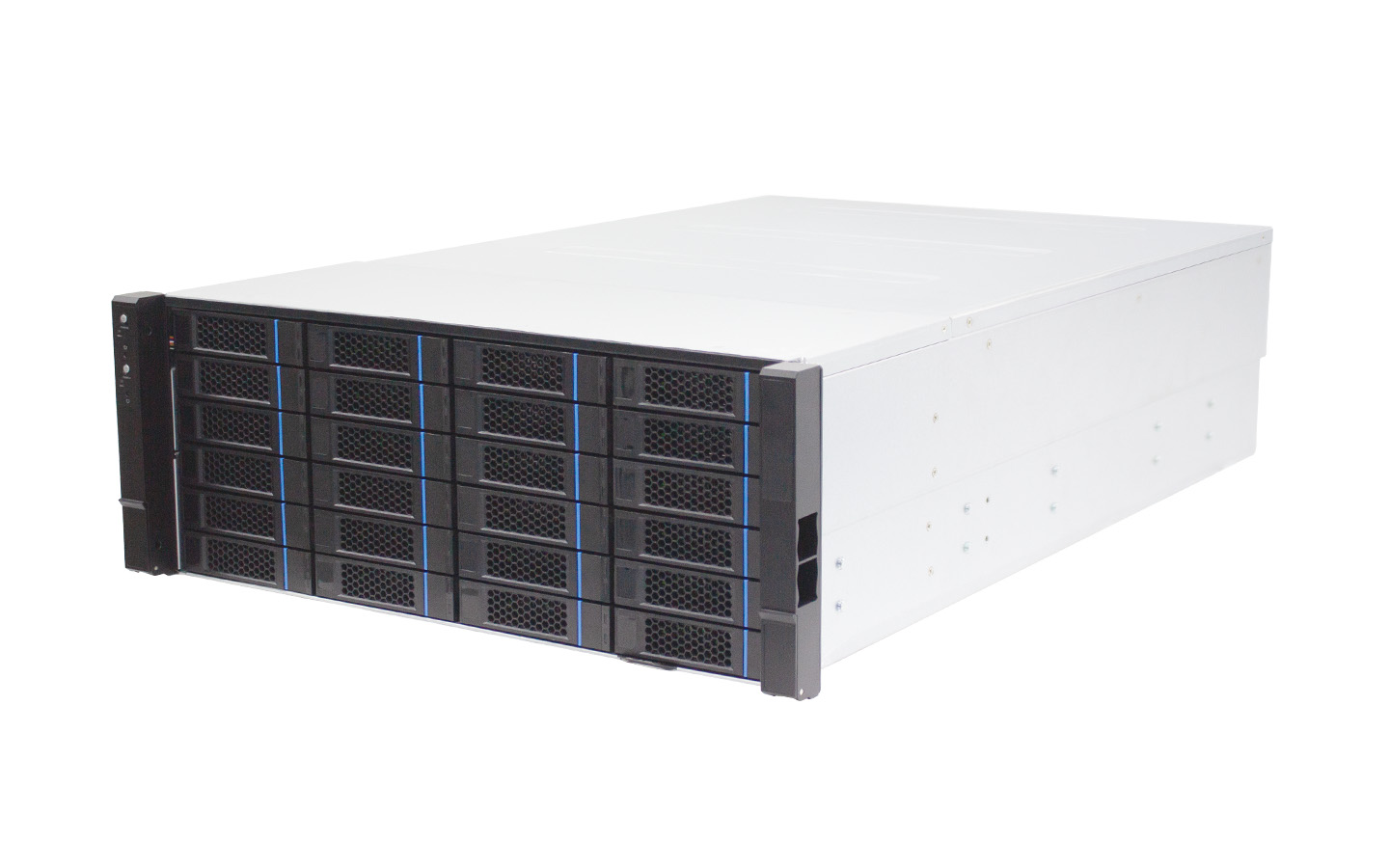

Product model:TP5100

Product category:4U hot-swappable chassis

Product Introduction:

The new generation of professional storage products is designed on a high-performance, highly reliable Intel/AMD server platform. Its software platform adopts a modular design architecture, integrating industry-leading hard drive management technologies such as VRAID3.0 and HASS, as well as a cross-platform device management GUI. These products are characterized by high performance, high reliability, large capacity, easy expansion, and ease of management.

Application field:

Fields such as data centers, enterprises, broadcasting and television, video surveillance, and more.

Overview
Technical Parameter
Dimension
Data download

Overview

TP5100 series is a new generation of professional storage products launched by Toplong. It is designed based on a high-performance, highly reliable Intel/AMD server platform. The software adopts a modularly designed software platform, integrating VRAID3.0 and HASS, the industry's leading hard drive management technology, as well as a cross-platform device management GUI. It features high performance, high reliability, large capacity, easy expansion, and easy management, making it widely applicable in data centers, enterprises, broadcasting and television, video surveillance, and other applications.

Technical Parameter

组件名称	规格
Dimensions(mm)	760 (L) * 437.2 (W) * 176 (H).
Form Factor Architecture	4U24 Drive Bay, 19-inch Rack, Pluggable Controller Architecture.
HDD Capacity	SAS ：2-20TB，SSD ： 960GB、1.92TB、3.84TB.
HDD Channels	480（Multi-level DEU Expansion）.
CPU	Intel Multi-core 64-bit Processor (4-64 cores, configurable with E3 single-socket series, E5 dual-socket series, and Xeon Scalable processors).
Cache	64~1024GB.
I/O	8 to 16 GE ports, or 8 10GE ports, or 8 8/16G FC ports (supporting standard half-height PCIe expansion cards).
Fan	High-efficiency adaptive speed-regulating fans, supporting N+1 redundant hot-swappable fans.
System control	Input: AC 100V~127V / 200V~240V; 60Hz / 50Hz, supporting 1+1 hot-swappable CRPS.
Power	With a full load of 24 HDD, >800W.
Power supply	Fields such as data centers, enterprises, broadcasting and television, video surveillance, and more.
