Cloud storage, big data, private cloud, distributed storage, security monitoring
| Components | Specification |

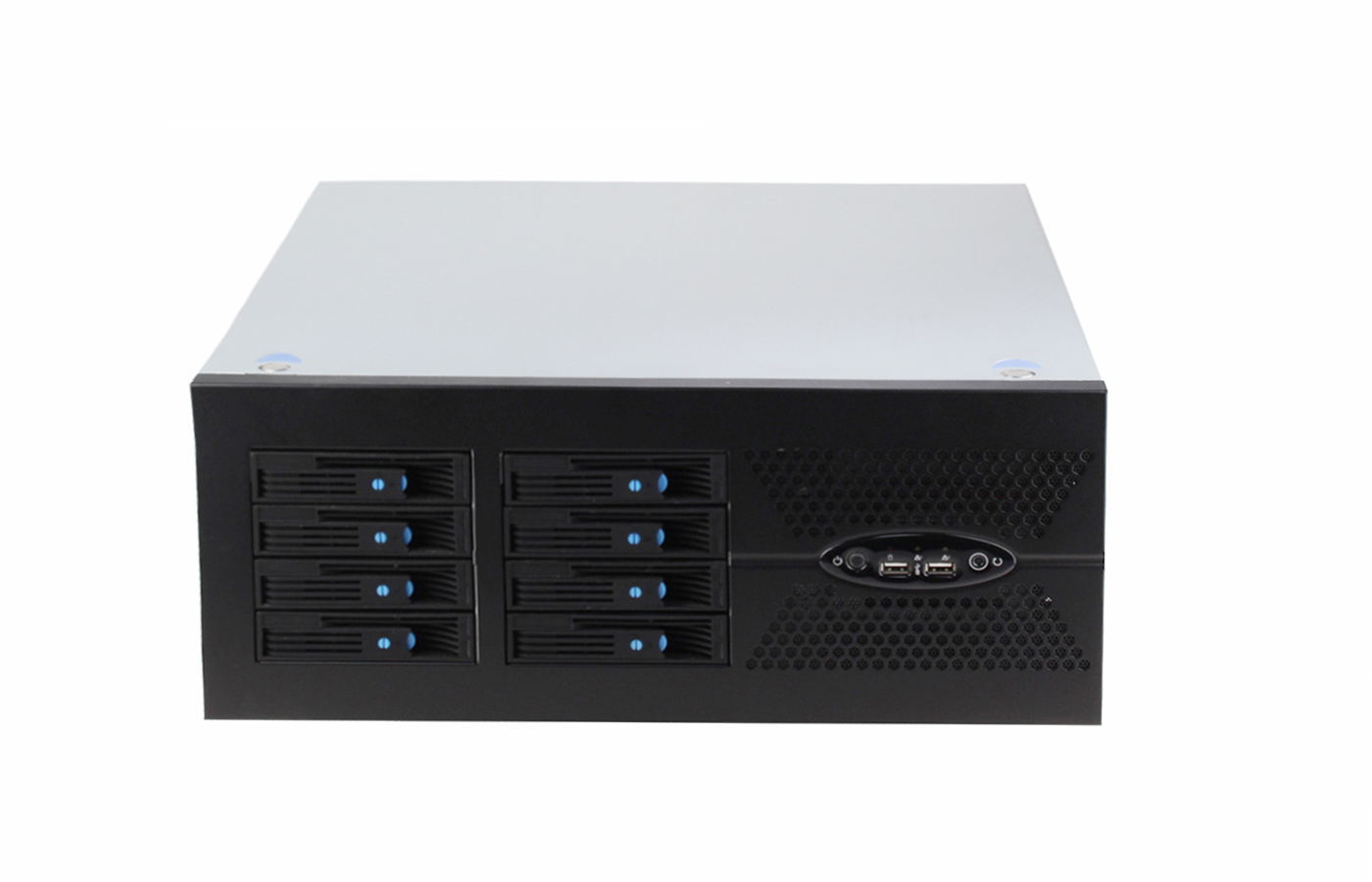

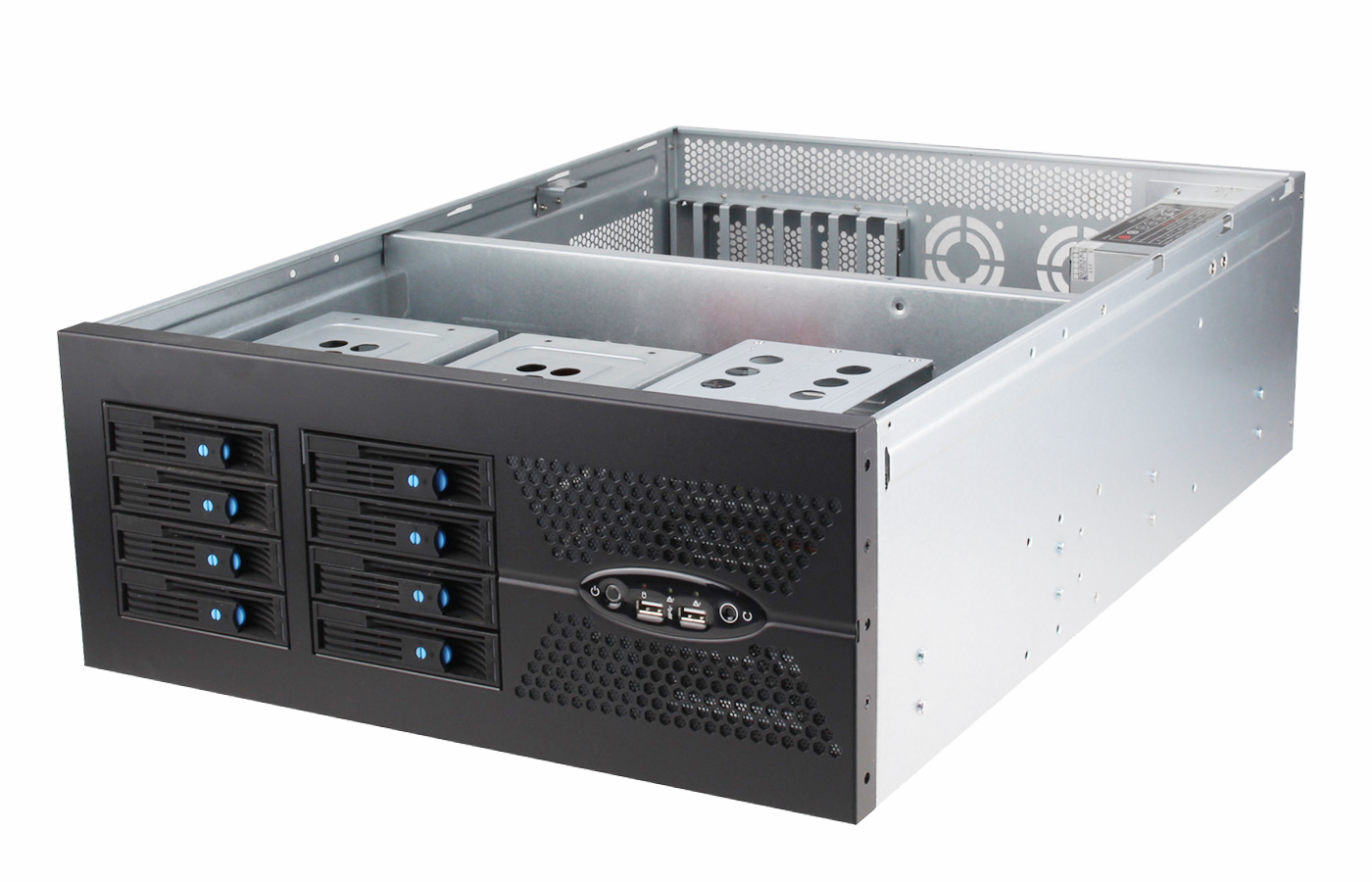

| Dimensions(mm) | 437.5mm x 580mm x 176.5mm, standard 19" rackmount chassis. |
| Materials | 1.0mm SGCC Zinc-Coated Steel. |
| Backplane | 12Gb/s backplane(Optional 6Gb/s), compatible with SATA/SAS HDD, with temperature control chipset. |
| Drivers bay | 8 x 3.5"HDD bays,compatible with 2.5"HDD/SDD. |

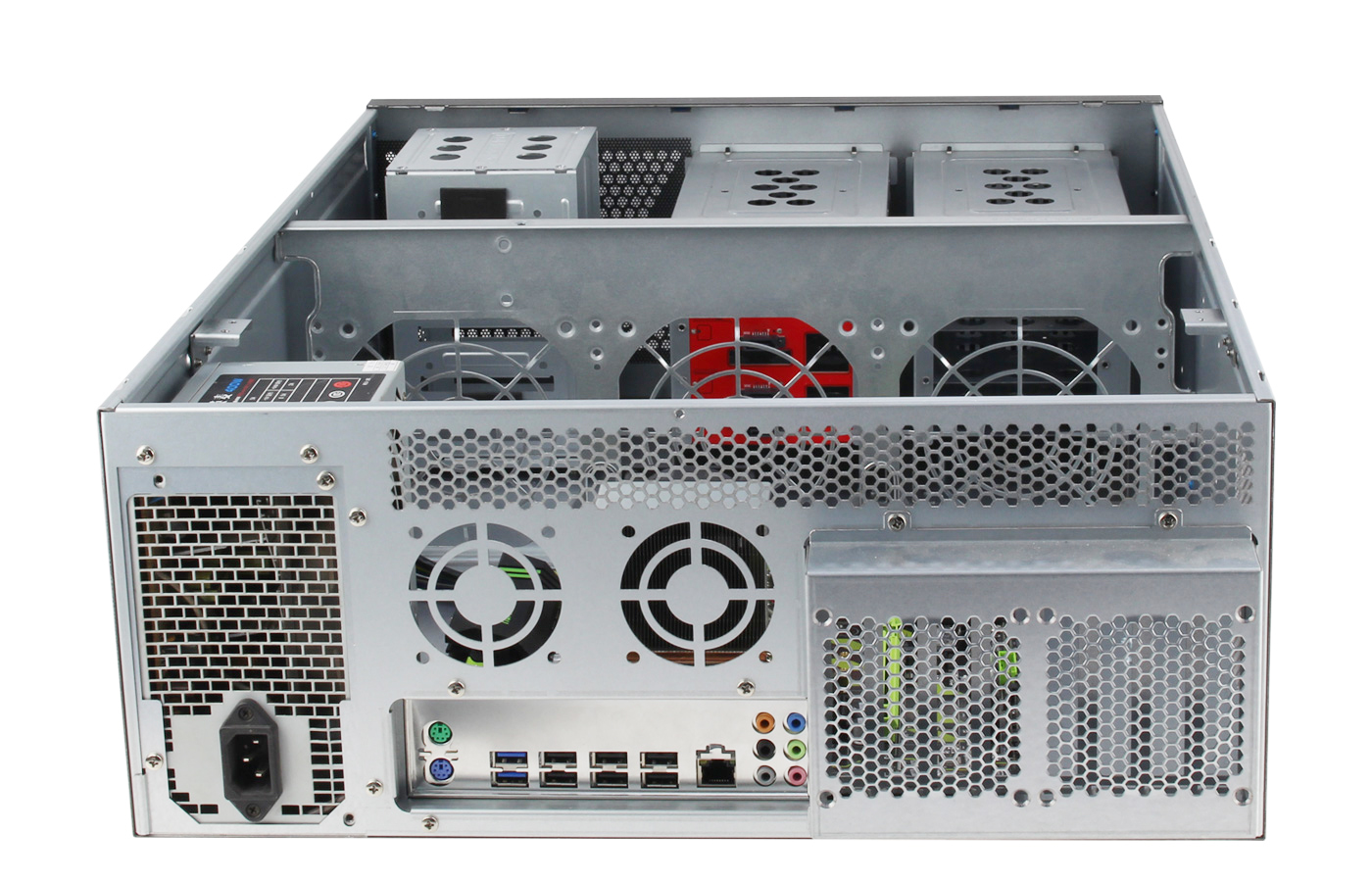

| Cooling Fan | Standard chassis with 3pcs 12038 fans. |
| PSU form factor | 4U standard power supply. |

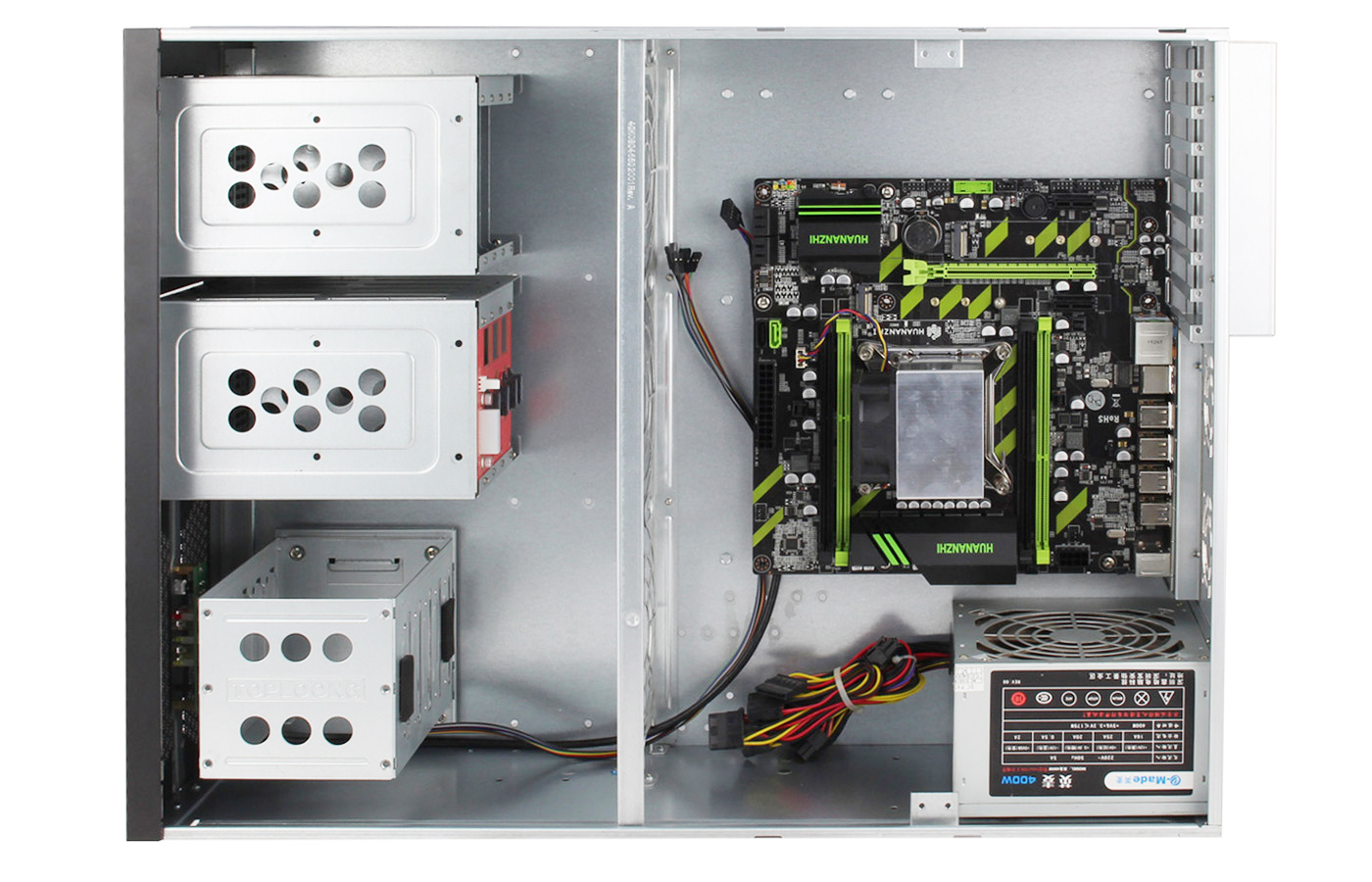

| M/B form factor | MAX supports to extened ATX 12"x13". |
| Epansion space | 8 full-height PCI/PCIE expansion slots. |
| Connector | Two front accessible USB2.0 ports(Optional USB3.0). |
| System Control | Power LED*1，Reset*1，Power ; SW*1，HDD LED*1，NIC LED*2*1. |
| Applicarion | Cloud storage,Cloud computing,Security monitoring,etc. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.MAX supports to extened ATX 12"x13", and 8 x 3.5"HDD bays,compatible with 2.5"HDD/SDD, 4U standard power supply. | |
| 3.The chassis has good ventilation system 3pcs 12038 fans to make sure the system work steadily. | |
