Topolong IPC4303 is a full mold production of 4U overhead industrial computer bo
Machine vision, Industrial control, intelligent transportation, mechanical automation, AI, Internet of Things

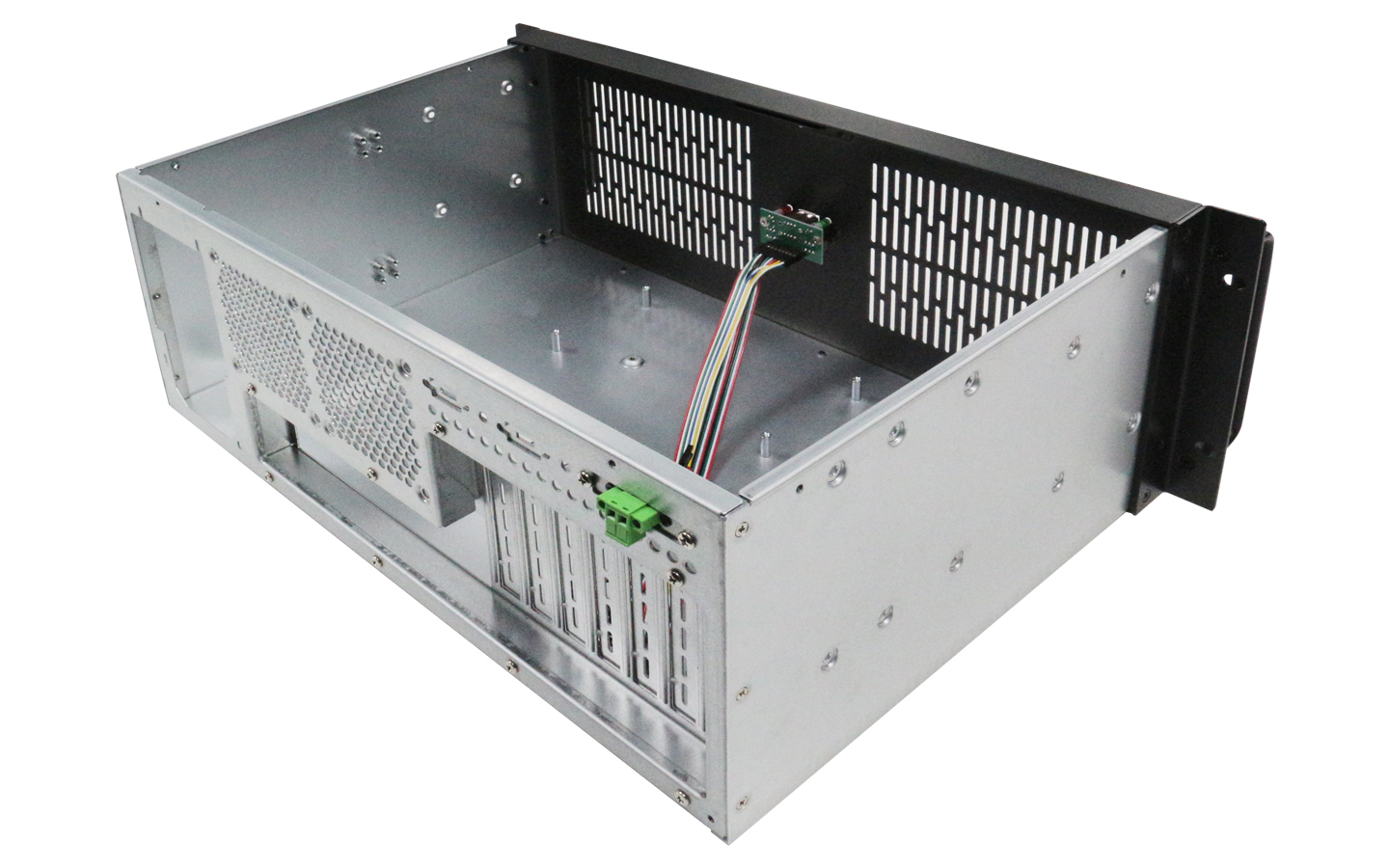

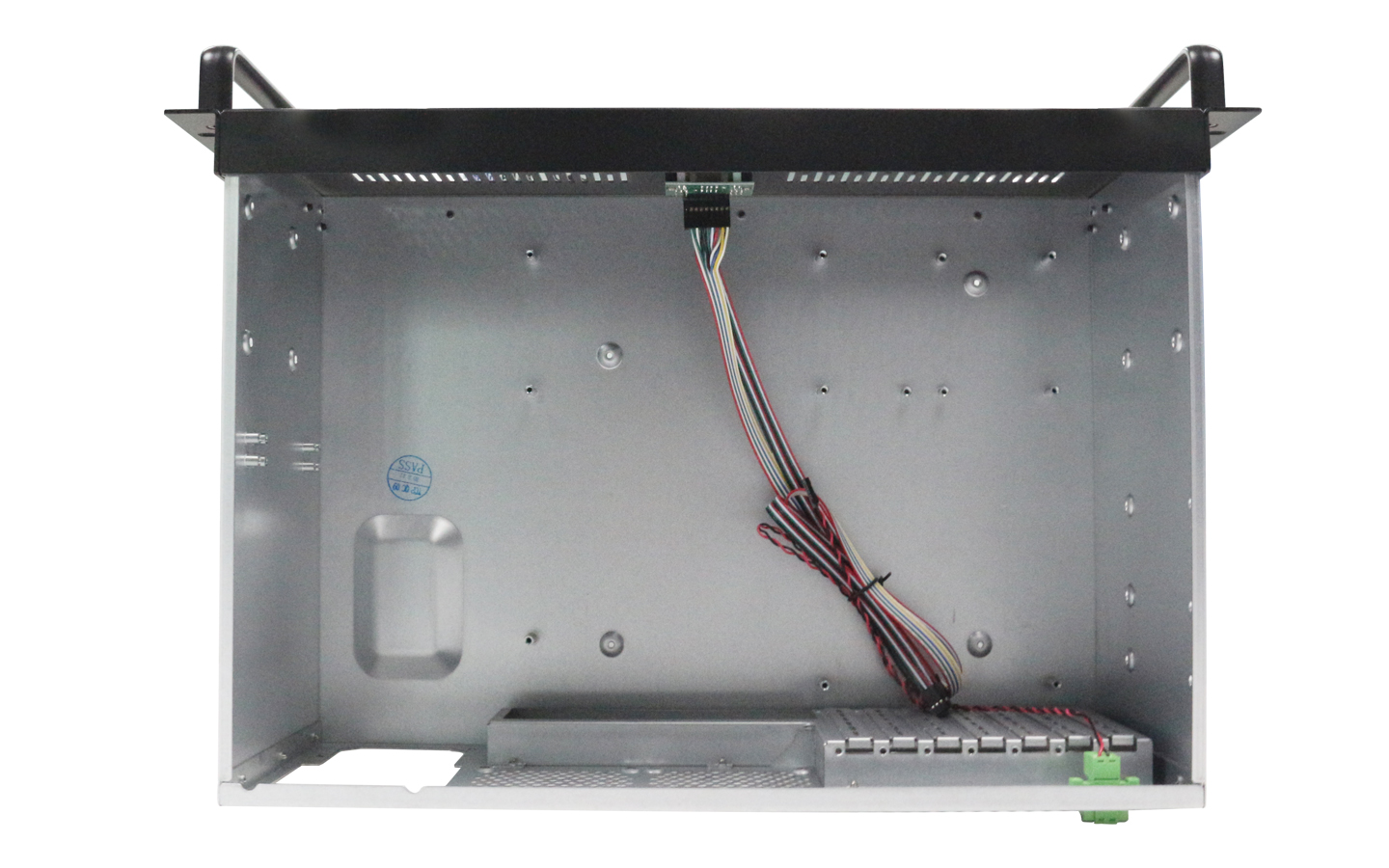

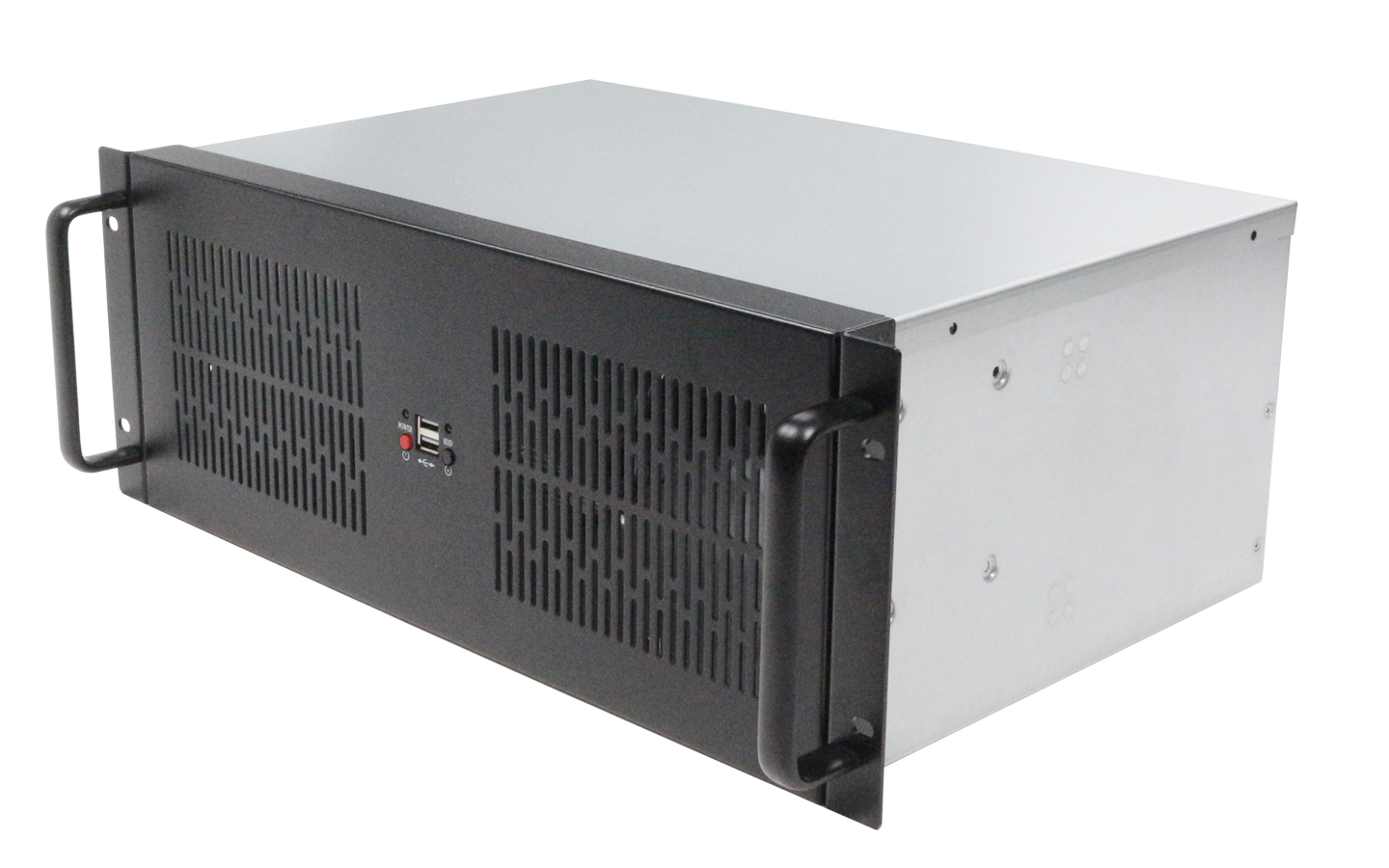

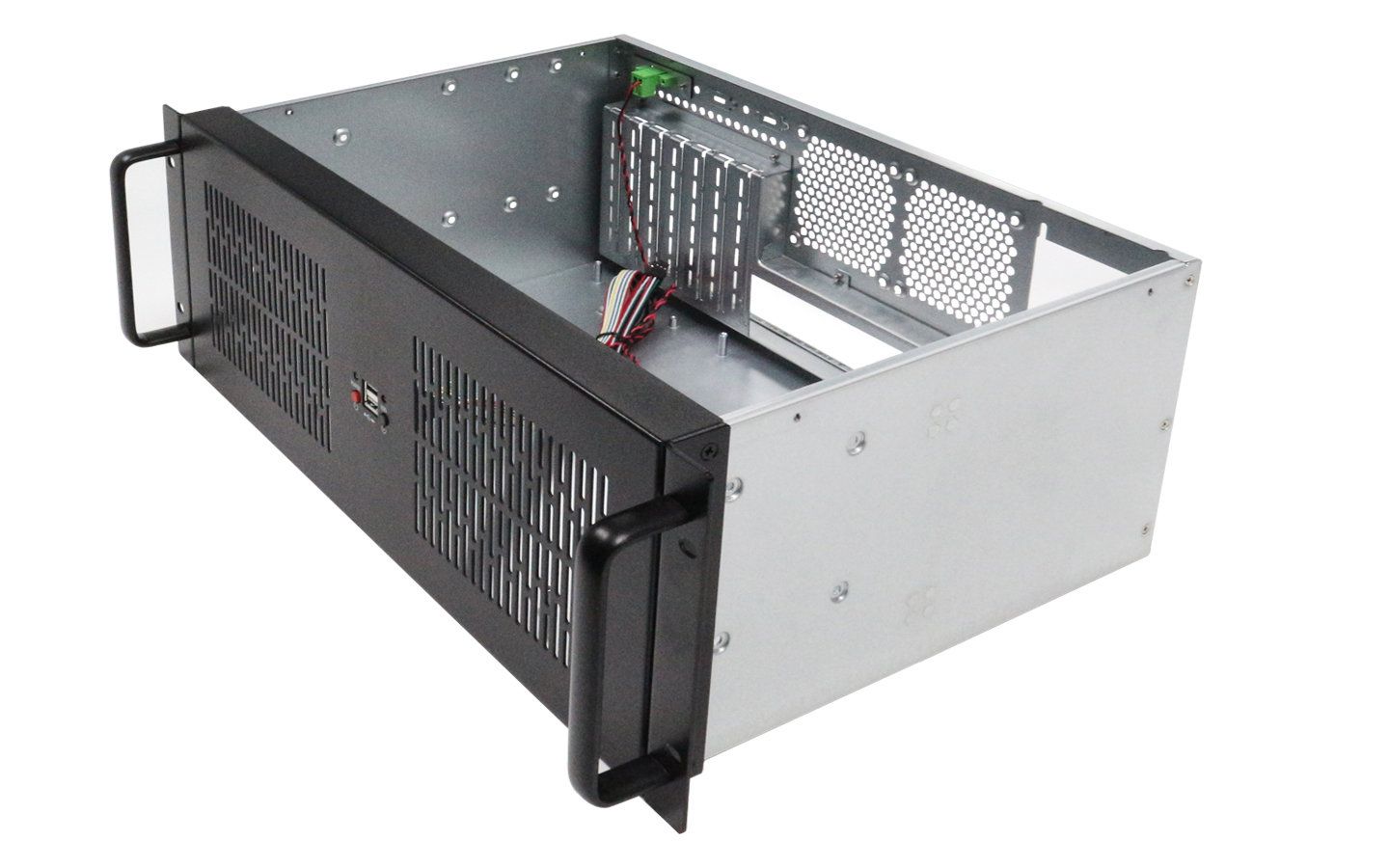

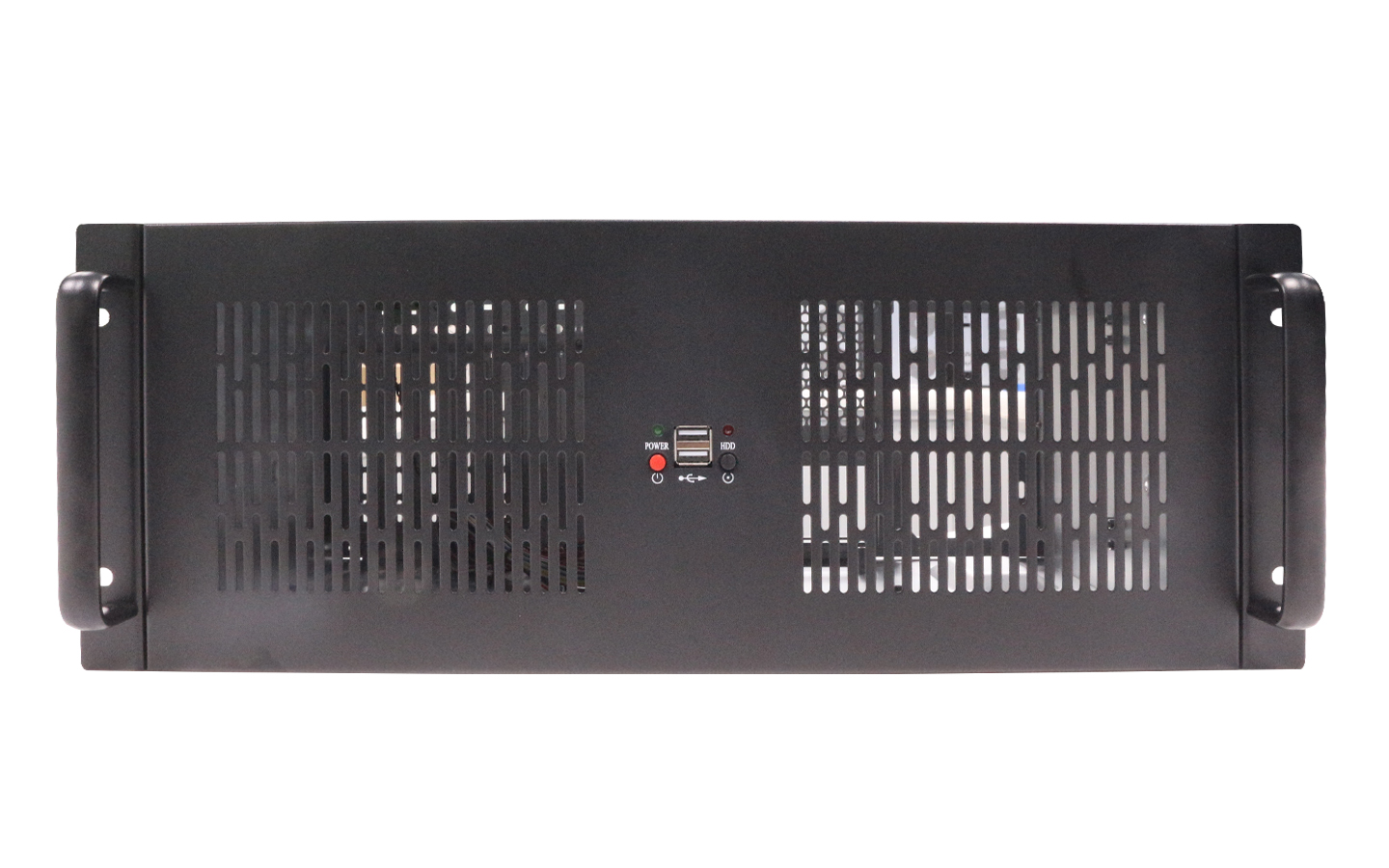

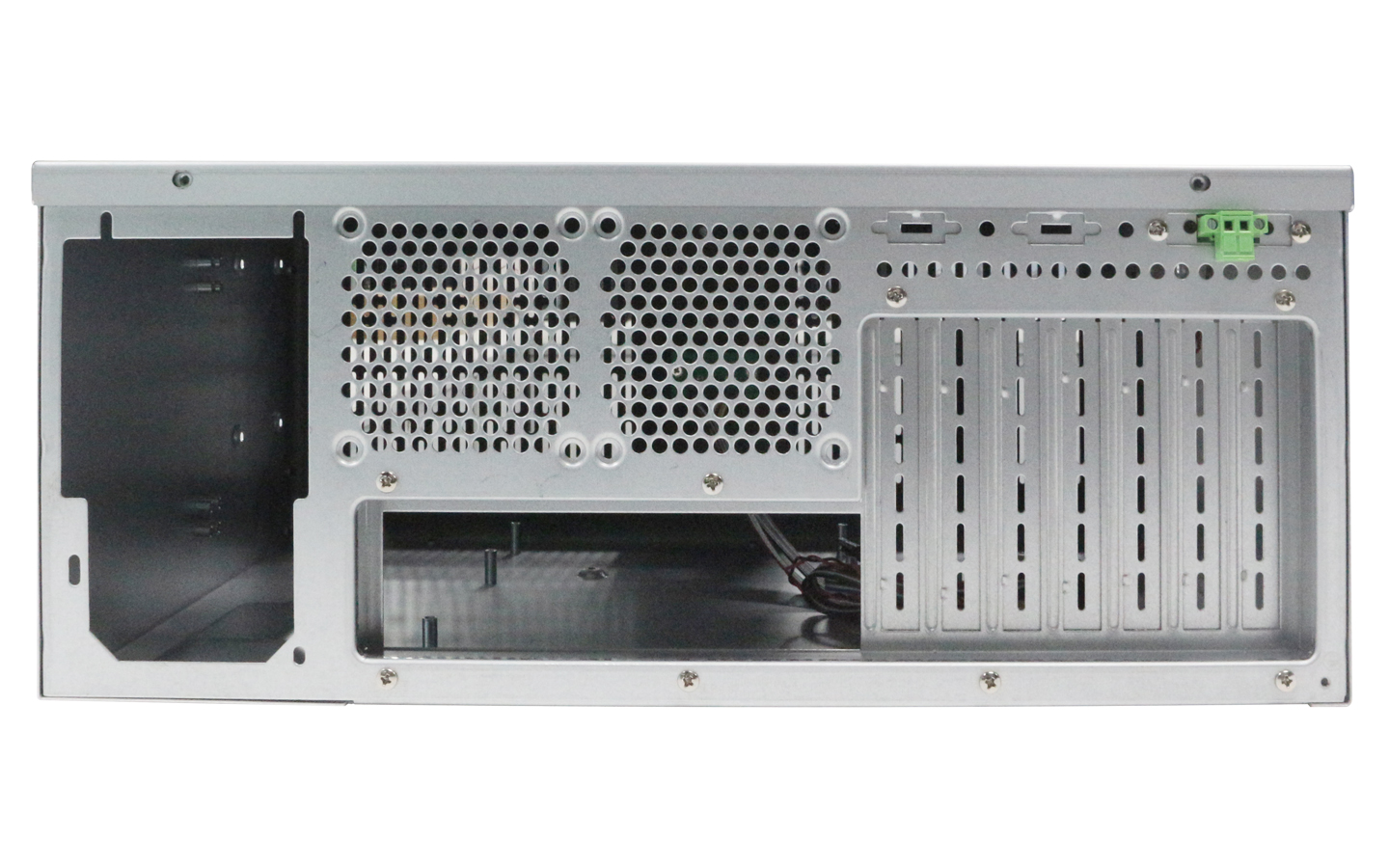

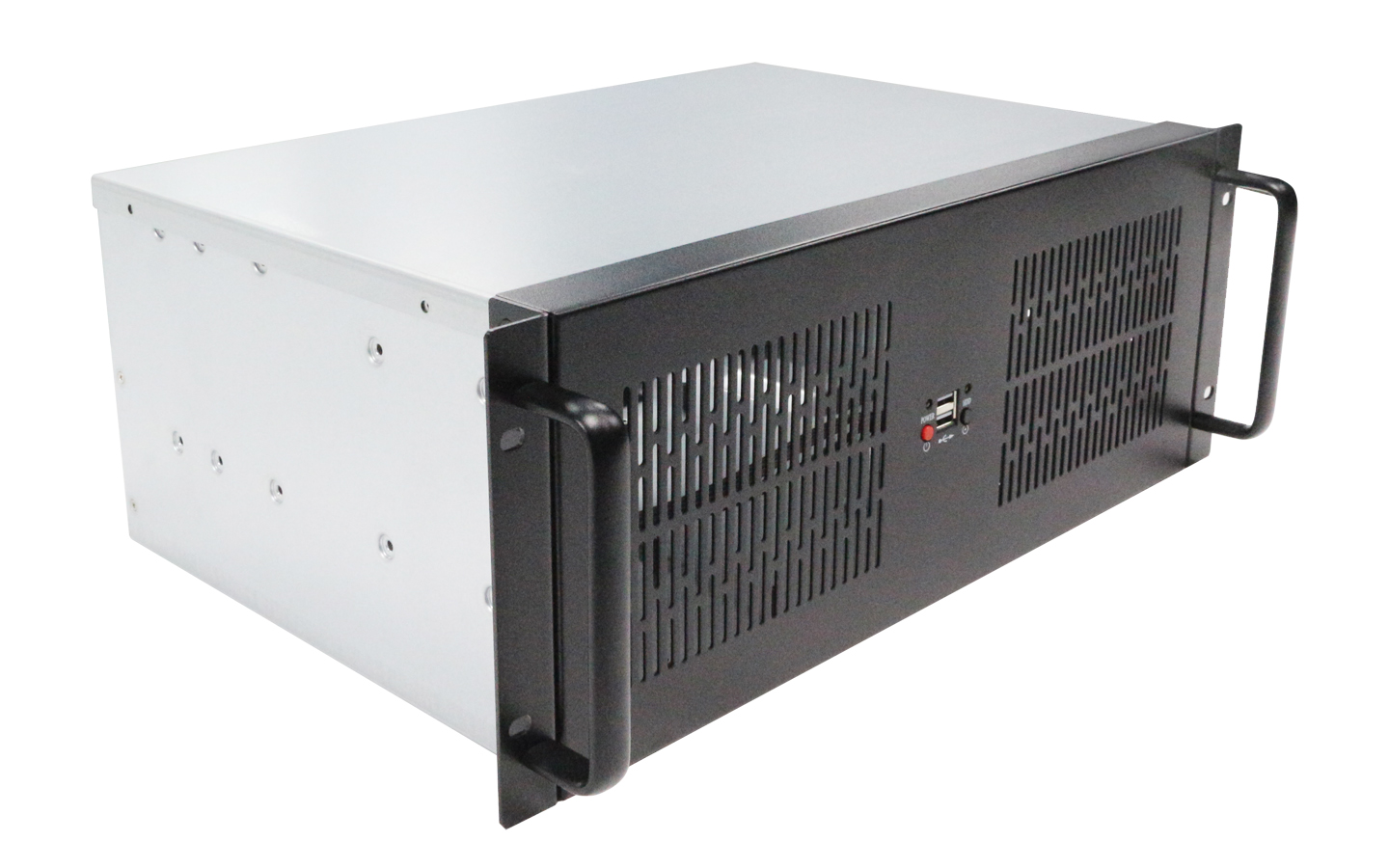

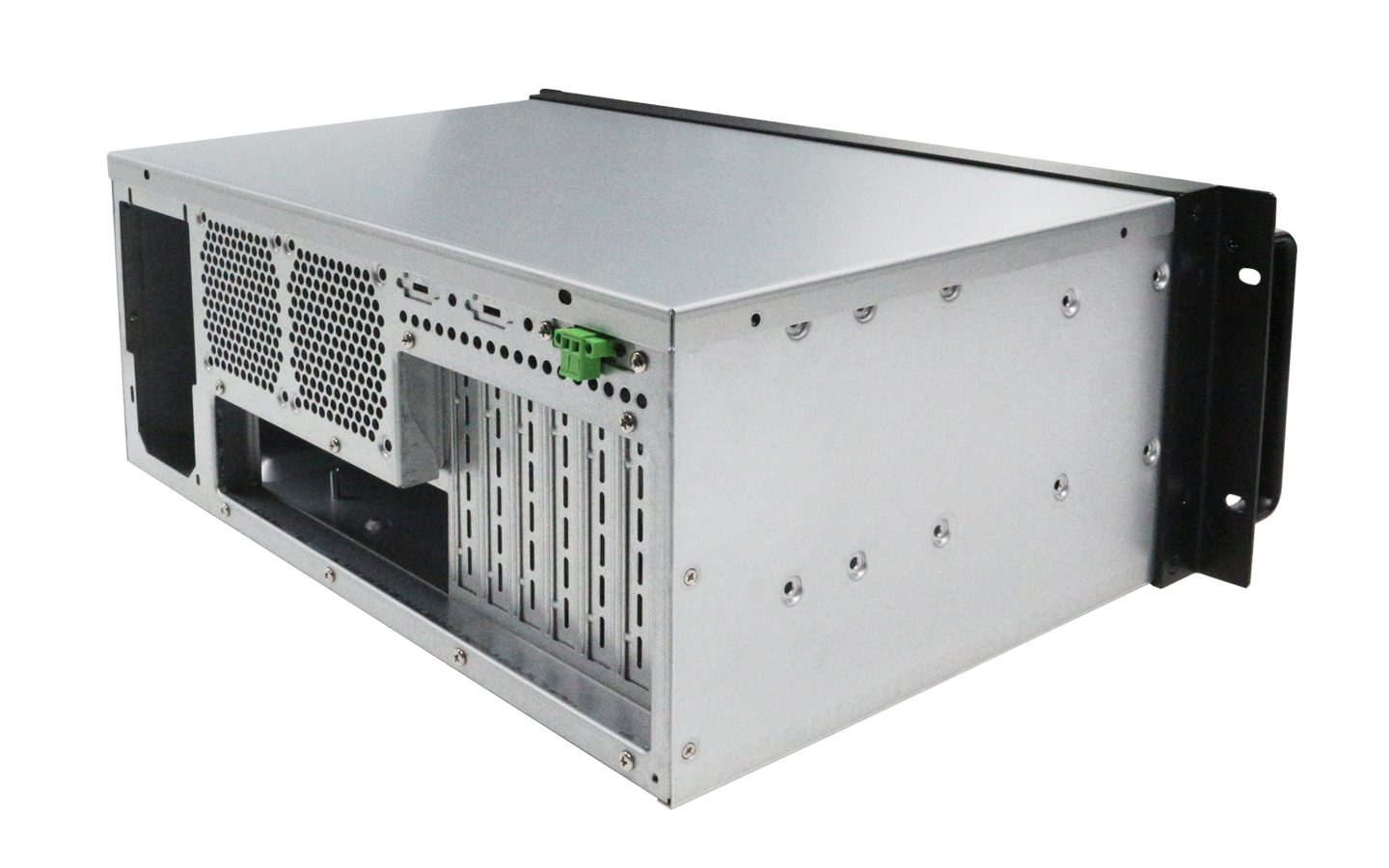

The Toplong IPC4303 is a 4U rack-mounted industrial computer case made entirely from molds. The case can accommodate standard 12*9.6 and smaller sized motherboards, and can install 1 x 3.5" HDD and 2 x 2.5" SSD. It supports standard PS2 power supply and is compatible with 7 PCI/PCIE expansion slots. The rear panel has 2 x 8CM fan installation holes. The front panel has 2 x USB 2.0 external interfaces, and the rear panel has 2 x DB9 holes and 1 x DB25 hole. It is widely used in industrial control and other fields.
| Components | Specification |
| Dimensions | 330(L)*427(W)*176(H) |
| Materials | Quality fine 1.2mm SGCC steel. |
| Color | Black. |
| Surface treatment | Front panel components sprayed black (gray), other steel sheet |
| HDD bit | 1 3.5" hard disk bit, 2 2.5" hard disk bit |
| Fan location | Two 8 cm fans |
| Applicable motherboard | Standard 12" x 9.6" and below motherboards |
| Expansion space | Seven full-height PCI/PCIE expansion slots inserted vertically |
| External interface | Front panel 2 x USB 2.0 Rear panel 2 DB9 holes and 1 DB25 holes |
| Applicable power supply | Standard PS2 power supply |
| CPU heat sink height | Height ≤70mm(top to bottom size of radiator) |
| System control | POWER LED*1，HDD LED*1，RESET SW*1，POWER SW*1 |
