IPC470 reinforced wall-mounted industrial control chassis is produced with 1.0mm SGCC full mold. The chassis supports standard ATX motherboards, supports 7 full-height PCI/PCIE expansion slots, can be

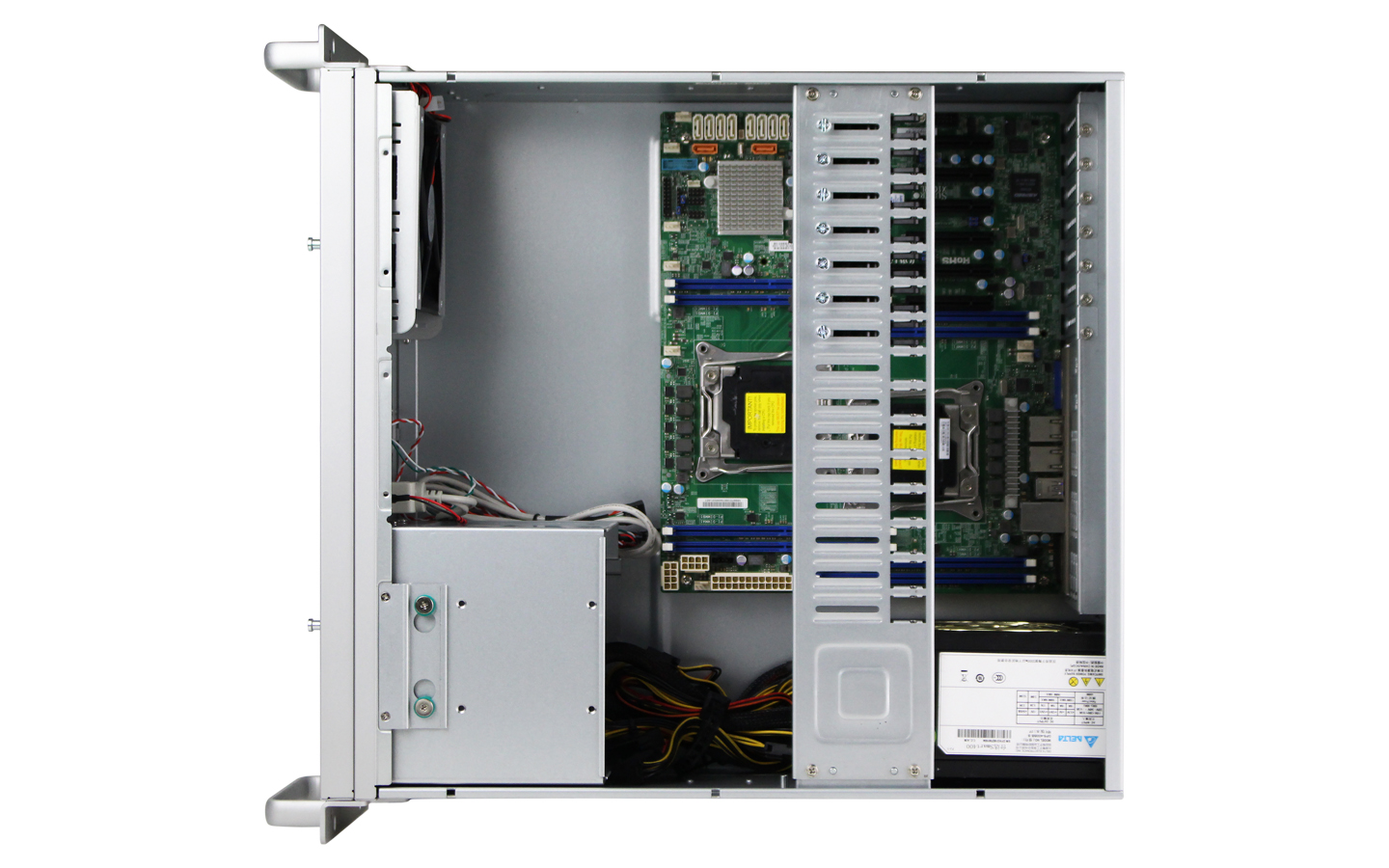

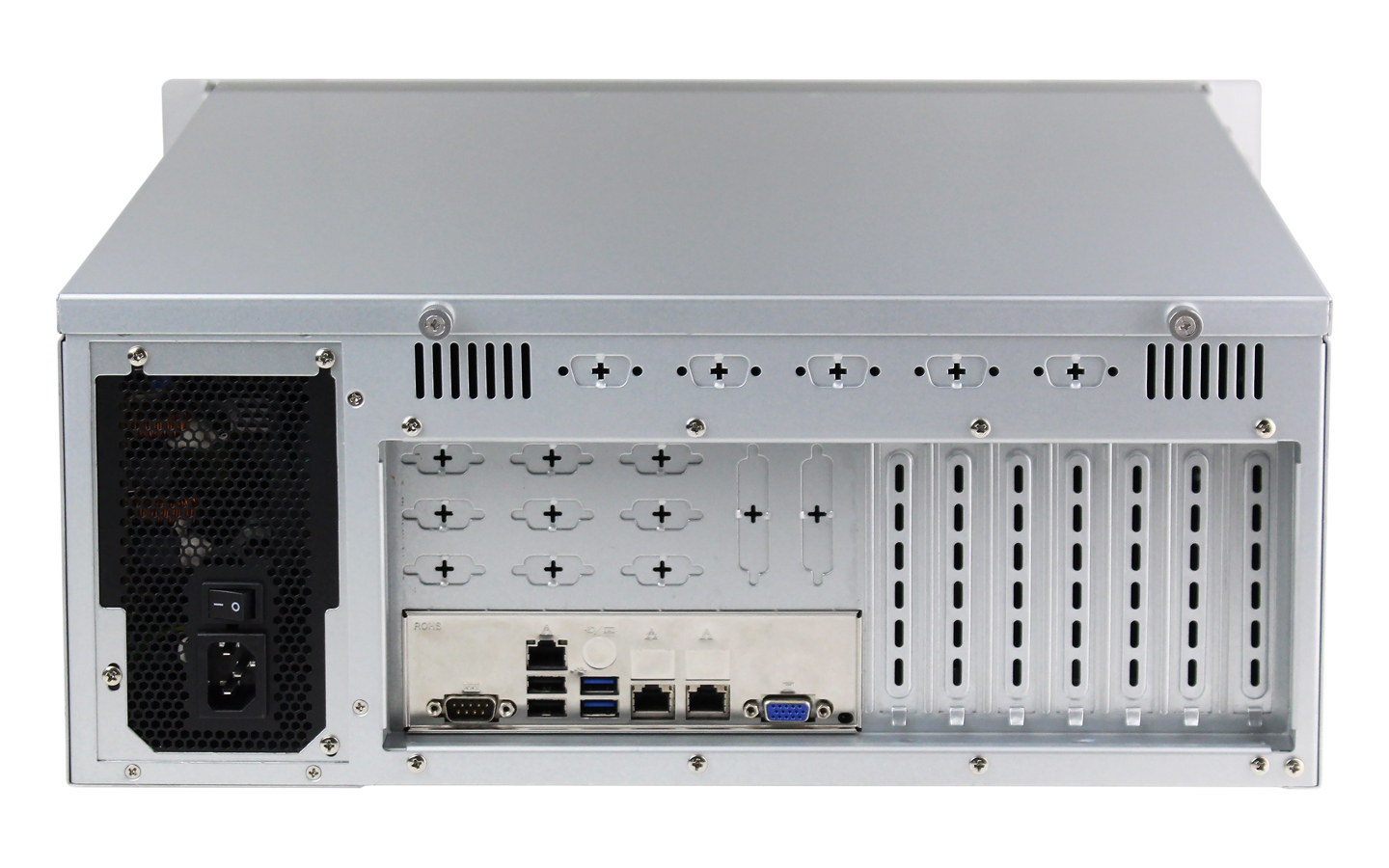

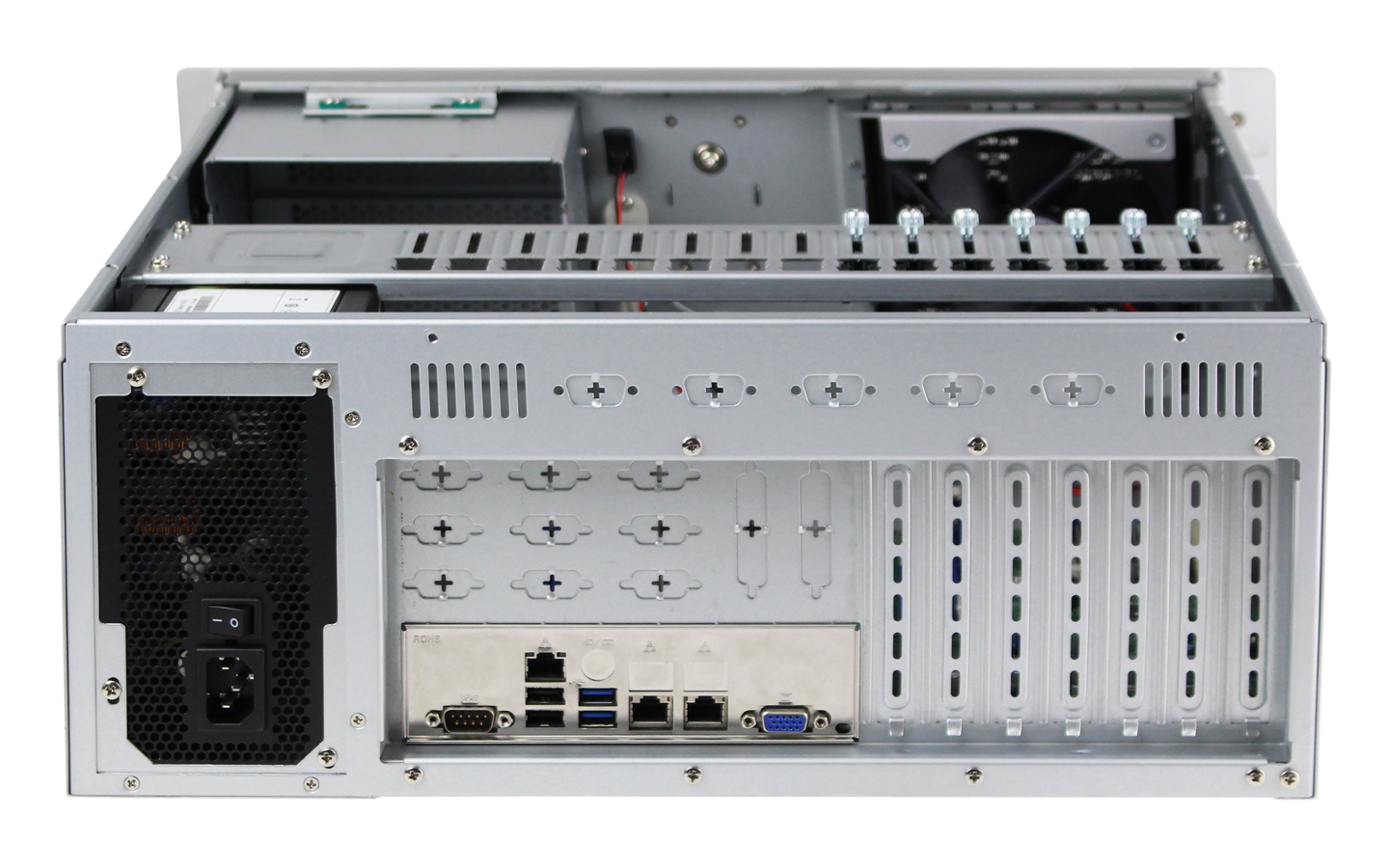

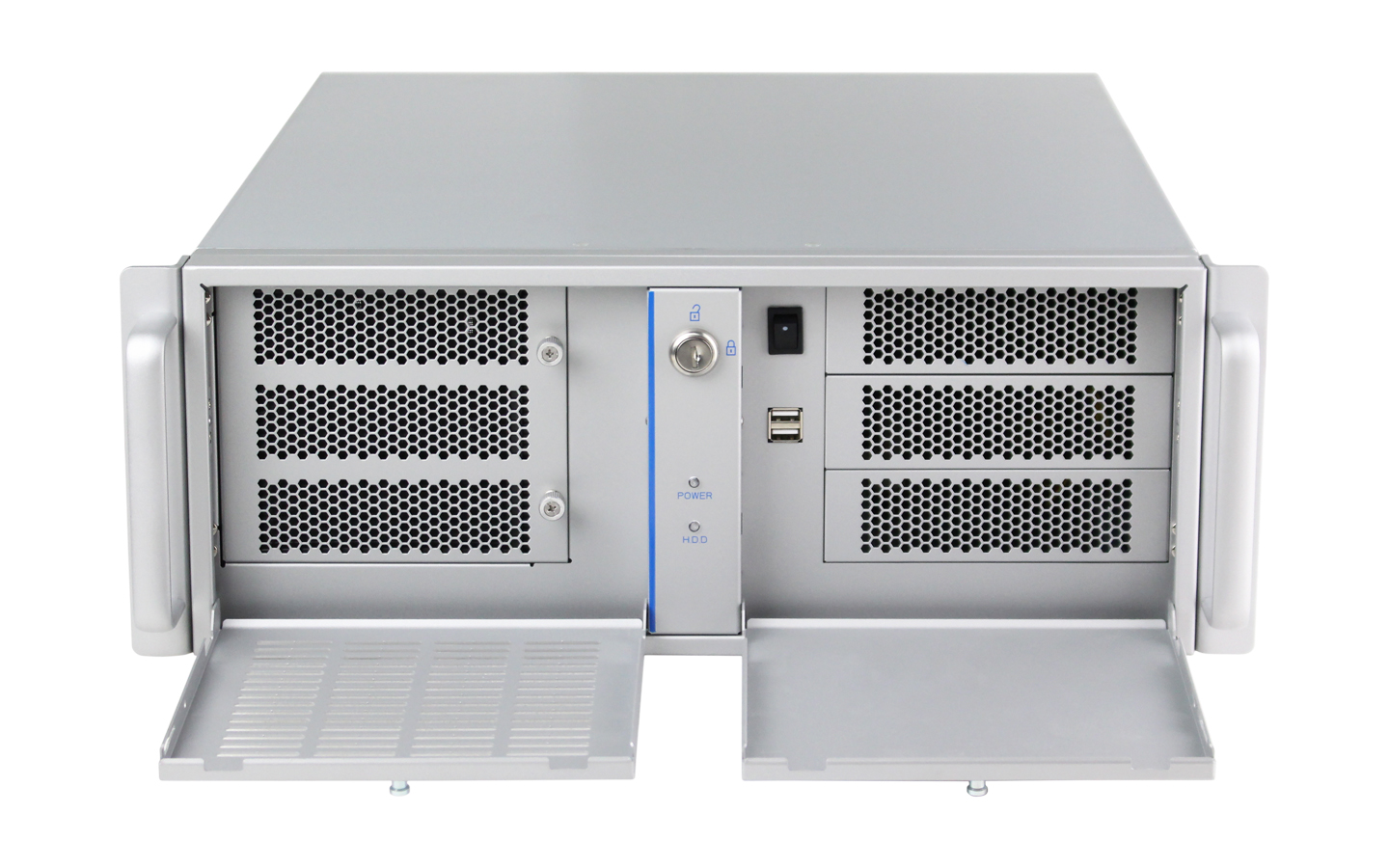

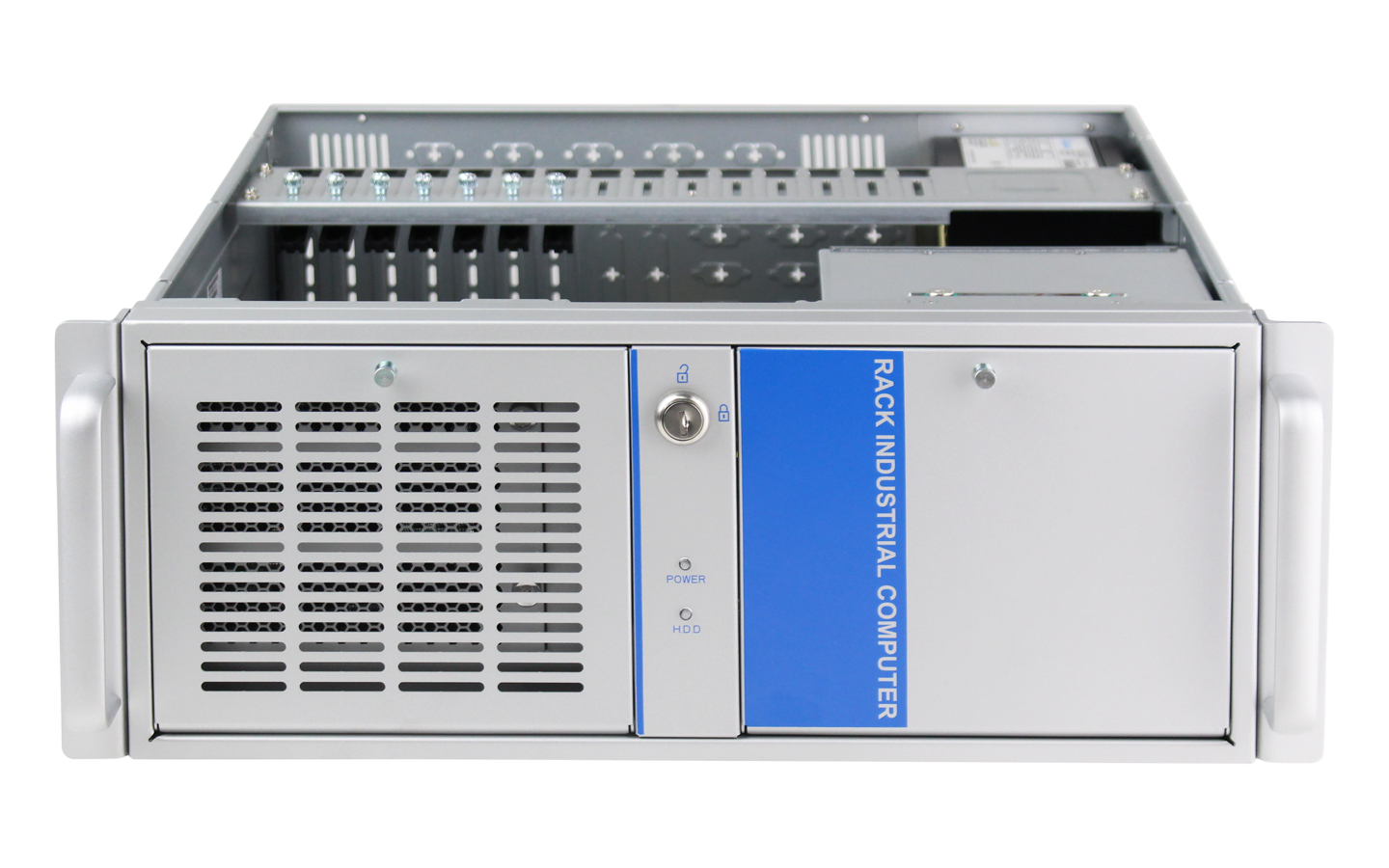

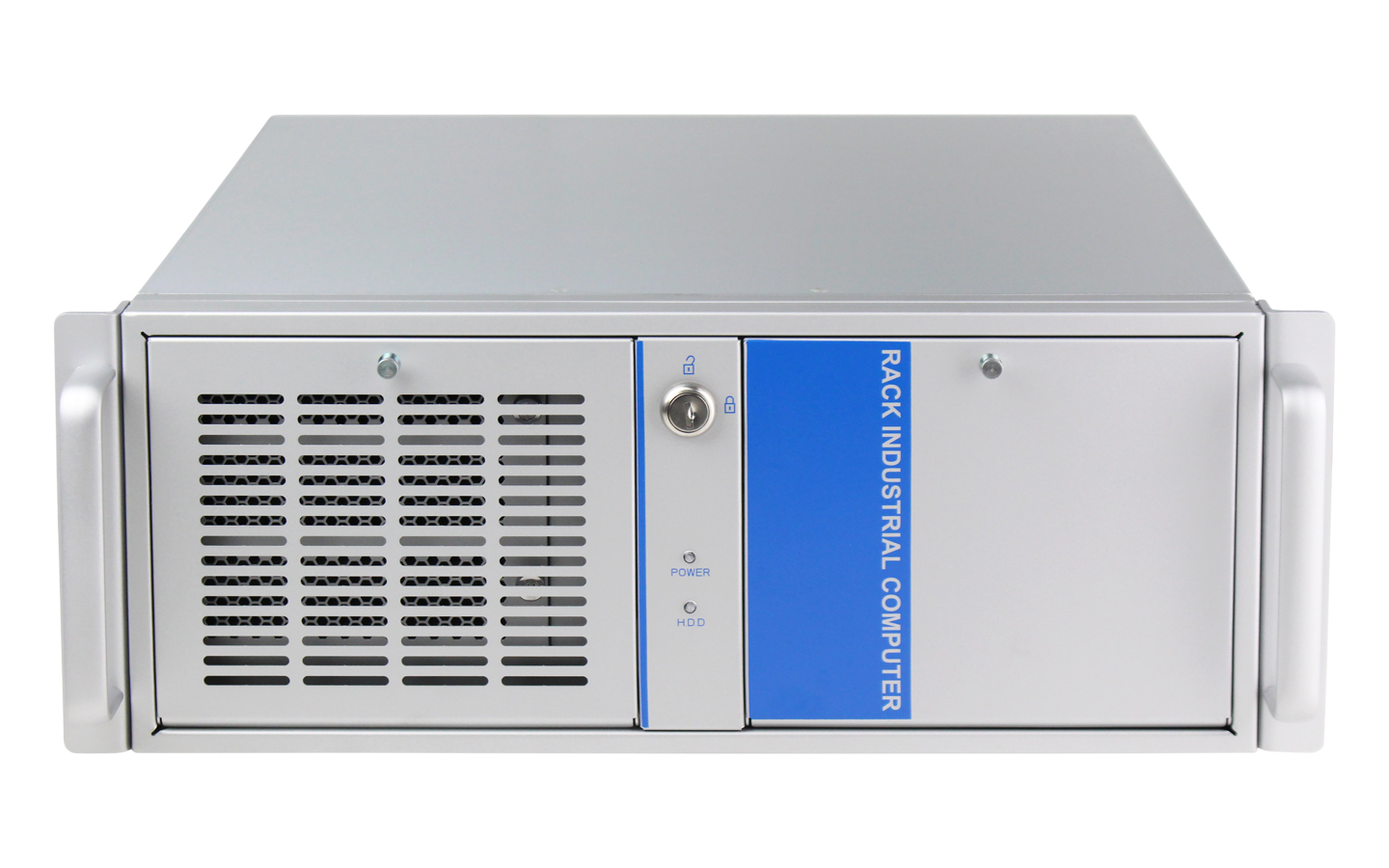

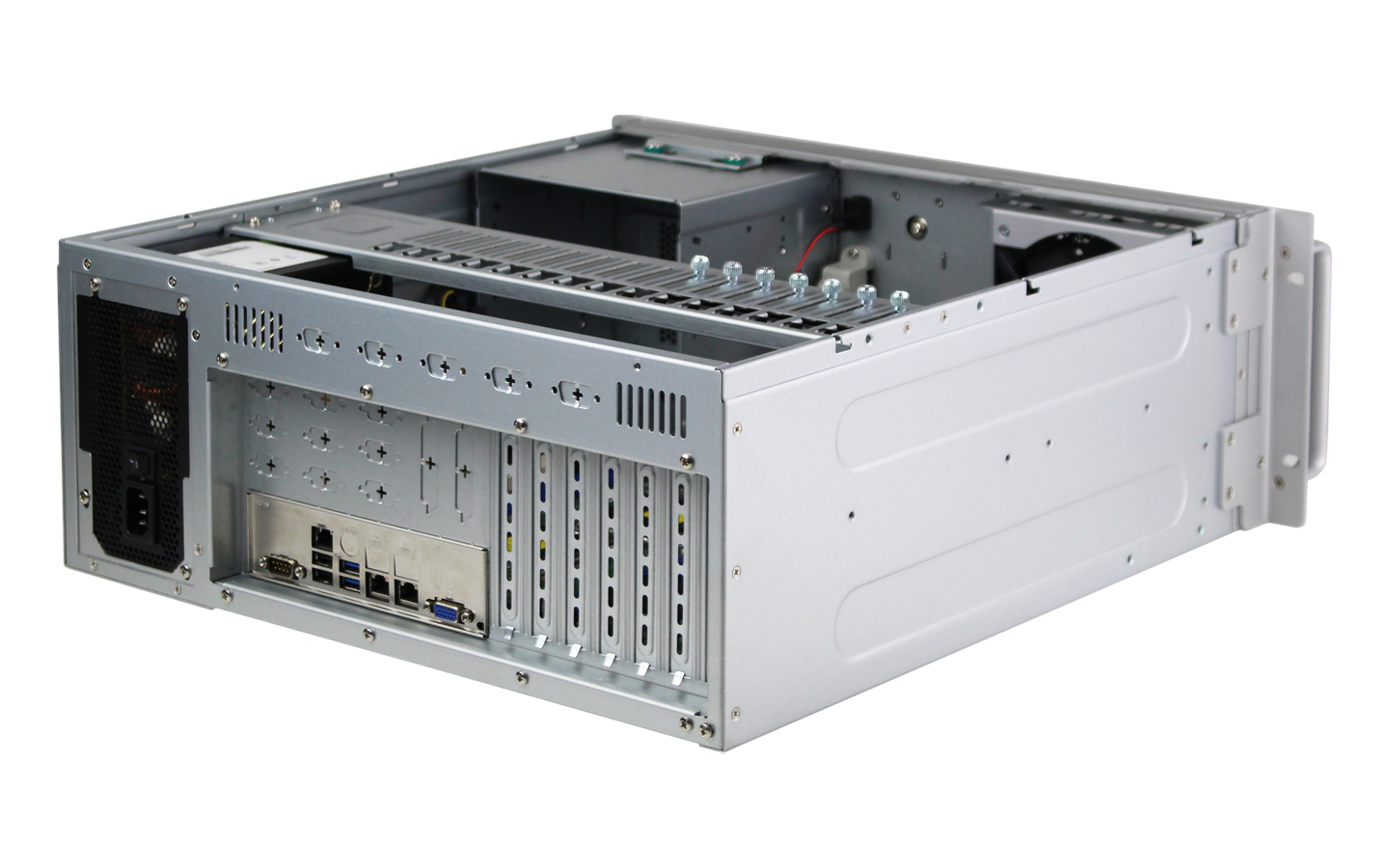

IPC470 industrial control chassis is produced with 1.0mm SGCC full mold. The chassis supports standard ATX motherboards, supports 7 full-height PCI/PCIE expansion slots, can be installed with standard ATX power supplies, and supports 1 3.5-inch mechanical hard drive and 1 2.5 inch SSD. It is suitable for industrial control, intelligent transportation, mechanical automation, Internet of Things, security monitoring and other fields.
| Component | Specifications |
| Dimensions (mm) | 471.4(L)*430(W)*176(H) |
| Material | environmentally friendly, fingerprint resistant 1.0mm SGCC |
| Surface treatment | The outer surface is sprayed, but the internal parts are not sprayed |
| Drivers bay | 1* 3.5" hard drive slot（1* 2.5" SSD/HDD drive bays） |
| CD-ROM bays | 3* 5.25" CD-ROM bays. |
| Cooling Fan | 1* 12025B fans are standard |
| Motherboard | motherboard with standard size of 12"×9.6" and below |
| Expansion | 7 full-height PCI/PCIE expansion slots |
| External interface | 2 front USB 2.0 |
| PSU form factor | ATX standard power supply or redundant power supply |
| System control | POWER LED*1，HDD LED*1，POWER SW*1 |
| Application | industrial control, intelligent transportation, mechanical automation, Internet of Things, security monitoring and other fields |
