Product model:TOP4503P black

Product category:4U industrial chassis

Product Introduction:

Application field:

Overview
Technical Parameter
Dimension
Data download

Overview

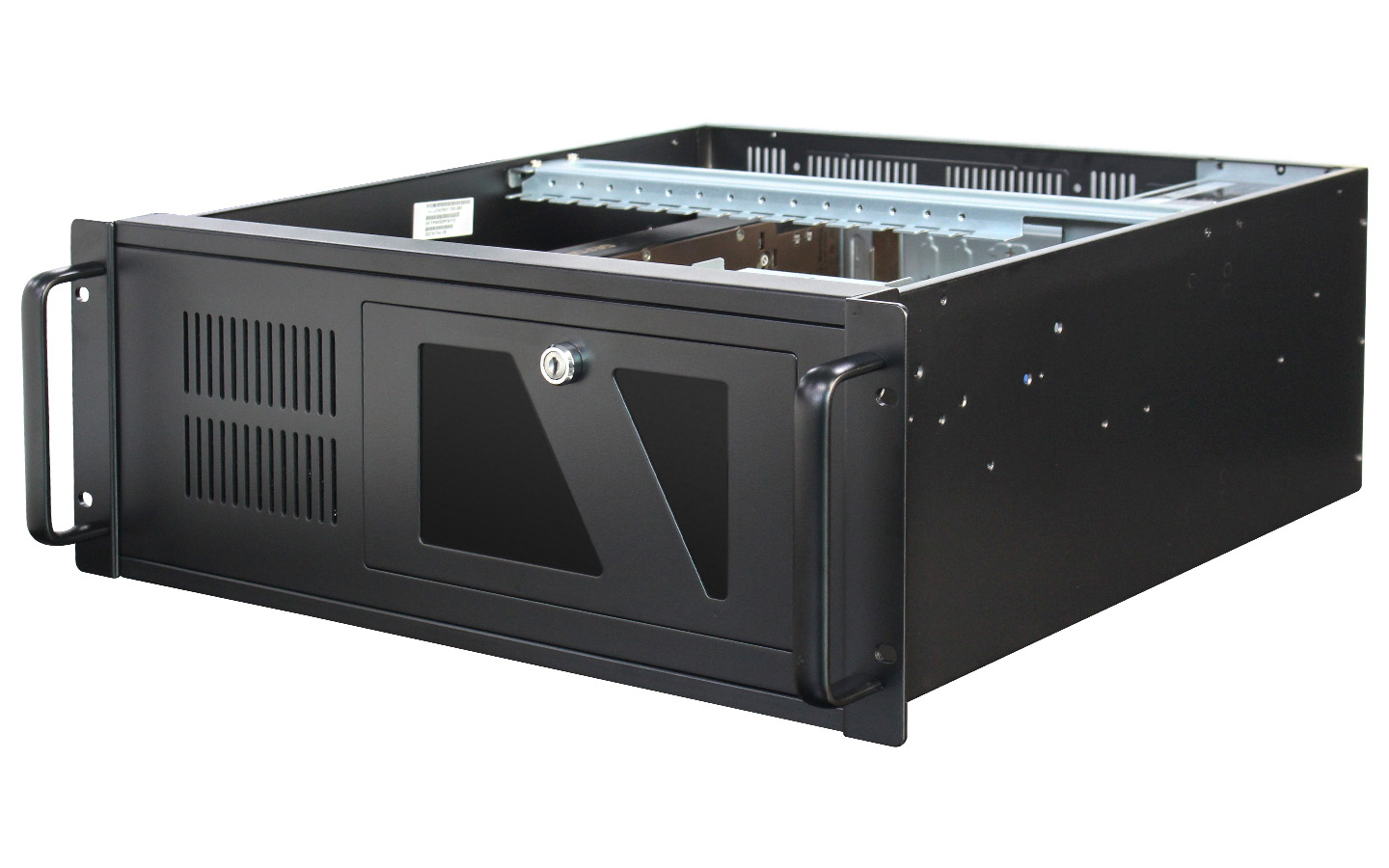

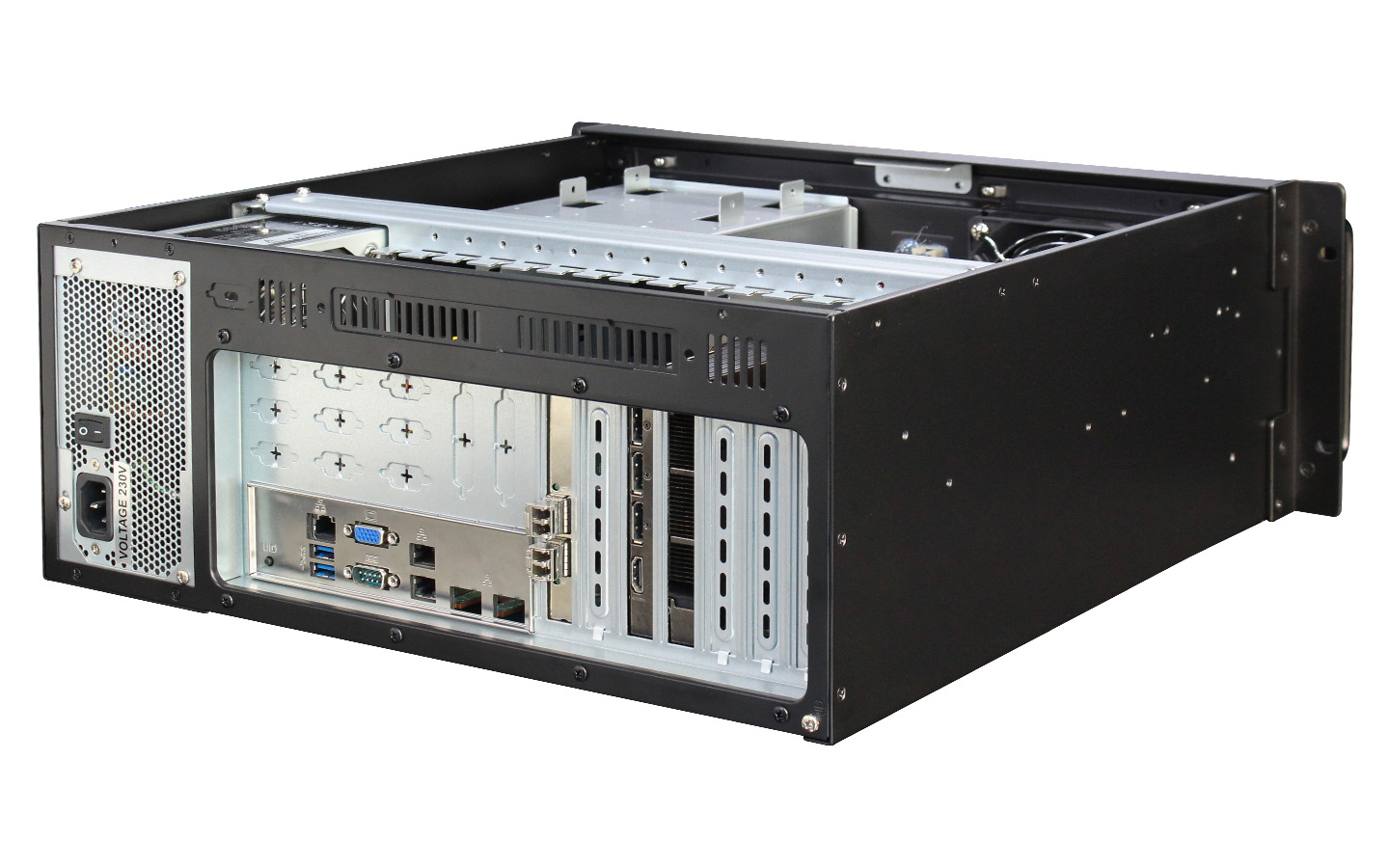

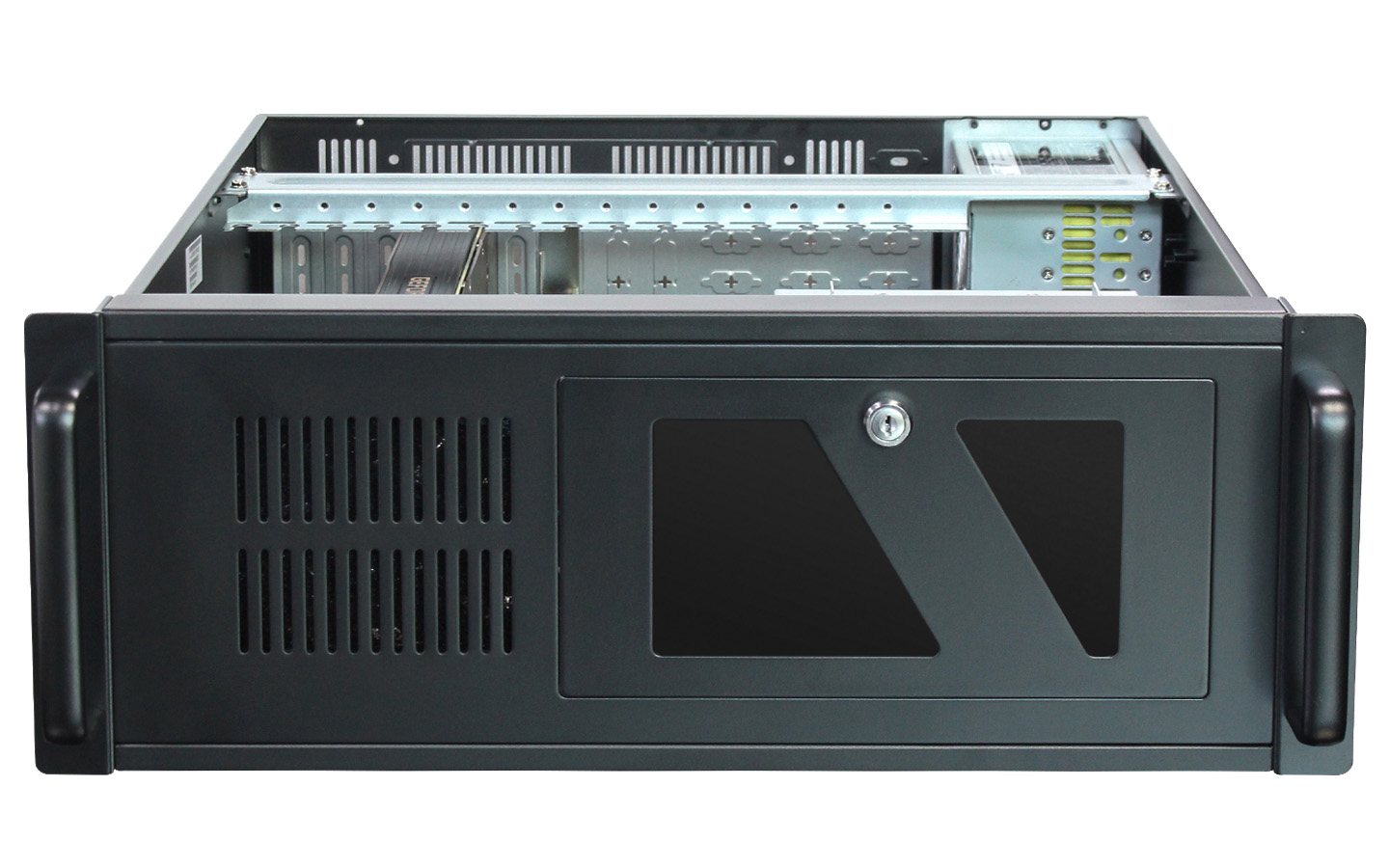

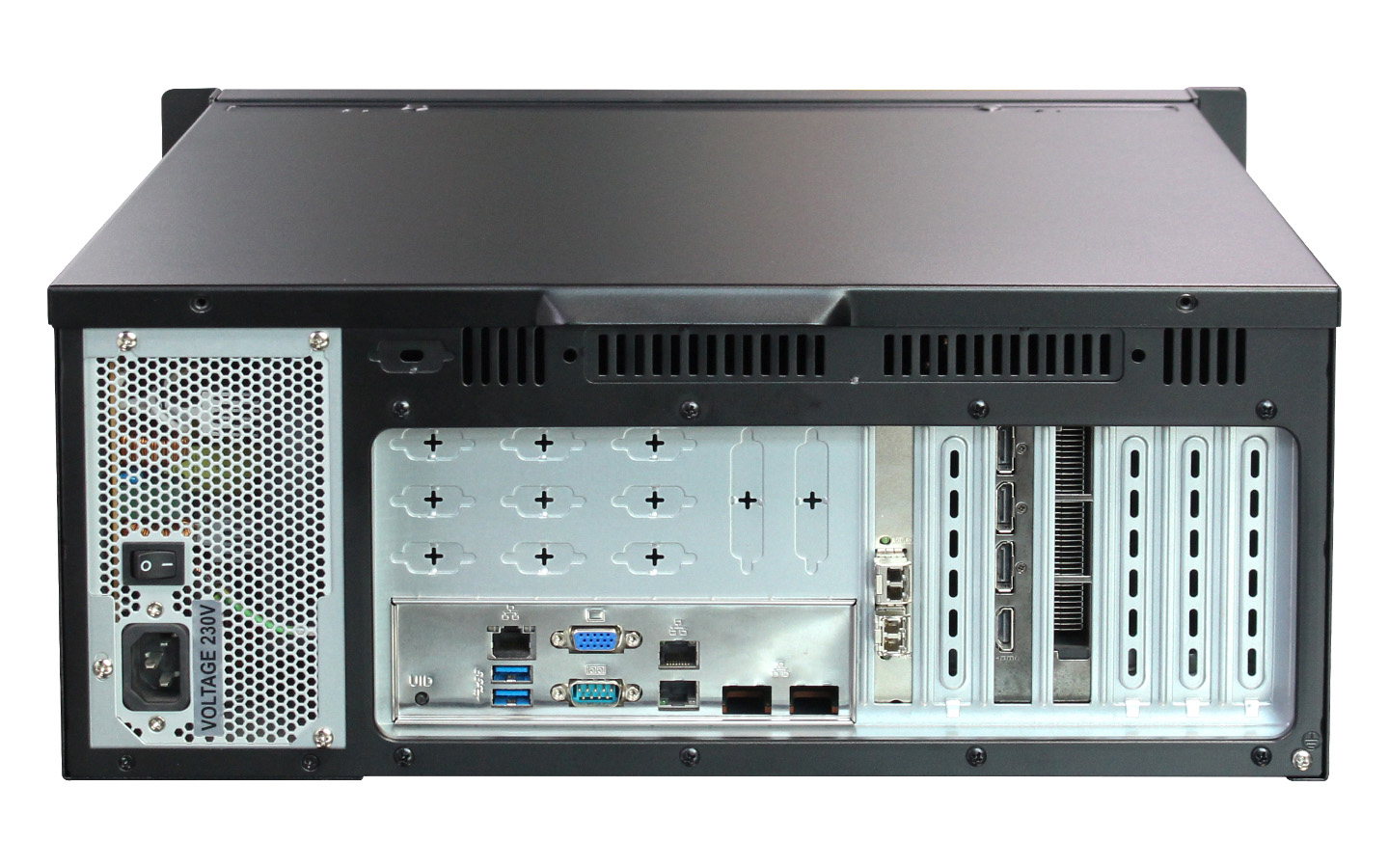

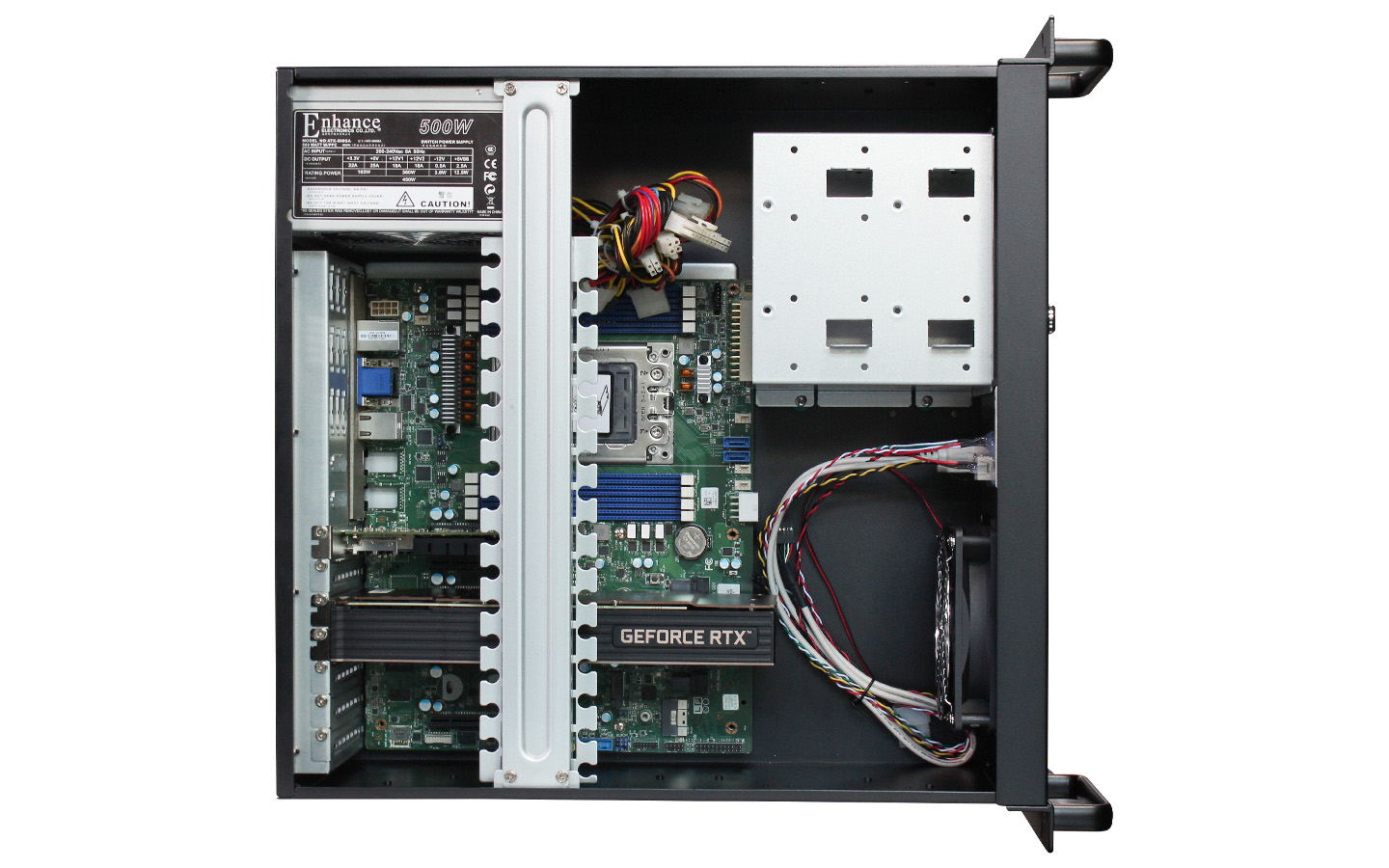

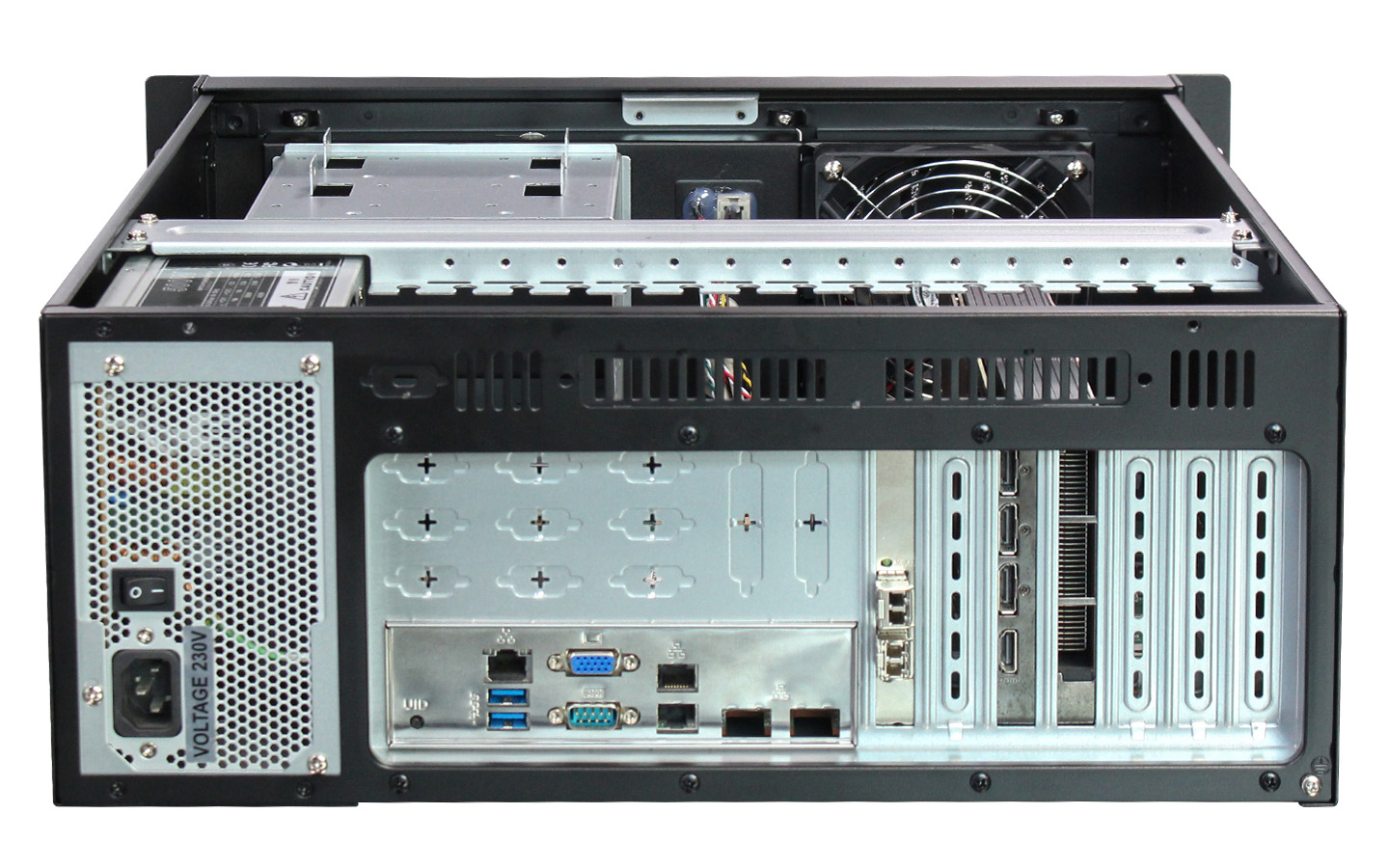

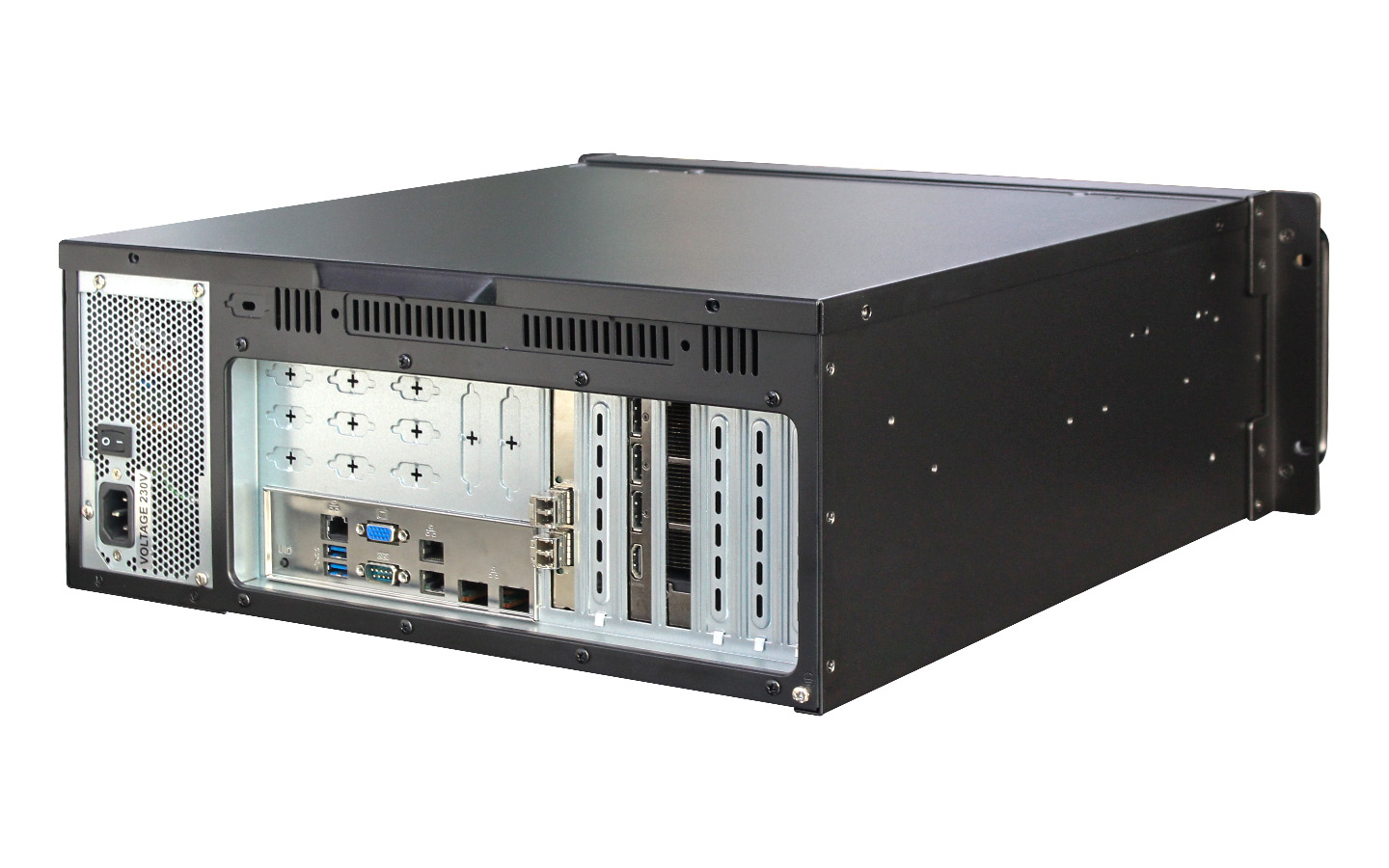

TOP4503P is a fully molded 4U rack-mounted industrial control chassis. The outer surface of the chassis is completely sandblasted black. The chassis can be installed with standard ATX/Micro-ATX motherboards and supports four 3.5-inch hard drives and one 2.5-inch SSD. Supports standard ATX power supply, compatible with 7 PCI/PCIE expansion slots, supports 2 5.25-inch large optical drives, comes standard with 1 12 cm fan, and the rear window is designed with 9 DB9 and 2 DB37 knock-out interfaces for easy expansion. It is widely used in industrial control, intelligent transportation, mechanical automation, Internet of Things, security monitoring and other fields.

Technical Parameter

Component	Specifications
Dimensions	depth 450mmwidth 427mmheight 177mm, standard rack-mounted 4U industrial control chassis
Material	environmentally friendly, fingerprint resistant 1.2mm SGCC
Surface treatment	The internal accessories and rear window are not sprayed, and the rest are sprayed powder black.
Drivers bay	4* 3.5" hard drive slots (compatible with 1 2.5" SSD)
CD-ROM	2* front 5.25" optical drive slots (compatible with 1* 3.5" hard drive slot or 1 2.5" SSD)
PSU form factor	Standard ATX power supply
Cooling Fan	1* 12025fan
Expansion	7 PCI/PCIE full-height expansion slots
External interface	2 * USB 2.0, optional USB 3.0
motherboard	Supports motherboards with dimensions of 12"×9.6" and below
System control	POWER LED1, HDD LED1, RESET SW1, POWER SW1
Application	used in industrial control, security monitoring, mechanical automation, intelligent transportation, Internet of Things and other fields
