Indusrrial control, IOT, machine automation, communication, etc.
| Components | Specification |

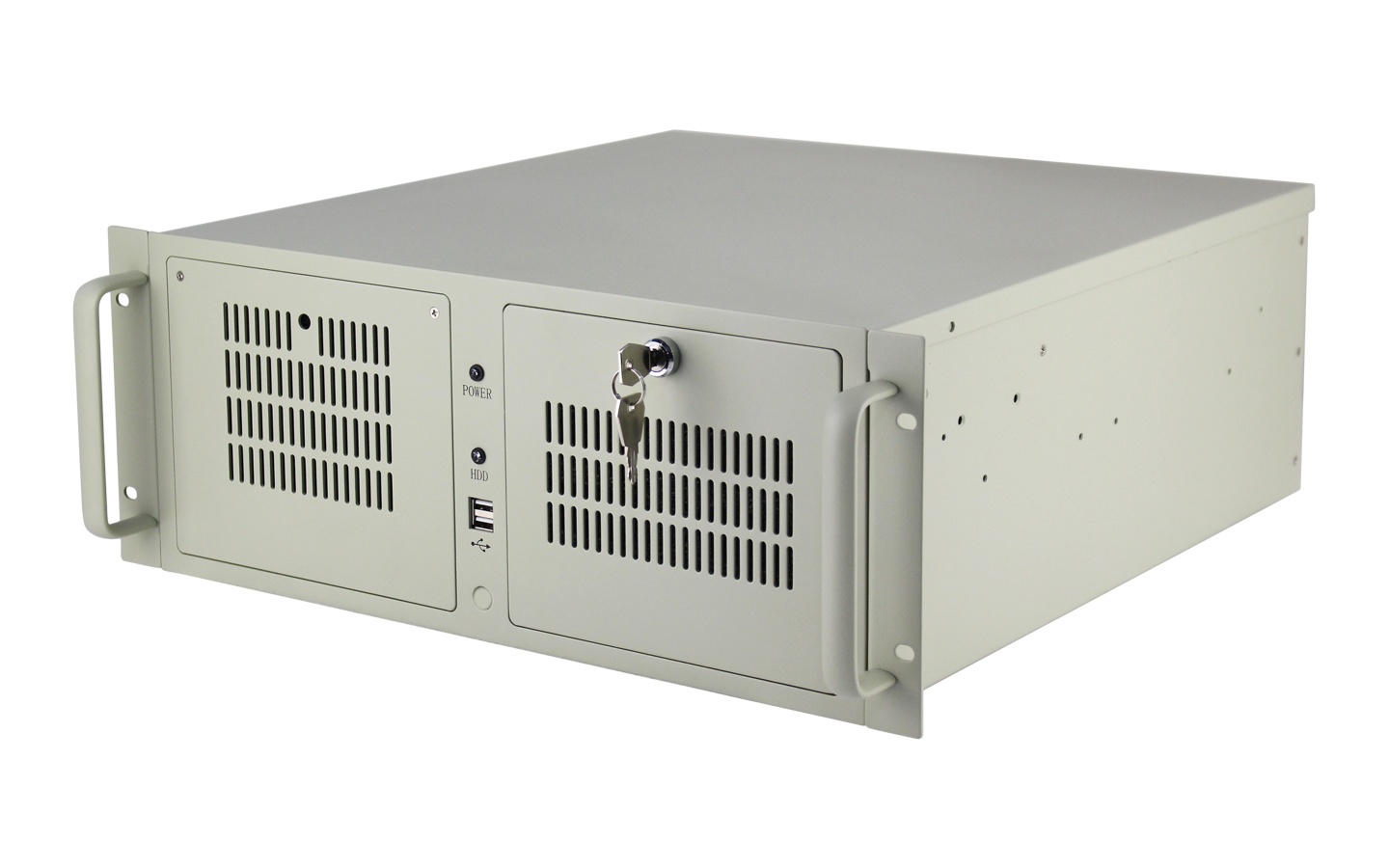

| Dimensions(WxDxH) | 427mm x 450mm x 177mm, standard 19" rackmount chassis. |
| Materials | Quality fine 1.2mm SGCC steel. |
| Color | Grey. |
| Drivers bay | 1 x 3.5" HDD/FDD drive bay, 3 x 5.25" CD-ROM bays. |
| Cooling Fan | 1 x 120mm fan on front. |
| PSU form factor | Standard PS2 power supply or redundant power supply. |
| M/B form factor | Support MAX ATX 12" x 9.6" motherboard. |
| Epansion space | 7 PCI expansion slots or 14 PCI expansion slots. |
| Connector | Two front accessible USB2.0 ports. |
| System Control | POWER LED*1, HDD LED*1, RESET SW*1, POWER SW*1. |
| Applicarion | Indusrrial control, IOT, machine automation, communication, etc. |
| Product Features: | |
1.Conformed with EMC design standard to prevent from electromagnetic interference. | |
| 2.Support motherboard size up to ATX 12" x 9.6", and 1 x 3.5" HDD/FDD drive bay, 3 x 5.25" CD-ROM bays, Standard PS2 power supply or redundant power supply. | |
| 3.The chassis has good ventilation system 1 x 120mm fan on front to make sure the system work steadily. | |
