Product model:F4808-360

Product category:4 GPU AI inference chassis

Product Introduction:

The Toploong F4808-360 server chassis supports a 12"*13" motherboard.

Application field:

AI, edge computing, deep learning, rendering, GPU computing

Overview
Technical Parameter
Dimension
Data download

Overview

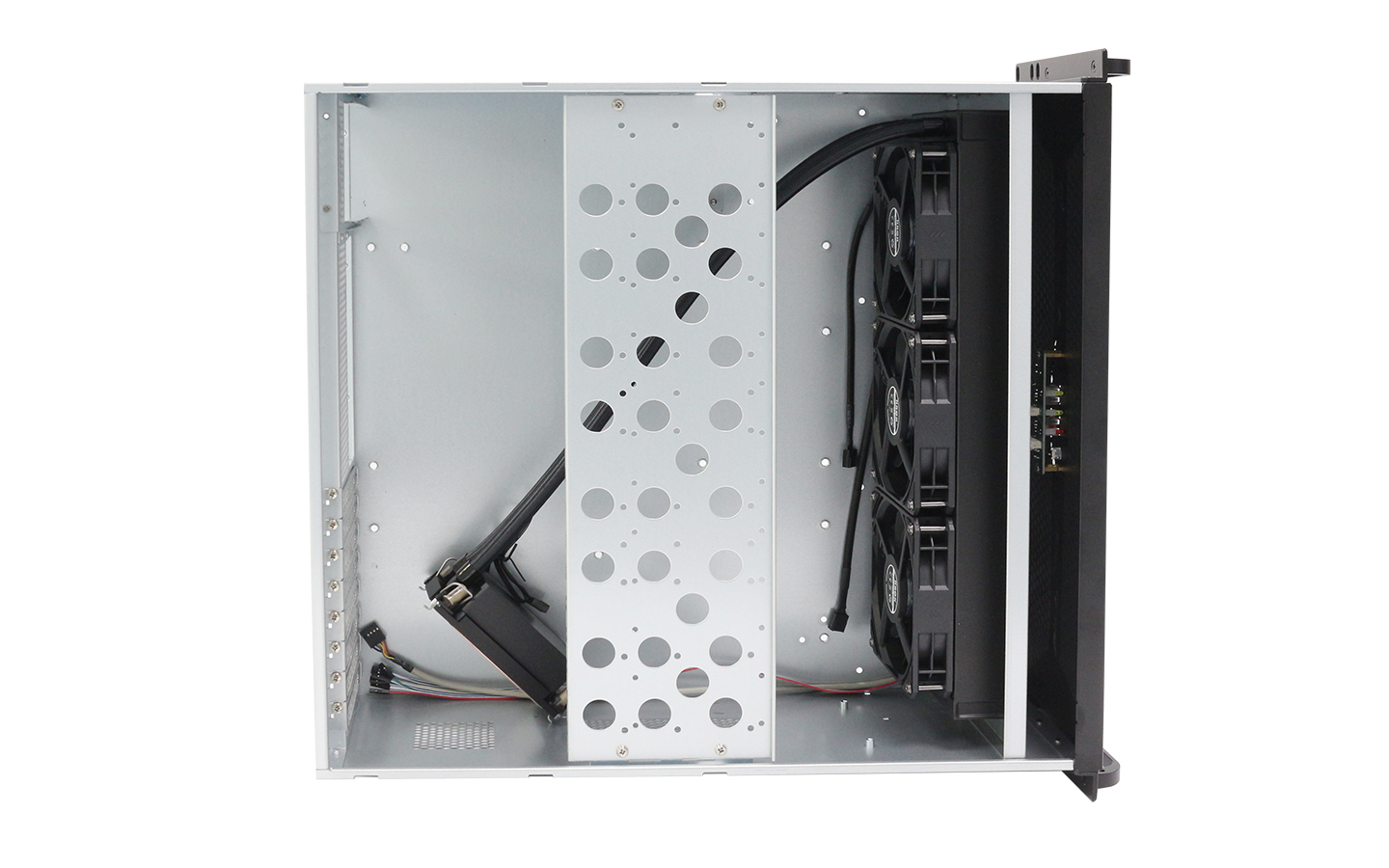

The Toploong F4808-360 server chassis supports a 12"*13" motherboard. One 360 liquid cooling radiator for the radiator has a good cooling effect. It supports both ATX power supplies and CRPS power supplies. It supports 8 standard PCIE expansion slots, and can support up to 3 or 4 double-width GPUs at most. It also supports 4 built-in 2.5" SSDs, and is widely applied in fields such as rendering and GPU computing.

Technical Parameter

Components	Specification
Dimensions(mm)	D480mm × W437.5mm × H176.5mm
Materials	China Steel Corporation (CSC), environmentally friendly, fingerprint-resistant, 1.0mm thick, SGCC (Hot-Dip Galvanized Steel Coil)
Hard disk bays	4 built-in 2.5" SATA/U.2 hard disk bays
FAN	It comes standard with one 360 liquid cooling radiator, and one 8038B ball-bearing fan is optionally available for the rear window.
Expansion slots	8 full-height PCI/PCIE expansion slots, which can support 3 or 4 double-width GPUs.
Suitable motherboard	Motherboards with a standard size of 12"*13" or smaller.
USB	2 front-mounted USB 2.0 interfaces
System Control	1Power LED，1HDD LED，2NIC LED，1Power SW，1*Reset
power supply	It supports both ATX power supplies and CRPS redundant power supplies.
color	The handles and ear-mounted brackets are sandblasted and oxidized to a shiny black color. The front panel components are spray-painted with a textured black finish, and the remaining steel plates remain in their original color.
Application fields	Fields such as AI (Artificial Intelligence), edge computing, deep learning, rendering, and GPU (Graphics Processing Unit) computing.
