G-97810-P4 AI inference chassis supports 10 3.5-wide gaming version GPU cards, optional front 2*2.5-inch SATA or NVME backplane/front 12 3.5-inch hard drive bays, standard 12 12038B The fan position has good heat dissipation performance. The chassis is compatible with E-ATX/ATX motherboards of 12"*13" and below sizes. It supports 5 standard CRPS power modules and 4+1 power supply mode, which is stable and reliable. Products are widely used in big data, cloud computing, HPC, AI, rendering, deep learning, edge computing and other scenarios. They perform well in terms of GPU computing performance, storage expansion capabilities, system stability, etc., and can meet the needs of emerging industries such as artificial intelligence to the greatest extent. development and application in the field.
| Component name | Detailed specifications and parameters |
| Dimensions(mm) | 780 (L) * 437.6 (W) * 397 (H) |
| Main material | Magang (environmentally friendly, fingerprint resistant 1.2mm SGCC) |
| Surface treatment | The front panel assembly is sprayed with sand grain black, and the rest is natural color |

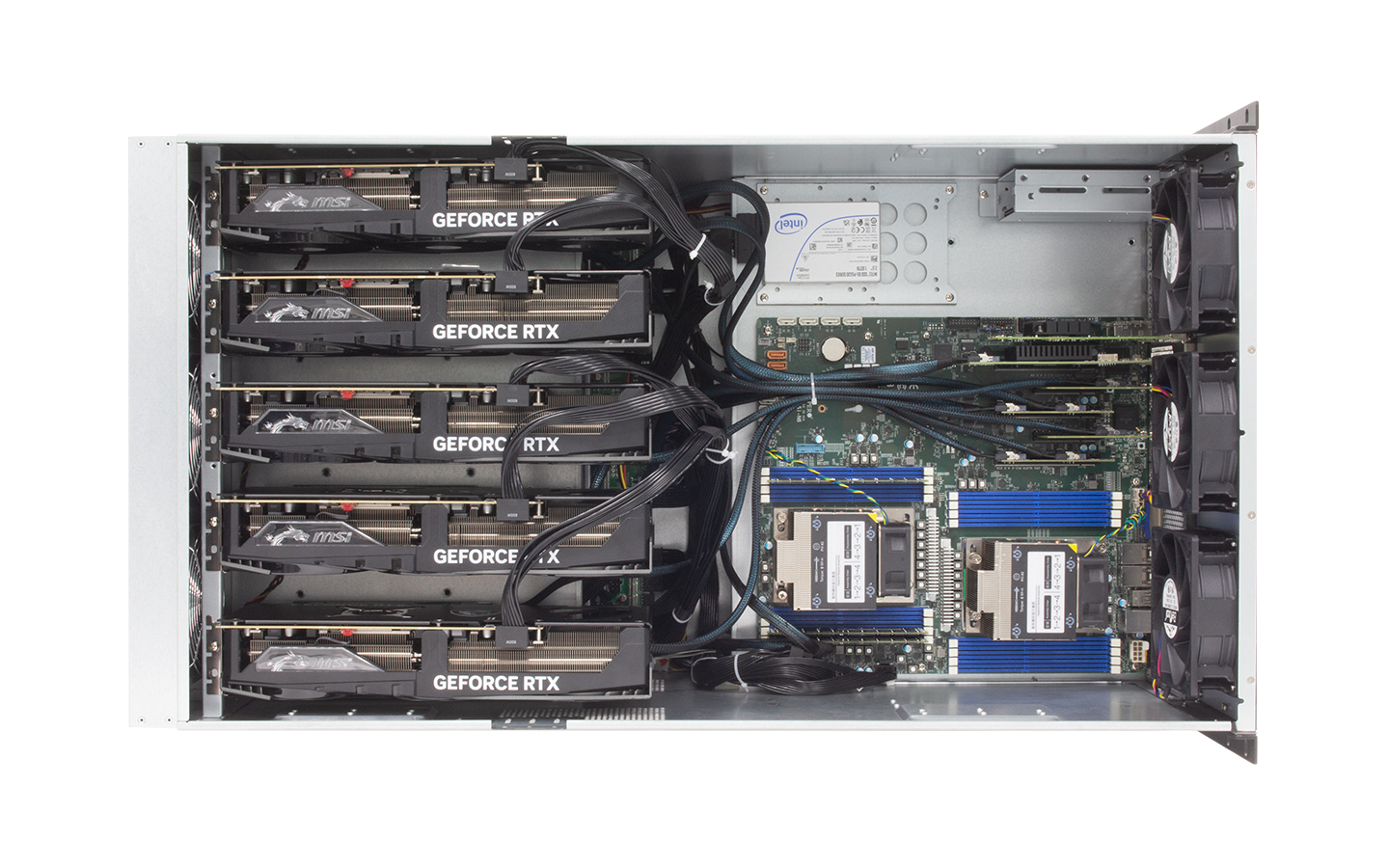

| GPU | Supports 10 3.5-wide gaming version GPU cards (length 350MM) |
| Hard disk space | Optional front 2*2.5-inch SATA or NVME backplane/front 12 3.5-inch hard drive bays |
Fan position | Standard built-in 12 12038 hot-swappable fan positions (high air pressure/high air volume) |
| Motherboards | Standard EATX or lower motherboards/support Super Micro/Gigabyte/Taian (15.2*13.3) motherboards. The motherboard needs to have at least 5 PCIE4.0 X16 slots or 10 PCIE4.0 X8 slots |
| I/O | 11 full-height PCI/PCIE expansion slots, vertical insertion |
| External interface | External interface 2 * USB 3.0 |
| System control | Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2*1, UID SW*1, UID LED*1, Power Fail LED*1" |
| Power supply | Supports standard CRPS power module, 4+1 power supply mode |
| PCIE channel | 10*PCIE4.0 X8 |
| Front VGA | optional according to motherboard |
| Applicable fields | AI reasoning, rendering, HPC, deep learning and other fields |
